02-21-2024 05:59 AM
As per CSDM 4.0, should we not populate any data in 'Service' [cmdb_ci_service] table I believe?
We have a new Vancoucer instance with Demo data loaded and I see there are many records in cmdb_ci_service table.
Is ServiceNow still using wrong Demo data? or am I missing something?
Solved! Go to Solution.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
02-21-2024 07:08 AM
Your statement is correct but keep the hierarchy in mind.

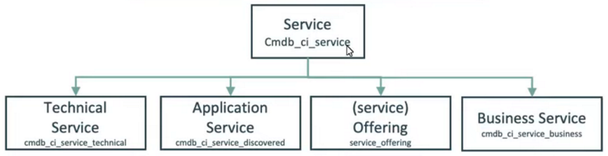

According the table hierarchy you´ll "see" all Business- / Technical Services / etc. in the [cmdb_ci_service] table. This is also true even if you using the correct Business Service table: [cmdb_ci_service_business]
Please use latest SN products like the SPM Service Builder or the Digital Portfolio Management Plugin to put your records into the new extended tables by default.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
02-21-2024 07:08 AM
Your statement is correct but keep the hierarchy in mind.
According the table hierarchy you´ll "see" all Business- / Technical Services / etc. in the [cmdb_ci_service] table. This is also true even if you using the correct Business Service table: [cmdb_ci_service_business]
Please use latest SN products like the SPM Service Builder or the Digital Portfolio Management Plugin to put your records into the new extended tables by default.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
02-21-2024 07:30 AM
CSDM requires us to populate application services in either the cmdb_ci_service_auto table or the cmdb_ci_service_discovered table.
An important thing to note is that when a CI record is created in either the above tables, a CI record also gets created in the cmdb_ci_service table.
CI records can still be created in the cmdb_ci_service_auto table however, eventually you will need to use the button "Convert to Application Service" on the CI form to have it populated as an Application Service in the cmdb_ci_service_auto and cmdb_ci_service_discovered tables. If you go this route, the CI will still exist in the cmdb_ci_service_auto table.
If you convert a CI from the cmdb_ci_service_auto table, the CI created in the cmdb_ci_service_auto and cmdb_ci_service_discovered tables will be classified as Calculated Application Service CIs.
If you create an application service CI in either the cmdb_ci_service_auto or the cmdb_ci_service_discovered tables, they will be classified as Mapped Application Service CIs.
I found all this out through testing in Sandbox which I suggest you try.
There is a difference between Mapped vs Calculated Application Services, below are a few community forum links I saved as a favorite for reference.
Application Services: How to use them?
Thanks,
l337
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
02-21-2024 11:43 AM
This statement is wrong "CSDM requires us to populate application services in either the cmdb_ci_service_auto table"
Its just a parent table/dummy table. Nothing should be created directly on that table.
I got above response from ServiceNow when I raised a support ticket.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
02-21-2024 12:45 PM
Hello Suggy,
If nothing should be created directly on the cmdb_ci_service_auto table why does ServiceNow allow us to create new Application Service records on that table? If it weren't allowed it should not be possible but it is possible.
