Configure : Parent/Child relationship for Problem table

Kingstan M
Kilo Sage

Hello SNC,

I have an requirement that - To add Parent/Child relationship for Problem table.

I.e., When i add list of problems in the related list problem tab then all those will be considered as child problem and thus when i open any child problem record then the parent problem number should be published in the related records >> parent problem.

Any advice?


1 ACCEPTED SOLUTION

Mahendra RC
Mega Sage

Hello Kingstan,

To achieve this you can go to System Definition --> Relationships. Click on New button:

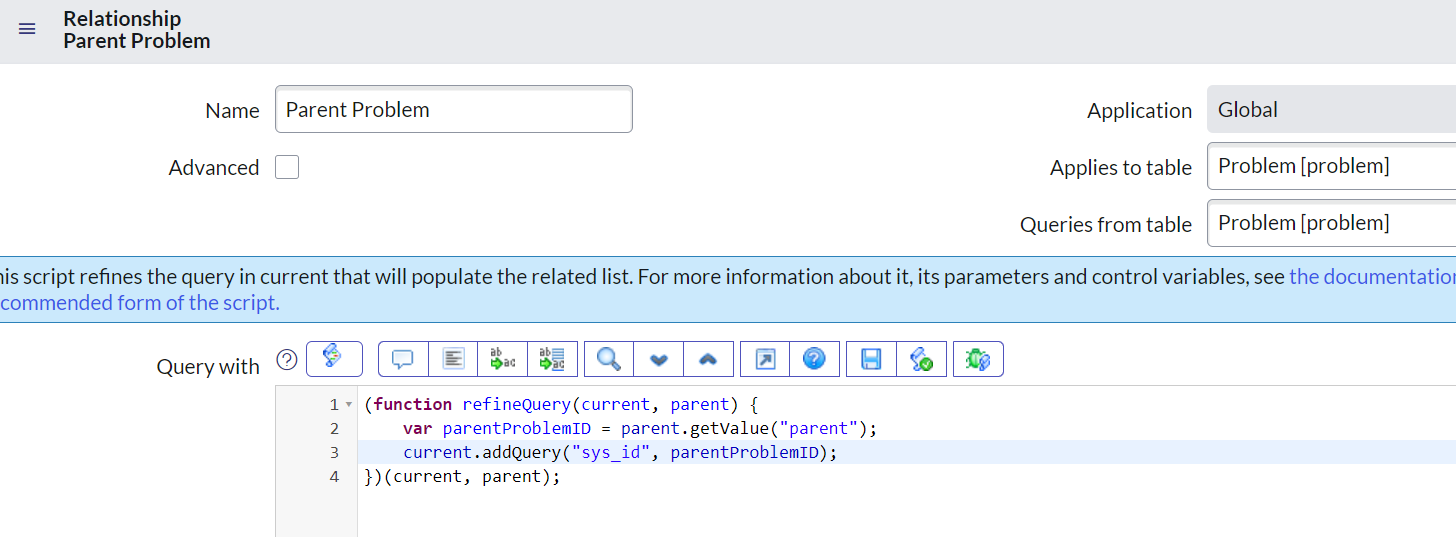

Create a new record as shown below:


Put the below script in Query with field on your record :

(function refineQuery(current, parent) {
	var parentProblemID = parent.getValue("parent");
	current.addQuery("sys_id", parentProblemID);
})(current, parent);

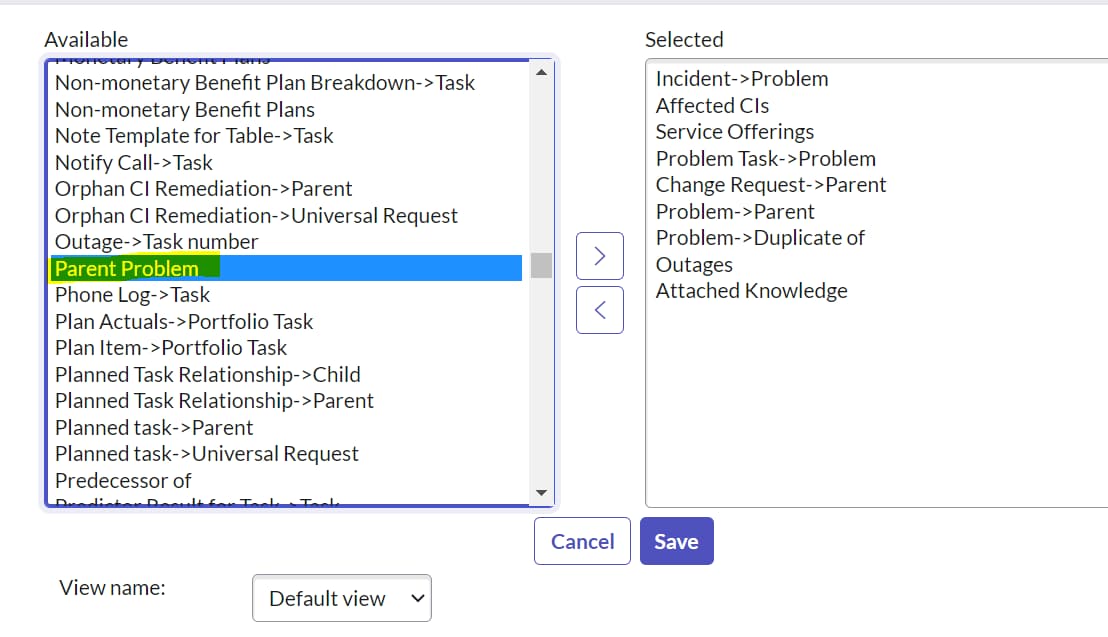

Go to the problem table and open any child problem record. Right click on form header go to Configure --> Related Lists

Search Parent Problem under Available section and move it to selected section and click on Save


You will now see the Parent Problem related list which will show the Parent Problem.

Please mark my respsone as helpful/correct, if it answer your question.

Thanks

View solution in original post

11 REPLIES 11

MrMuhammad
Giga Sage

Hi @Kingstan M

I assume you are using Parent field to build parent/child relationship b/w problems. If so, you can go to Configure > Related list and add Problem -> Parent. This will give you child problems for the current record in the related list.

For displaying parent problems in the list you need to build defined relationship [custom relatedlist]. You can see the documentation here at Create defined related lists | Servicenow Docs

At the bottom of the page you have couple of example codes which can be handy.

Let me know if you have any questions.

Please mark this helpful/correct, if applicable.

Regards,

Muhammad

Regards,
Muhammad

Hi Muhammad, Thanks.

But if you see my screenshot. I have already established parent relationship via related list (See screen-grab at related list). I created on field at the form as Parent problem (See screen-grab at problem form).

Now, My objective is to create parent-child relationship.

i.e., on the related list when i choose a problem it will be child of that parent. Thereby in the form of the child at parent problem field that parent problem should reflect.

Any advice?

@Kingstan M - Please create a Relationship by navigating to System Definition > Relationps.

Below is the configuration:

Name: Name of your choice. This will appear as label on the related list.
Parent: Problem
Child: Problem

Script:


(function refineQuery(current, parent) {

	// Add your code here, such as current.addQuery(field, value);
	current.addQuery('sys_id', parent.parent);

})(current, parent);

Open Problem form, Configure Related list and add "Custom Problem" [name of custom relations we built above].

Now the parent problems will appear on the child problem.

Please mark this helpful/correct, if applicable.

Regards,
Muhammad

Pavankumar_1
Mega Patron

Hi,

please refer below link.

https://community.servicenow.com/community?id=community_question&sys_id=7581136ddbdcdbc01dcaf3231f96191d



Thanks,

Pavankumar

If it helps please click Accept as Solution/hit the Thumb Icon.
ServiceNow Community MVP 2024.
Thanks,
Pavankumar
