Classic Business rules
A business rule is a server-side script that runs when a record is displayed, inserted, updated, or deleted, or when a table is queried.
How business rules work
To configure business rules, you first need to determine when the business rule should run and what action it should take.

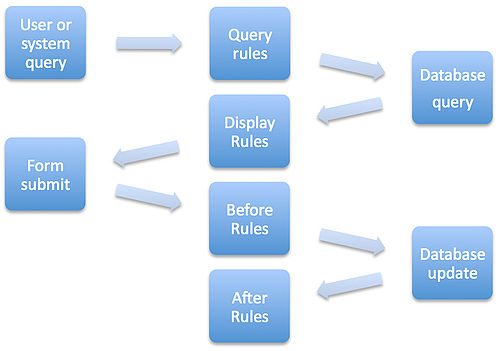

When business rules run
- When to run the business rule in relation to a database operation.
- What record operation the business rule applies to.
| Option | When the rule runs |
|---|---|
| Before | After the user submits the form but before any action is taken on the record in the database. |
| After | After the user submits the form and after any action is taken on the record in the database. |
| Async | After the user submits the form and after the scheduler runs the scheduled job created from the business rule. The system creates a scheduled job from the business rule after the user submits the form but
before any action is taken on the record in the database. Remarque : Newly created business rules will run during upgrades. If a record has an asynchronous business rule that makes decisions based on the data in the record, multiple updates to the record in quick succession can cause the business rule to execute out of order or incorrectly. If multiple async business rules update the same record, the updates performed by one script could be overwritten by another script or made in an unexpected sequence because the order of execution isn't guaranteed. You can use the After option for business rules or System Events as an alternative in these situations. |
| Display | Before the form is presented to the user, just after the data is read from the database. |
- Asynchronous business rules do not have access to the previous version of a record. Therefore, the changes(), changesTo(), and changesFrom() GlideElement methods do not work with async rule script. However, the condition builder and condition field (advanced view) both support the changes(), changesTo(), and changesFrom() methods.
- Business rules do not honor ACLs until you want them to be honored. For more information, see Relationship between Business Rules and Access Control Rules (ACLs)
| Option | When the rule runs |
|---|---|
| Insert | When the user creates a new record and the system inserts it into the database. |
| Update | When the user modifies an existing record. |
| Query | When the user sends a query for a record or list of records to the database. Typically you should use query operation for before business rules. |
| Delete | When the user deletes a record. |
Business rule actions
- Changing field values on a form that the user is updating. Field values can be set to specific values available for that field, values copied from other fields, and relative values determined by the user's role.
- Displaying information messages to the user.
- Changing values of child tasks based on changes to parent tasks.
- Preventing users from accessing or modifying certain fields on a form.
- Aborting the current database transaction. For example, if certain conditions are met, prevent the user from saving the record in the database.
Prevent recursive business rules
Avoid using current.update() in a business rule script. The update() method triggers business rules to run on the same table for insert and update operations, leading to a business rule calling itself over and over. Changes made in before business rules are automatically saved when all before business rules are complete, and after business rules are best used for updating related, not current, objects. When a recursive business rule is detected, the system stops it and logs the error in the system log. However, current.update() causes system performance issues and is never necessary.
You can prevent recursive business rules by using the setWorkflow() method with the false parameter. The combination of the update() and setWorkflow() methods is only recommended in special circumstances where the normal before and after guidelines mentioned above don't meet your requirements.
Business rules in scoped applications
Every business rule is assigned to either a private application scope or to the global scope.
Business rules on specific tables
Most business rules run on a specific table, which is defined in the Table field. You can create business rules on tables in the same scope and on tables that allow configuration records from another application scope.
For tables that are in a different scope than the business rule record, the types of rules are limited.
- You can create a rule where When is async with any of the following options:
- Insert, Update, and Delete database operations. You cannot select Query.
- Set field values actions and scripts (the Script field).
- You can create a rule where When is before with any of the following options:
- Insert, Update, and Delete database operations. You cannot select Query.
- Set field values actions only. You cannot write scripts and you cannot abort the database transaction.
- You cannot create any other types of business rules on tables in a different scope.
Business rules on specific tables cannot be accessed by other business rules or scripts.
Global business rules
Global business rules are business rules where the Table field is set to Global. Global business rules may be accessible on multiple tables and from other scripts, depending on their scope protection. For a global business rule, define the scope protection by setting the Accessible from field:
- This application scope only: prevents applications in a different scope than the business rule from calling this business rule.
- All application scopes: allows any application to call this business rule.Remarque :Global business rules do not support domain separation.
Scripts in scoped business rules
When you write a script in a business rule, you can access:
- Any script includes and global business rules in the same scope as the business rule.
- Script includes and global business rules that allow applications in a different scope to call them. To call functions from another scope, you must specify the scope of the function.
- For business rules in a unique scope, you can access the scoped system APIs only.
Create a business rule
You can create any type of business rule to run when a record is displayed, inserted, updated, or deleted, or when a table is queried.
Pourquoi et quand exécuter cette tâche
Procédure
Global variables in business rules
Predefined global variables are available for use in business rules.
Use the following predefined global variables to reference the system in a business rule script.
| Global variable | Description |
|---|---|
| current | Current state of the record being referenced. See "Prevent null pointer exceptions" below to check for nulls before using this variable. |
| previous | State of the referenced record prior to any updates made during the execution context, where the execution context begins with the first update or delete operation and ends after the script and any referenced business rules are executed. If multiple updates are made to the record within one execution context, previous will continue to hold the state of the record before the first update or delete operation. Available on update and delete operations only. Not available on async operations. See "Prevent null pointer exceptions" below to check for nulls before using this variable. |
| g_scratchpad | Scratchpad object is available on display rules, and is used to pass information to the client to be accessed from client scripts. |
| gs | References to GlideSystem functions. |
The variables current, previous, and g_scratchpad are global across all business rules that run for a transaction.
Prevent null pointer exceptions
if (current == null) // to prevent null pointer exceptions.
return; Define variables
User-defined variables are globally scoped by default. If a new variable is declared in an order 100 business rule, the business rule that runs next at order 200 also has access to the variable. This may introduce unexpected behavior.
To prevent such unexpected behavior, always wrap your code in a function. This protects your variables from conflicting with system variables or global variables in other business rules that are not wrapped in a function. Additionally, variables such as current must be available when a function is invoked in order to be used.
var now_GR = new GlideRecord('incident');
now_GR.query();
while(now_GR.next()) {
//do something
}myFunction();
function myFunction() {
var now_GR = new GlideRecord('incident');
now_GR.query();
while(now_GR.next()) {
//do something
} }Use business rules and client scripts to control field values
Implement both business rules and client scripts for a field to enable users to set record values properly using both forms and lists, and to see immediate changes to the values in forms as edits are made.
The problem with using only a client script or a business rule to control updates to a field is that fields can be changed on either a form or a list. Client scripts and UI policies run on forms only (client-side) and do not apply to list editing. Allowing list editing with client scripts running on fields in a form can result in incorrect data being saved to the record. For systems in which client scripts or UI policies apply to forms, either disable list editing or create appropriate business rules or access control to control the setting of values in the list editor. A side effect of this is that security measures implemented in client scripts are easy to circumvent. The user only needs to edit the field in a list.
Business rules on a form are not dynamic, the user must update the record for the change to be seen. This makes using client scripts the preferred method for controlling field values on forms.
When using both a business rule and client script to control field values, the update behavior is the same across the system. This means that updated values are not different depending on whether a list of form is used to make the change. This means that the same functionality must be implemented twice, once in a client script and once in a business rule or access control.
Example: Use a business rule to create email addresses during user record import
An organization has a client script that sets the email address for a user to first.last@company.com. Administrators do this so they can see the email address immediately when they enter the user's information. The administrator then performs a bulk import of users from a spreadsheet containing the users' first and last names. The expectation is that each user's email address will be set automatically, as they are when they edit the form. Since the client script runs only on the form (the interface to the record), it has no effect on data imported into the record from outside that interface, and no email addresses are created. To solve this problem, the administrator implements a business rule that runs when the import occurs and creates the email addresses.
Example: Prevent list edit for a field that is not editable in the form
An organization wants to hide the Priority field on an incident form if the assignment group is Development. They create a UI policy on the incident form to do this, but their users can still see and edit the Priority field using the list editor. To rectify this, apply an access control to prevent read access to the Priority field when the assignment group is Development.
Using NULL as a field value
The string NULL has a particular role in scripts and is a reserved word.
The reserved word is NULL in all capital letters. A field with the value Null or null, for example, is acceptable. Only use NULL to clear out a particular field.
Any NULL field values obtained from an import set data source are inserted into the staging table as empty field values. You should not use the term NULL as a field value in import set transform maps or anywhere in the First name or Last name fields. Also, do not use NULL in reference fields as the system interprets the value as a string containing the word NULL, not as a reserved word.
Display business-rules
Display rules are processed when a user requests a record form.
The data is read from the database, display rules are executed, and the form is presented to the user. The current object is available and represents the record retrieved from the database. Any field changes are temporary since they are not yet submitted to the database. To the client, the form values appear to be the values from the database; there is no indication that the values were modified from a display rule. This is a similar concept to calculated fields.
The primary objective of display rules is to use a shared scratchpad object, g_scratchpad, which is also sent to the client as part of the form. This can be useful when you need to build client scripts that require server data that is not typically part of the record being displayed. In most cases, this would require a client script making a call back to the server. If the data can be determined prior to the form being displayed, it is more efficient to provide the data to the client on the initial load. The form scratchpad object is an empty object by default, and used only to store name:value pairs of data.
// From display business rule
g_scratchpad.someName = "someValue";
g_scratchpad.anotherName = "anotherValue";
// If you want the client to have access to record fields not being displayed on the form
g_scratchpad.created_by = current.sys_created_by;
// These are simple examples, in most cases you will probably perform some other
// queries to test or get data// From client script
if(g_scratchpad.someName == "someValue") {
//do something special
}Task Active State Management business rule
This business rule determines whether the active field value needs to change based on changes to the State field.
The Task Active State Management business rule is executed when the State is changed for a task record. Its execution order is 50, and it runs before most other task business rules.
- If the state changes from an active state to an inactive state, the Active field is set to false.
- If the state changes from an inactive state to an active state, the Active field is set to true, effectively re-activating or re-opening the task.
It is recommended that you leverage the (current.active.changesTo([true/false]) action in your business rule, as opposed to creating rules on each task table that mark tasks as inactive or active.
Example business rule scripts
Find an example business rule script that helps you with a requirement of your organization.
Compare date fields in a business rule
It is possible to compare two date fields or two date and time fields in a business rule, and abort a record insert or update if they are not correct.
For example, you may want a start date to be before an end date. The following is an example script:
if ((!current.u_date1.nil()) && (!current.u_date2.nil())) {
var start = current.u_date1.getGlideObject().getNumericValue();
var end = current.u_date2.getGlideObject().getNumericValue();
if (start > end) {
gs.addInfoMessage('start must be before end');
current.u_date1.setError('start must be before end') ;
current.setAbortAction(true);
} }This example has been tested in global scripts, and may need changes to work in scoped scripts. In addition to possibly needing API changes, security is more strict in scoped scripts.
- u_date1 and u_date2 are the names of the two date fields. Replace these names with your own field names.
- The first line checks that both fields actually have a value.
- The next two lines create variables that have the dates' numerical values.
- The next two lines create different alert messages for the end user: one at the top of the form and one by the u_date1 field in the form.
- The last line aborts the insert or update if the date fields are not correct.
// Enter all start and end date fields you wish to check, as well as the previous values
// Make sure that you keep the placement in the sequence the same for all pairs
var startDate = new Array(current.start_date,current.work_start);
var prevStartDate = new Array(previous.start_date,previous.work_start);
var endDate = new Array(current.end_date,current.work_end);
var prevEndDate = new Array(previous.end_date,previous.work_end);
// The text string below is added to the front of ' start must be before end'
var userAlert = new Array('Planned','Work');
// Set the number of Previous Days you want to check
var pd = 30;
// Set the number of Future Days you want to check
var fd = 365;
// You shouldn't have to modify anything below this line
var nowdt = new GlideDateTime();
nowdt.setDisplayValue(gs.nowDateTime());
var nowMs = nowdt.getNumericValue();
var pdms = nowMs;
// Subtract the product of previous days to get value in milliseconds
pdms -= pd * 24 * 60 * 60 * 1000;
var fdms = nowMs;
// Add the product of future days to get value in miliseconds
fdms += fd * 24 * 60 * 60 * 1000;
var badDate = false;
// Iterate through all start and end date / time fields
for (x = 0; x < startDate.length; x ++) {
if ((!startDate[x].nil()) && (!endDate[x].nil())) {
var start = startDate[x].getGlideObject().getNumericValue();
var end = endDate[x].getGlideObject().getNumericValue();
if (start > end) {
gs.addInfoMessage(userAlert[x] + ' start must be before end');
startDate[x].setError(userAlert[x] + ' start must be before end');
badDate = true; }
else if ((prevStartDate[x]) != (startDate[x])) {
if (start < pdms) {
gs.addInfoMessage(userAlert[x] + ' start must be fewer than ' + pd + ' days ago');
startDate[x].setError(userAlert[x] + ' start must be fewer than ' + pd + ' days ago');
badDate = true; } }
else if ((prevEndDate[x]) != (endDate[x])) {
if (end > fdms) {
gs.addInfoMessage(userAlert[x] + ' end must be fewer than ' + fd + ' days ahead');
endDate[x].setError(userAlert[x] + ' end must be fewer than ' + fd + ' days ahead');
badDate = true ;
} } } }
if (badDate == true ) {
current. setAbortAction ( true ) ; }Parse XML payloads
Fields in XML format can be parsed with the system's getXMLText function.
ecc_event row, can be parsed with the system's getXMLText
function. The getXMLText function takes a string and an XPATH expression. For
example:var name = gs.getXMLText("<name>joe</name>", "//name");returns the string 'joe'.
var name = gs.getXMLText(current.payload, "//name");For information on XPATH, visit w3schools.
Abort a database action in a before business-rule
In a before business rule script, you can cancel or abort the current database action using the setAbortAction() method.
For example, if the before business rule is executed during an insert action, and you have a condition in the script that calls current.setAbortAction(true), the new record stored in current is not created in the
database. The business rule continues to run after calling setAbortAction() and all subsequent business rules will execute normally. Calling this method only prevents the database action on current object from
occurring.
You can use the isActionAborted() method to determine if the current database action (insert, update, delete) is going to be aborted. isActionAborted() is initialized for new threads and the next() method explicitly sets its value to false.
current.setAbortAction is not honored if executed
in a business rule that is defined in a different scope.Determine the operation that triggered the business rule
You can write a script for a business rule that is triggered on more than one database action.
if(current.operation() == "update") {
current.updates ++; }
if(current.operation() == "insert") {
current.updates = 0; }Use an OR condition in a business rule
An OR condition can be added to any query part within a business rule.
var inc = new GlideRecord('incident');
var qc = inc.addQuery('priority','1');
qc.addOrCondition('priority','2');
inc.query();
while(inc.next()) {
// processing for the incident goes here
}(priority = 1 OR priority = 2) AND (impact = 2 OR impact = 3).
The results of the OR condition are run with two variables,
qc1 and qc2. This allows you to manipulate the query
condition object later in the script, such as inside an IF condition or
WHILE
loop.var inc = new GlideRecord('incident');
var qc1 = inc.addQuery('priority','1');
qc1.addOrCondition('priority','2');
var qc2 = inc.addQuery('impact','2');
qc2.addOrCondition('impact','3');
inc.query();
while(inc.next()) {
// processing for the incident goes here
}Reference a Glide list from a business rule
A field defined as a glide list is an array of values stored in a single field.
Here are some examples of how to process a glide_list field when writing business rules. Generally a glide_list field contains a list of reference values to other tables.
Examples
For example, the Watch list field within tasks is a glide_list containing references to user records.
The code below shows how to reference the field.
// list will contain a series of reference (sys_id) values separated by a comma
// array will be a javascript array of reference values
var list = current.watch_list.toString();
var array = list.split(",");
for (var i=0; i < array.length; i++) {
gs.print("Reference value is: " + array[i]);
}*** Script: Reference value is: 62826bf03710200044e0bfc8bcbe5df1
*** Script: Reference value is: c2826bf03710200044e0bfc8bcbe5d45
*** Script: Reference value is: 5f74e421c0a8010e01ec0d74a7ee2cc6
*** Script: Reference value is: 06826bf03710200044e0bfc8bcbe5d57You can also get the display values associated with the reference values by using the getDisplayValue() method as shown below.
// list will contain a series of display values separated by a comma
// array will be a javascript array of display values
var list = current.watch_list.getDisplayValue();
var array = list.split(",");
for (var i=0; i < array.length; i++) {
gs.print("Display value is: " + array[i]);
}*** Script: Display value is: Abel Tuter
*** Script: Display value is: Ashley Leonesio
*** Script: Display value is: Charles Beckley
*** Script: Display value is: Cherie FuhriUse indexOf("searchString") to find a string in a Glide list
Use indexOf("searchString") to return the location of the string passed into the method if the glide list field, such as a Watch list, has at least one value in it.
If the field is empty, it returns undefined. To avoid returning an undefined value, do any of the following:
- Force the field to a string, such as: watch_list.toString().indexOf("searchString")
- Check for an empty Glide list field with a condition before using indexOf(), such as: if (watch_list.nil() || watch_list.indexOf("searchString") == -1)
Lock user accounts
You can lock user accounts if the user is not active.
// Lock accounts if bcNetIDStatus != active in LDAP and user does not
// have self-service, itil or admin role
var rls = current.accumulated_roles.toString();
if(current.u_bcnetidstatus == 'active' && (rls.indexOf(',itil,') > 0 ||
rls.indexOf(',admin,') > 0 ||
rls.indexOf(',ess,') > 0 )) {
current.locked_out = false; }
else {
current.locked_out = true; }
var now_GR = new GlideRecord("sys_user");
now_GR.query();
while(now_GR.next()) {
now_GR.update();
gs.info("updating " + gr.getDisplayValue());
}Default before-query business rule
You can use a query business rule that executes before a database query is made.
- Name: incident query
- Table: Incident
- When: before, query
- Script:
if(!gs.hasRole("itil") && gs.isInteractive()) {
var u = gs.getUserID();
var qc = current.addQuery("caller_id",u).addOrCondition("opened_by",u).addOrCondition("watch_list","CONTAINS",u);
gs.print("query restricted to user: " + u); }
