Download and install the ODBC driver

Download the ODBC driver (32-bit or 64-bit) that is compatible with your computer's operating system from the ServiceNow Store.

Avant de commencer

• Make sure that you have administrator-level access for the Windows computer that you want to install the ODBC driver on.
• Role required: admin

Pourquoi et quand exécuter cette tâche

If this is the first time that the driver is installed, the installer is in first time installation mode and prompts for the driver to be installed. Install only one version of the ODBC driver on a computer. If the ODBC driver was previously installed, the installer is in upgrade mode and prompts for the removal of the previous driver first.

Remarque :

Versions of the ODBC driver older than 2.1.1 are no longer supported.

Procédure

1. To download the latest ODBC drivers, click the following links:
   • 2.2.0 (32-bit) download
   • 2.2.0 (64-bit) download
2. Download the ODBC driver version compatible with your computer's operating system and the application you are using to query the database.
   The ODBC driver is available as 32-bit or 64-bit. Most applications require the 32-bit ODBC driver even if the operating system is 64-bit.
3. Right-click the executable and select Run as Administrator to launch the installer.

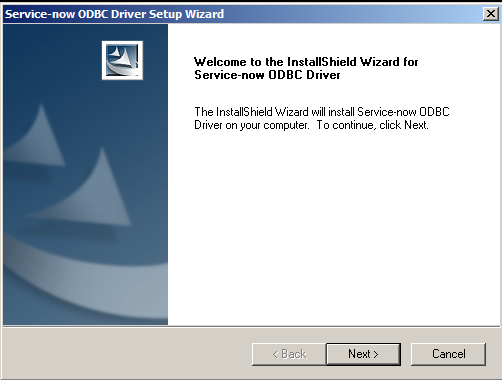

   The ODBC Driver Setup Wizard appears.



4. Click Next.
5. Read and accept the End User License Agreement.
   The installer prompts for the Installation Directory.
6. Select the target directory for installing the ServiceNow ODBC driver.
   The default directory is C:\Program Files\Service-now\ODBC.
7. When the prompted for the Service Name, enter a name to identify the service (for example, ServiceNow_ODBC) and press Next.
8. When prompted for the Java Virtual Machine Location, do the following actions.
   • Browse to and select the directory where the jvm.dll file is located (usually C:\Program Files\Java\jre<version>\bin\server).
   • If you do not want to enter the JRE location at the time of the installation, click Next.
     On the popup window, click Yes to enter the JRE location now, or click No to enter the JRE location later.

     Important :

     You must specify the JRE location before the ODBC driver will work. After the installation, you can access the Management console as an administrator and navigate to Services > <Service_Name> > Service Settings > IP Parameters and enter the JRE location in the ServiceJVMLocation property.
   Conseil :

   For the configuration of a Java service, ServiceNow strongly recommends using the server jvm.dll file from the Java Development Kit (JDK).

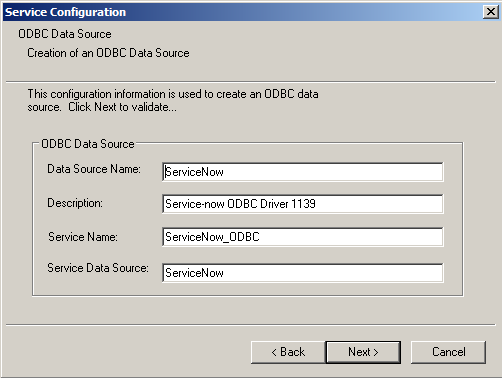

9. When prompted for the ODBC Data Source details, specify the following parameters to create an ODBC data source that can be used to create a DSN.
   • Data Source Name: A short name to identify this data source.
   • Description: A short description of the driver. The driver's version number is appended to the end of this value.
   • Service Name: Enter the same Service Name entered at step 7.
   • Service Data Source: The name that can be selected in the Service Data Source field of the ODBC Administrator.

   Usually, the default values are appropriate.

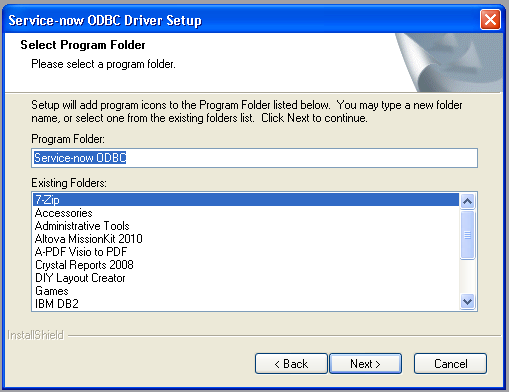

10. Under the Start menu, select the Program Folder to create links for the driver.



    The installation creates the following links in the menu:

    • Interactive SQL (ODBC): An interactive SQL command window for directly testing SQL statements.
    • Management Console: A Microsoft MMC snap-in for configuring default properties for the ODBC driver.
    • ODBC Administrator: A Microsoft ODBC Administrator program.

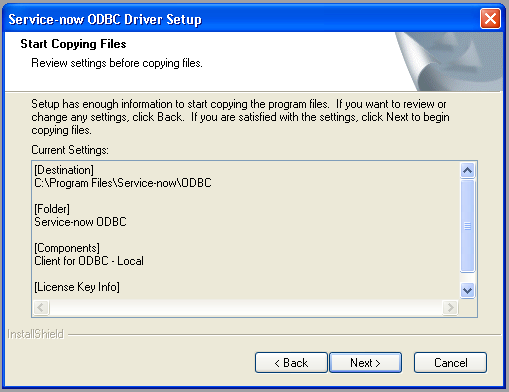

    The driver code is copied to the target folder.



    A progress bar appears.

11. When prompted, click Finish to complete the installation.
12. Download the ODBC Driver Dependencies (2.0.1) file from ServiceNow Store after the installation is successful.
    Then, extract the JARs (bcpkix-fips-1.0.3.jar, bc-fips-1.0.2.4.jar) to a local folder on your Windows machine. For example, <Windows-machine-local-path>\<folder-name>.
13. Navigate to All > ServiceNow ODBC > Management Console > ServiceNow ODBC Manager > Manager (local configuration) > <drive>:\Program Files\ServiceNow\ODBC\cfg\adm.in > Services > ServiceNow_ODBC > Service Settings > IP Parameters.
14. Open the ServiceJVMClassPath parameter.
15. Append the value with the location where the bc-fips-1.0.2.4.jar and bcpkix-fips-1.0.3.jar JARs are extracted.
    For example, the location of jars will be in this format: <Windows-machine-local-path>\<folder-name>\bc-fips-1.0.2.4.jar;<Windows-machine-local-path>\<folder-name>\bcpkix-fips-1.0.3.jar

Résultats

The ODBC driver application is ready for testing.
