Initial setup for Enterprise Graph schema in production instance

Setup and use Enterprise Graph Schema, a unified knowledge graph schema, that captures all the ServiceNow and third party tables and their connections.

Avant de commencer

When you install Enterprise Graph, it automatically begins configuring instance tables. This may take several days and until the setup is complete, the schema won’t respond effectively to queries.

If you have already completed the setup in sub-production instance, you can import the generated descriptions to production instance and fasten the process.

Assuming that you have completed the setup in sub-production instance, do the following to complete the initial setup in production instance:

• Create an integration user, in the sub-production instance. For more information, see https://www.servicenow.com/docs/bundle/zurich-platform-administration/page/administer/users-and-groups/task/t_CreateAUser.html
• Verify if the descriptions are generated in sub-production instance.
• Use the following procedure to:
  • Import the data into production.
  • Run the associated Transform Maps.
• Remove tracker records from the production instance.

Role required: admin

Procédure

1. Navigate to All > Connections & Credentials > Connection & Credential Aliases.
2. Open the record with name Description_Connector.
3. Select Create New Connection & Credential from the related links section.
4. Enter the required details in the Create Connection & Credential form.
5. Add the user name and password that was used, while creating the new user.
   See https://www.servicenow.com/docs/bundle/zurich-platform-administration/page/administer/users-and-groups/task/t_CreateAUser.html for more information.
6. Navigate to All > System Import Sets > Administration > Data Sources.
7. In the name field search bar, enter KG to view the related tables.

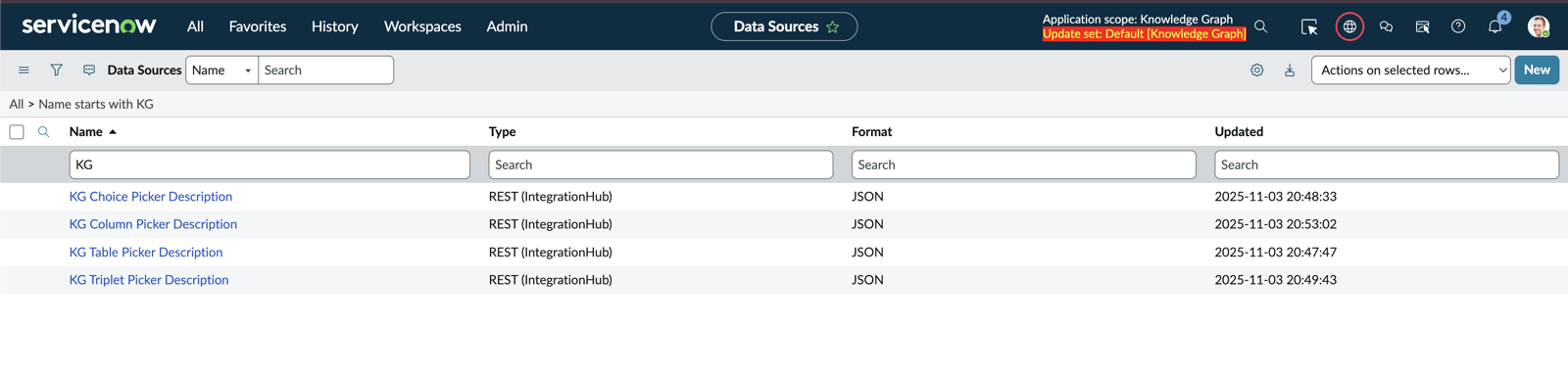

   The following tables are displayed:

   • KG Choice Picker Description.
   • KG Column Picker Description.
   • KG Table Picker Description.
   • KG Triplet Picker Description.



8. Open one of the displayed table and select Load All Records from the Related links section.
   Ensure the data is loaded.
9. Navigate to System Import Sets > Advanced > Import Sets, once the data is loaded.
   For detailed information, see import set documentation https://www.servicenow.com/docs/bundle/yokohama-integrate-applications/page/administer/import-sets/reference/import-sets-landing-page.html
10. Open the import set and select Transform from the Related links section.
    For detailed information, see Transform map documentation https://www.servicenow.com/docs/bundle/yokohama-integrate-applications/page/script/server-scripting/concept/c_CreatingNewTransformMaps.html
11. Select Transform to complete the transformation.
12. Navigate to the selected table and verify if the data is loaded.
13. Repeat the import set and transformation steps for other three tables.
