Filter results for Host Status

Filter your query results by Host Status. Verify whether devices were reachable when the query was executed.

Avant de commencer

Role required: admin

Pourquoi et quand exécuter cette tâche

In the Scan Results filtering types, the Host Status enables users to view scan results based on whether the scanned host was Up or Down. This filter is derived from the Nmap XML status field inside the Raw scan output.

Remarque :

This filter is based on raw scan output and does not depend on scan type. If a scan output does not contain a host status state="up|down" field, it does not match the Host Status filter.

Using the Host Status filter helps to quickly narrow results such as:

• shows only reachable devices (Up) to review open ports or services.
• shows only unreachable devices (Down) to troubleshoot network issues, firewall rules, wrong IPs, or powered-off devices.

Raw data is useful for debugging and verification because:

• Reason field: Raw data confirms why a host was marked Up/Down.
• Good for investigation: Raw data shows what the Nmap actually returned.
• Script validation: Raw data helps validate scripts when scan parsing or mapping doesn’t show expected information.

Procédure

1. Navigate to the Results page.
2. In the Filter panel, select the plus icon.
   The Select Filter Type field opens.


3. Select inside the filter and select Host Status from the drop-down menu.
   The Select Host Status field opens.

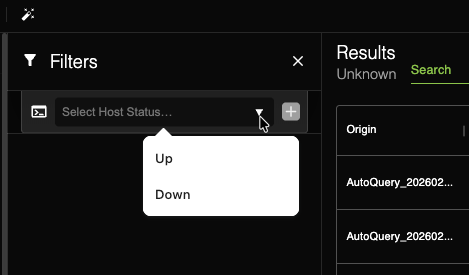

4. Select from the pop-up choices one of the following.
   Remarque :

   Up/Down in this instance means the host status from the scan result (Nmap) for that IP during that scan run.

   • Up means the target device responded, that is, the scanner was able to reach it and also got a response back.
   • Down means the target device did not respond; this could mean it is offline, blocked by firewall, unreachable, or it did not respond.




5. Using the Host Status filter helps to quickly narrow results:
   • Showing only reachable devices (Up) to review open ports/services.
   • Showing only unreachable devices (Down) to troubleshoot network issues, firewall rules, wrong IPs, or powered-off devices.
6. Raw data is useful for debugging and verification because:
   • Raw data confirms why a host was marked Up/Down (reason field).
   • Raw data shows what Nmap actually returned (good for support/investigations).
   • Raw data helps validate scripts when scanning/mapping doesn’t show expected information.
