Get Interface Summary function

  • Release version: Australia
  • Updated March 12, 2026
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Get Interface Summary function

    The Get Interface Summary function in the Telecommunications Network Inventory application allows ServiceNow users to retrieve all network interface records associated with a given input such as a Site, Rack, or Equipment. It is designed for use within Workflow Studio to automate retrieval of interface details, including available interfaces, connected interfaces, and physical connections related to network equipment.

    Show full answer Show less

    This function requires specifying one of the input references (Site, Rack, or Equipment) and returns detailed interface information. If multiple inputs conflict or do not match correctly, the function reports an error to ensure data consistency.

    Key Features

    • Input parameters include references to Site, Rack, Equipment, Availability status, Physical connection model, and optional user-defined codes for Type, Role, and Function.
    • Handles multiple matching records with an option to return only the first matched record for streamlined results.
    • Outputs three key lists of sysid values: Available Interfaces, Connected Interfaces, and Physical Connections.
    • Accessible as a Workflow Studio action, enabling integration into automated workflows for inventory data operations.
    • Requires admin role to configure and add this action to workflows.

    Practical Use and Example

    For example, given an equipment input, the function can return the network ports that are available, connected, and the physical connections between ports. When configured to return only the first record upon multiple matches, it provides a concise summary for efficient processing.

    Benefits for ServiceNow Customers

    • Automates retrieval of network interface data, reducing manual effort.
    • Ensures accurate association of interfaces with their physical and logical network assets.
    • Supports detailed inventory management and troubleshooting within Telecommunications Network Inventory workflows.
    • Improves workflow efficiency by providing configurable output handling for multiple matches.

    The Get Interface Summary function enables you to retrieve all the network interface records that are associated with the input. You can use this function to automatically get the details of the available interface, connected interface, and the physical connection of the equipment in the Telecommunications Network Inventory application when you use Workflow Studio.

    The Get Interface Summary function enables you to retrieve the network interface records that are associated with the input such as Site, Rack, or Equipment. You must enter the site, equipment, or rack value to return the output.

    If multiple inputs don't match, the action reports an error. For example, let's say that you can see the equipment and site details but because the equipment doesn’t belong to the site, the system reports an error with the conflict information.

    You can use this function as a Workflow Studio action in the Telecommunications Network Inventory workflow.

    Roles and availability

    Users with the admin role can add an action to a flow and define the configuration details of the flow. This function is available as a Workflow Studio action in the Telecommunications Network Inventory application so that you can perform inventory-related data operations.

    Input fields

    The following table lists the input fields in the Get Interface Summary function and their descriptions.

    Table 1. Input fields of Get Interface Summary function
    Field Name Description Data Type
    Site Network site that is associated with the network interface. Reference.Network Site
    Rack Rack that is associated with the network interface. Reference.Telco equipment
    Equipment Equipment that is associated with the network interface. Reference.Telco equipment
    Availability
    Status of the network asset. You can select one from the following options:
    • Available
    • Used
    • Reserved
    • Shared
    		 Choice
    Model Physical connection model that is associated with the network interface. Reference.Physical Connection Model
    Type Optional user-defined type code that you use to categorize the types of the various network entities or assets. Reference.TRF Value
    Role Optional user-defined role code that you use to categorize the roles or purposes of the various network entities or assets. Reference.TRF Value
    Function Optional user-defined function code that you use to categorize the functions of the various network entities or assets. Reference.TRF Value
    If multiple records are found action Option to return the type of output when multiple records are found. You can select Return only the first record from the list to return the first interface network record. Choice

    To learn more about the variable data types, see Flow Designer input and output data variables.

    Output

    The following table lists the information about the function output.

    Table 2. Output of function
    Name Description Data Type
    Available Interfaces Returns the sys_id list of the available network interfaces. Array.String
    Connected Interfaces Returns the sys_id list of the network interfaces that are connected to the other network assets. Array.String
    Physical Connections Returns the sys_id list of the physical connections. Array.String

    Example

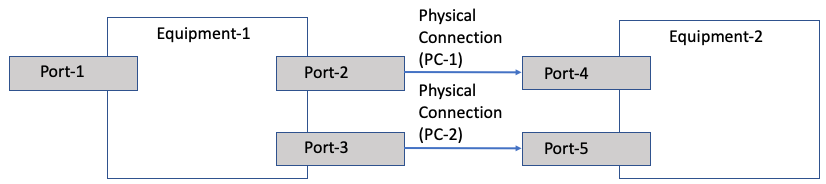

    If the input is passed as Equipment-1 as shown in the following example where Port-1, Port-2, and Port-3 are connected to Equipment-1, Port-4 and Port-5 are connected to Equipment-2, physical connection-1 between Port-2 and Port-4, and physical connection-2 between Port-3 and Port-5. Then the output is as follows:
    • Available Interface - Port-1
    • Connected Interfaces - Port-2 and Port-3
    • physical Connections - PC-1 and PC-2
    Infographic displaying the connections from the Get Interface Summary action. For the text description, refer to the example description that follows.

    If you select If multiple records are found action as Return only the first record, it returns Port-1, Port-2, and PC-1, respectively.
