Management view

  • Release version: Australia
  • Updated March 12, 2026
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Management View

    The Inventory management view within the Telecommunications Network Inventory Workspace provides a comprehensive overview of your network inventory. It displays essential details such as equipment, equipment holders, network sites, and connections, enabling users to manage and analyze inventory effectively.

    Show full answer Show less

    Key Features

    • Overview Tab: Offers a consolidated view of inventory data, including equipment counts based on model, manufacturer, and life-cycle state. Users can also assess the availability of racks, ports, and slots.
    • Inventory List Tab: Displays lists of network sites and assets. Users can expand locations to view associated network sites and their respective equipment or connections.
    • Widgets and Charts: Provides visual data representation, including:
      • Equipment by Model: Displays counts of equipment grouped by model.
      • Equipment by Manufacturer: Shows a donut chart of equipment grouped by manufacturer.
      • Equipment by Life-Cycle State: Categorizes equipment based on states such as In Use, Available, and In Maintenance.
      • Rack and Slot Availability: Indicates the capacity and availability of racks and slots across equipment models.

    Key Outcomes

    Using the Inventory management view, customers can efficiently track and manage their network inventory, enabling informed decision-making regarding equipment usage and site management. By utilizing the visual widgets and detailed lists, users can identify inventory needs and take appropriate actions promptly.

    To access the Inventory management view, click the database search icon located on the side panel.

    Use the Inventory management view in the Telecommunications Network Inventory Workspace to get a detailed view of your network inventory.

    The Inventory management view displays the network inventory details such as equipment, equipment holders, network sites, and connections. Use the following tabs to view the inventory details and take appropriate actions:
    Overview

    View various inventory data, such as total number of equipment grouped by the model, manufacturer, and life-cycle state, and availability of racks, ports, and slots within a site that you’re selected.

    Inventory List
    View a list of network sites or network assets such as equipment and connections based on the option that you’re selected in the side panel.

    Overview tab

    Use the Overview tab for a consolidated view of various network inventory data within a network site that you’re selected.

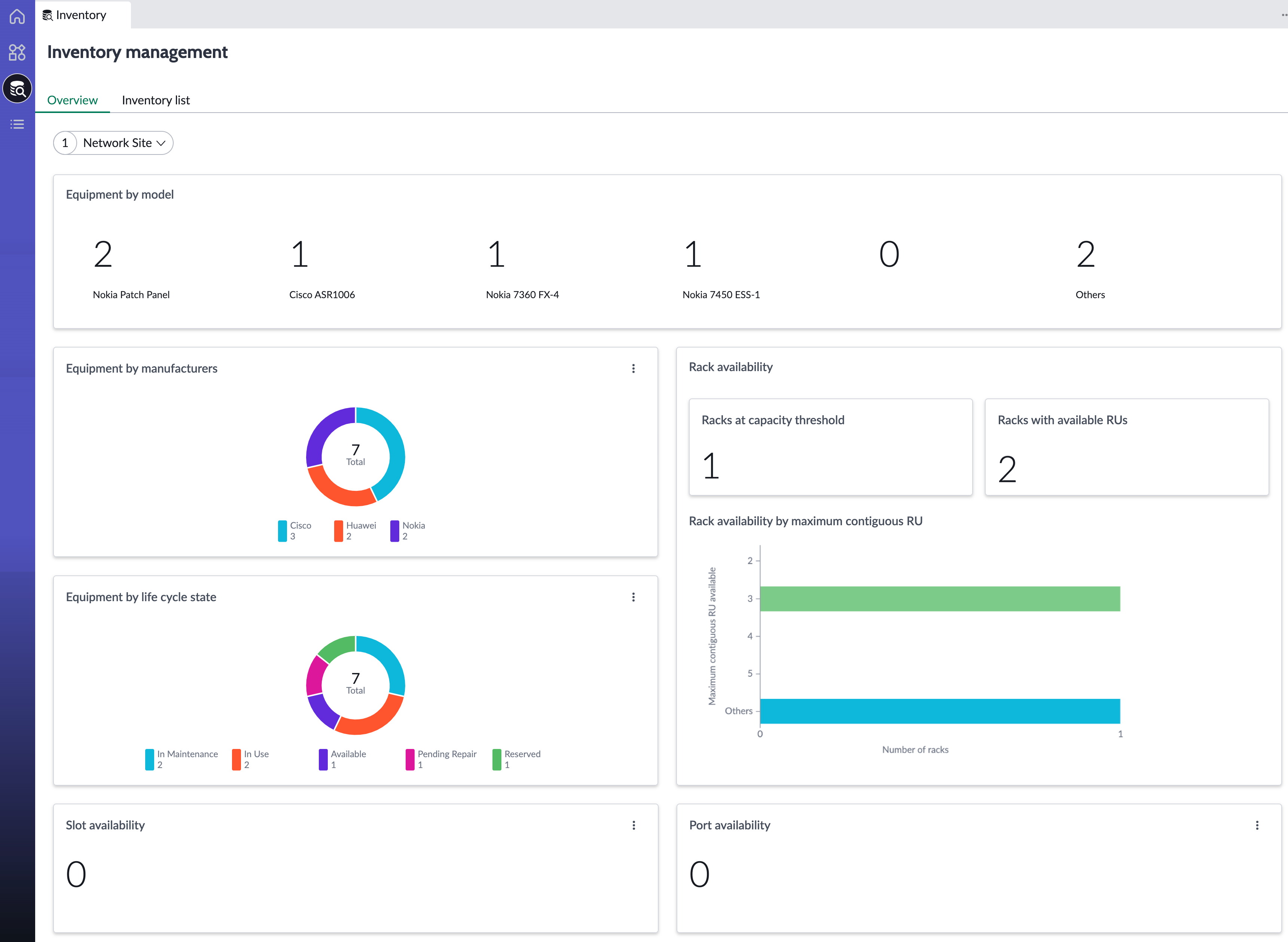

    Figure 1. Inventory management view
    Inventory Management view of the current status of network assets.

    Select any widget or chart to view the list of items that needs your action.

    Table 1. Inventory management widgets
    Widget or chart Description
    Equipment by model Number of the individual pieces of equipment grouped by model. The widget contains a standard set of the five most used telecommunications equipment models. For each equipment model, you can view a total count of the equipment.
    Equipment by manufacturers Donut chart grouping of equipment by the manufacturers who supply them. The widget contains a standard set of the five most used telecommunications equipment manufacturers. For each manufacturer, you can view a total count of equipment.
    Equipment by life-cycle state Donut chart grouping of equipment by the current life-cycle state. The widget contains the number of equipment in the network sites that you’re selected, grouped by the following life-cycle states.
    • In Use
    • Empty
    • Reserved
    • Available
    • In Maintenance
    • Other
    Racks at capacity threshold Number of racks that are occupied more than threshold capacity.
    Racks with available RUs Number of racks with available rack units.
    Rack availability by maximum contiguous RU Bar chart representation of available racks with maximum contiguous rack units.
    Slot availability Number of available slots across the equipment models.
    Port availability Number of available ports across the equipment models.
    Note:
    To learn more about how the count data is collected and refreshed in the workspace landing page, see Data collection and refresh for the Network Inventory Workspace widgets. To learn how to customize the content that appears in each widget, see Customizing the content in your Network Inventory Workspace widgets.

    Inventory list tab

    Use the Inventory list tab to view a list of network sites or network assets based on the item that you selected in the side panel and take appropriate actions. The side panel lists the following:
    • All the locations that are available in the global location.
    • All the network sites that are available in the global location.
    • Network assets such as equipment and connections that are associated with each network site.
    Figure 2. Inventory list tab
    List view of network sites in the Hyderabad location.
    You can perform the following actions in the Inventory list tab.
    • In the side panel, expand the location to view the associated network sites.
    • Select a location to view the associated network site records in the list view.
    • In the side panel, expand each network site to view any associated connections or equipment.
    • SelectEquipment to view the list of associated connections or equipment records.
    • Select Connection to view the list of associated physical and logical connection records within the network site.
    • Select a record in the list view to redirect to its form view.

    Accessing the Inventory management view

    To open the Inventory management view, select the database search icon (Database Search Icon) on the side panel.
