Assessment dashboard in Configurable Workspace of Cloud Migration Assessment
Summarize
Summary of Assessment Dashboard in Configurable Workspace of Cloud Migration Assessment
The ServiceNow® Cloud Migration Assessment application aids in planning, organizing, and tracking the relocation of enterprise IT resources and workloads to cloud platforms. The Assessment dashboard provides a visual representation of migration statistics and progress, enabling effective monitoring of the migration tasks.
Show less
Key Features
- Accessing the Dashboard: Navigate to All > Cloud Migration > Cloud Migration Workspace, then select Assessment dashboard.
- Role Requirements: Users must have the sncloudmigration.operator role to utilize the dashboard.
- Data Visualizations: The dashboard includes various charts such as:
- Resources by Assessment State: A donut report illustrating resources categorized by their assessment task state.
- Assigned Resources by State and Migration Wave: A bar report displaying resources based on their state and migration wave.
- Resources by Target Architecture and Cloud Providers: A bar report that categorizes resources by target architecture and cloud providers.
- Resources by Assessment R-disposition: A donut report showing resources according to the selected migration strategy.
Key Outcomes
Utilizing the Assessment dashboard allows users to effectively review migration task statistics, drill down into detailed resource information, and monitor the migration progress across various categories, including unassigned, blocked, and resources in different assessment states.
Use the ServiceNow® Cloud Migration Assessment application to plan, organize, and track the process of relocating your enterprise IT resources and workloads to cloud platforms. Analyze the IT resources using dashboards that visualize and summarize information on resources by different categories. Use the Assessment dashboard to review the statistics of the migration tasks and monitor the migration progress.
Required ServiceNow AI Platform roles
sn_cloud_migration.operator, uses Cloud Migration Assessment.
Access the Assessment dashboard
To open the dashboard, navigate to , and then select Assessment dashboard
.
Use cases
| User | Dashboard use |
|---|---|
| sn_cloud_migration.operator | Review the statistics of the migration tasks and monitor the migration progress. Drill down to see detailed information on resources in relevant categories. |
Indicators
- Resources in new assessments
- The resources of all categories assigned to assessment tasks in New state.
- Resources in review and approved resources
- The resources of all categories assigned to tasks in Review or Approved state.
- Unassigned on-premise resources
- The resources that you haven't assigned to any assessment tasks.
- Blocked resources
- The resources of all categories assigned to tasks in Blocked state.

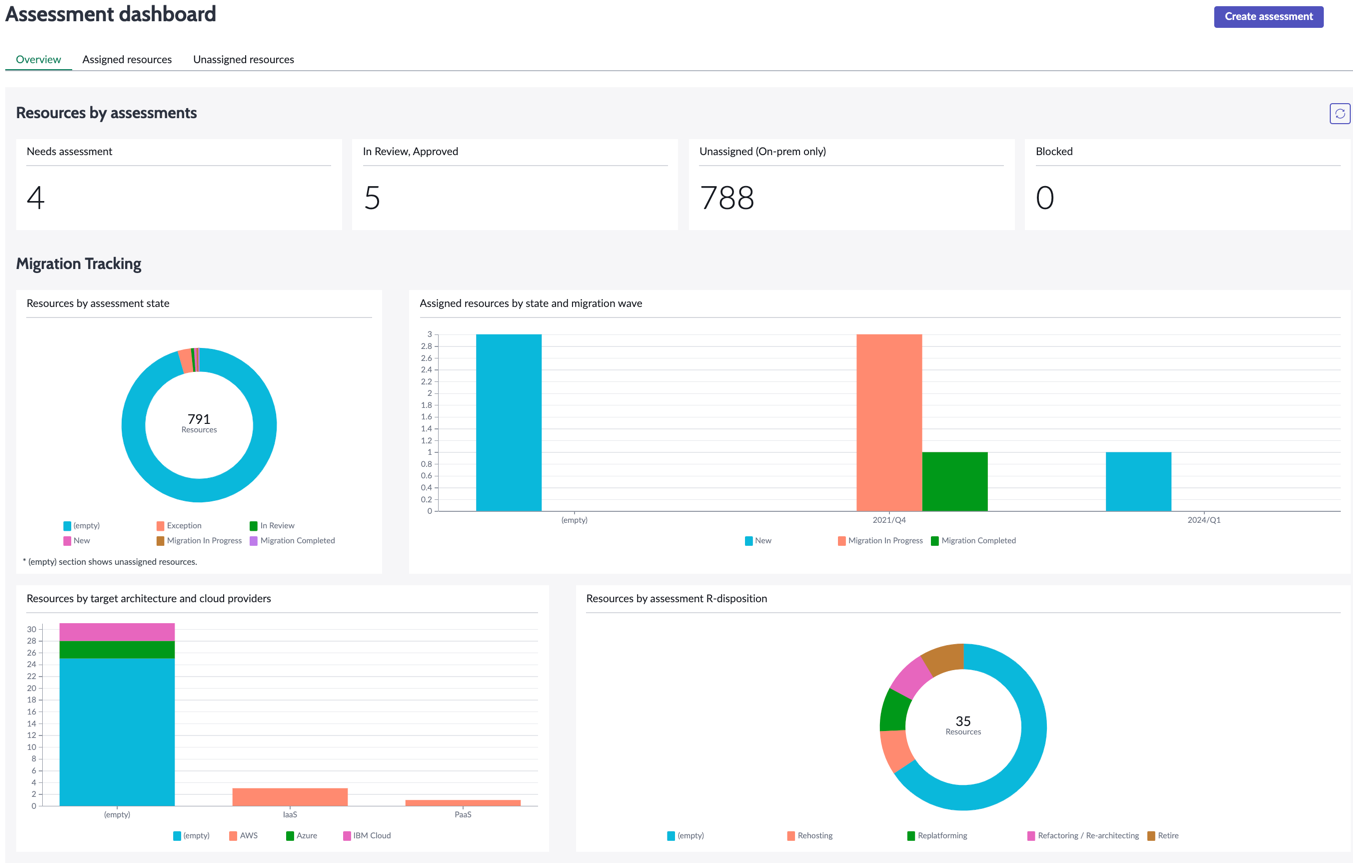

Data visualizations
| Title | Type | Source table | Description |
|---|---|---|---|
| Resources by assessment state | Donut |
Assigned Resource for Migration [sn_cloud_migration_task_resource_m2m] | A donut report that shows resources of all categories by their assessment task state. |
| Assigned resources by state and migration wave | Bar |
Assigned Resource for Migration [sn_cloud_migration_task_resource_m2m] | A bar report that presents resources by state and migration wave. |
| Resources by target architecture and cloud providers | Bar |
Assigned Resource for Migration [sn_cloud_migration_task_resource_m2m] | A bar report that presents resources by target architecture and cloud providers. |
| Resources by assessment R-disposition | Donut |
Assigned Resource for Migration [sn_cloud_migration_task_resource_m2m] | A donut port that shows resources by the migration strategy (R-disposition) selected for their respective assessments. |
