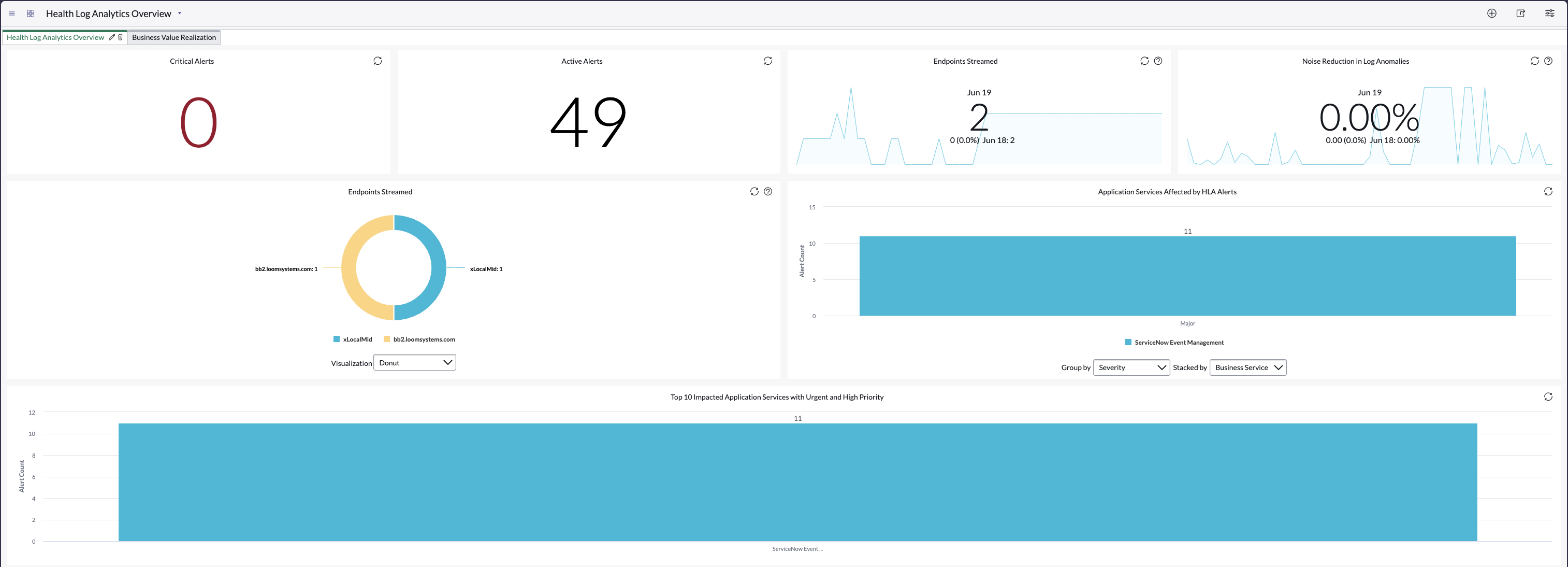

Health Log Analytics Overview dashboard

The Health Log Analytics Overview dashboard uses Performance Analytics to provide a trend of historical data as well as regular reports. The dashboard helps you understand the number of automated actions triggered by alerts from IT issues, the incident reduction rate, and the amount of escalation Health Log Analytics prevented.

Important:

This feature is being prepared for future deprecation. It will be hidden and no longer available for installation but will continue to be supported. For details, see the Deprecation Process [KB0867184] article in the Now Support knowledge base.

Instead of the Health Log Analytics Overview dashboard, you can use the HLA Operational dashboard. For more information, see HLA Operational dashboard.

Required ServiceNow AI Platform roles

• evt_mgmt_admin
• evt_mgmt_operator

Use cases

These use cases provide examples of how different people in your organization would use this dashboard.

User	Dashboard use
evt_mgmt_admin or admin	Edits the dashboard and grants view and share permissions.
evt_mgmt_operator or admin	Views the dashboard and details of the records contained in it to visualize and track HLA alerts, anomalies, time required to resolve IT incidents, funds saved, and other relevant information.

Indicators

Indicators define a performance measurement taken at regular intervals of a business service, an activity, or organizational behavior. These performance measurements result in a series of indicator scores over time. Businesses track these scores to measure current conditions and to forecast trends.

Indicators available in the Health Log Analytics Overview dashboard are:

Average time between HLA alert occurrence time and alert closed time

• The median time between Health Log Analytics alert occurrence time and alert closed time, measured daily in hours.

  This data is presented in the MTTR (Mean Time To Repair) Weekly AVG widget.

• The average number of hours between alert occurrence time and alert closed time of a Health Log Analytics alert.

  This data is presented in the MTTR (Mean Time To Repair) widget.

Active streaming endpoints

The number of endpoints (IPs, networks, and devices) that are streaming into Health Log Analytics.

This data is presented in the Endpoints Streamed widget.

HLA alerts with ITSM ticket

The predicted number of issues based on the number of alerts that led to ITSM tickets.

This data is presented in the Escalations Prevented widget.

Closed alerts without ITSM ticket

The weekly number of alerts closed without an ITSM ticket.

This data is presented in the Incident Reduction widget.

$ saved

The amount of money, in US dollars, saved by using Health Log Analytics. The model is based on the number of Health Log Analytics alerts marked as significant, with P1 incidents.

This data is presented in the US$ Savings from Predicting and Preventing Critical Outages widget.

HLA alerts that marked as significant

The number of Health Log Analytics alerts marked as significant.

This data is presented in the Issues Predicted widget.

Alerts with KB

The number of Health Log Analytics alerts with an associated knowledge base article.

This data is presented in the Automation-Ready Alerts widget.

HLA alerts turned ITSM ticket

The number of Health Log Analytics alerts with actual iHub invocations.

This data is presented in the Automations Triggered widget.

Alerts compression ratio

The number of anomalies that led to Health Log Analytics alerts.

This data is presented in the Noise Reduction widget.

Active streaming endpoints

The number of endpoints (IPs, networks, and devices) that are streaming into Health Log Analytics, by Application Service.

This data is presented in the Endpoints Streamed widget.

Detections.accepted and Alerts.Open

Indicators used to calculate the Alerts compression ratio.

Breakdowns

Breakdowns enable you to group or filter indicator scores for more detailed analysis, such as to show separate scores for each assignment group.

Breakdowns available in the Health Log Analytics Overview dashboard are:

Streaming Sources Data Input.

Data visualizations

Reports available from the Health Log Analytics Overview dashboard are listed in the following table.

Title	Type	Source table	Description
Critical Alerts	Score	Report Source: Active Alerts Additional condition: Source = Log Analytics, Severity = Critical,Maintenance = false, AND State = not Closed	The number of critical alerts in your organization from the source Log Analytics.
Active Alerts	Score	Report Source: Active Alerts Additional condition: Source = Log Analytics, Maintenance = false, AND State = not Closed	The number of open alerts in your organization from the source Log Analytics.
Application Services Affected by HLA Alerts	Bar	[em_alert_bs_status_view]	The number of alerts per severity level. The alerts are grouped by business service in your Configuration Management Database (CMDB).
Top 10 Impacted Application Services with Urgent and High Priority	Bar	Report Data Source: Active Alerts (Maintenance = false AND State = not Closed) Additional condition: Source = Log Analytics AND Priority group in (Urgent, High)	The services in your CMDB that were impacted the most by urgent and high priority alerts.
