Guided Tours in Configurable Workspaces

Guided Tours is a feature in ServiceNow that assists users in onboarding and training processes. It provides step-by-step walkthroughs and interactive tutorials to help you understand and utilize the platform's capabilities. Guided Tours are supported in Configurable Workspaces to instruct users how to use features in your workspace.

Create a Guided Tour in Configurable Workspaces

To create a Guided Tour in your Configurable Workspace, see Create a guided tour.

Example: Create an incident using Service Operations Workspace

The following is an example of how you can use Guided Tours to explain to a user the steps to create an Incident in your workspace. In this example it shows the introduction, callouts, callout steps, and the conclusion for your tour.

1. Navigate to All > Guided Tours Designer > Create Tour.
2. Fill in the new guided tour form.

   Table 1. Guide tour form

   Field	Description
   Name	The name of your tour. In this example, it's Create New Incident Tour on Workspace.
   Tour Type	The area the tour is created for. In this example, it's Workspaces.
   Starting Page	The page the tour is created for. In this example, it's Service Operations Workspace: Record.
   Table	The type of record needing guidance. In this example, it's incident.
   Sys_id	Note: It's important that you set up your tour this way, instead of copying and pasting a new incident URL as workspaces append an additional id such as -1_uid_1, or -1_uid_3, etc. If you use one of these URLs your tour will only work when a new incident matches that uid. Also, it's important to ensure that your steps are captured with the Options of: {"url":"/now/sow/record/incident/-1"}, if you start with these recommendations you should not have to change them, but if you have tour steps with options with the uid appended, change the JSON to: {"url":"/now/sow/record/incident/-1"} and it should work. The sys_id for the page needing guidance. In this example it's -1.

3. Select the Create Tour button.
4. The Guided Tour Designer window opens with the page that is selected in the steps above.

Guided tour introduction

The introduction is used to explain to the users about the goal of the tour and what information can be expected from the tour.

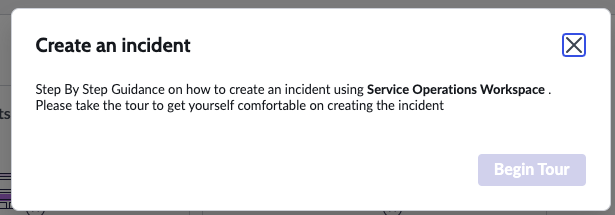

Figure 1. Guided tour introduction

Guided tour callouts

Callouts direct the user, with step-by-step guidance, to navigate and operate within the workspace. You can drag callouts anywhere within your workspace to give more context on the screen or instruction for the task. You can choose how the callout is displayed in the area you want to provide more information about. The options for the callout displays are:

• Above
• Below
• To the left
• To the right

For example, in this scenario, the callouts direct the user to navigate to the list view and look for the Incidents tab. As you create your tour steps list, you can also drag the steps in the list to reorder them.

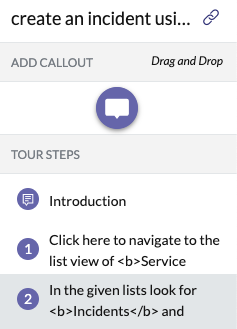

Figure 2. Guided tour callouts

You can create steps on multiple pages and areas within the workspace. You can also configure the triggers that will advance the user to the next step. As the user selects through the tour, the next callout step displays after the trigger is completed. In this example, the trigger is configured to go to the next step on after selecting the next button.

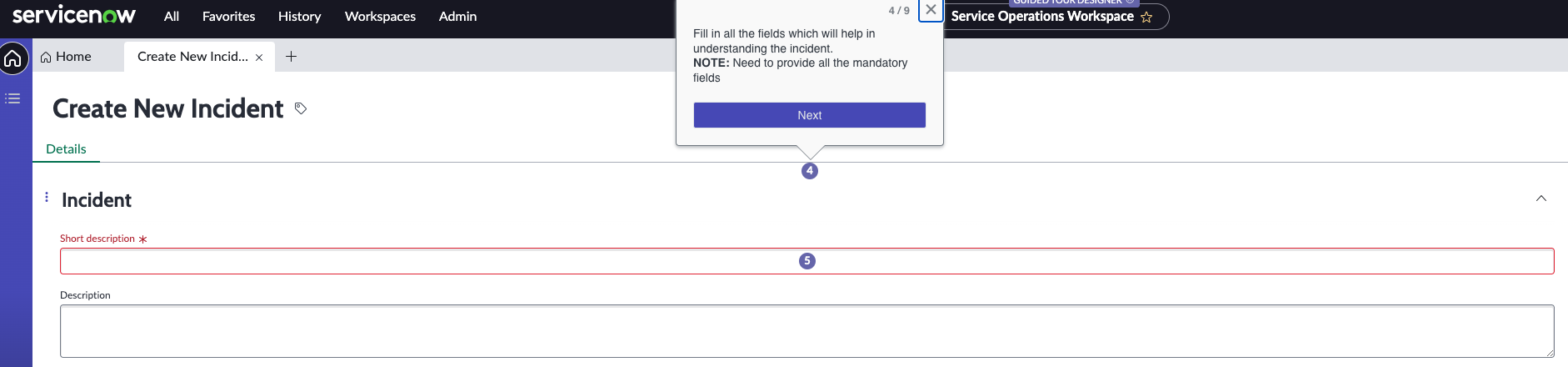

Figure 3. Guided tour callout steps

Note:

As you create your tour, be sure to identify areas that may be confusing or need extra attention.

At the completion of the tour, the user is presented with a conclusion notifying the provided the tour is finished. Here you can direct your users to check out other tours, or give them follow-up information of what to do next now that they’ve completed the tour.

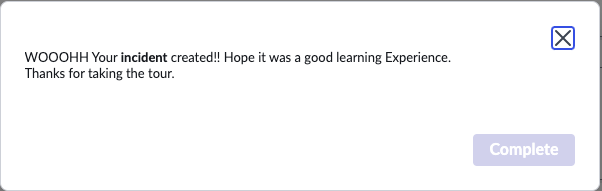

Figure 4. Guided tour conclusion

After you have completed creating your tour, you can select to preview the tour to make sure it displays and guides the user properly before submitting.
