Configure advanced algorithms for Column Level Encryption Enterprise

  • Release version: Xanadu
  • Updated October 22, 2024
  • 1 minute to read

    • Create a cryptographic specification to define the algorithm for a cryptographic module. Customize the encryption specifications with advanced options that are available for Column Level Encryption Enterprise.

    Before you begin

    Role required: admin

    Procedure

    1. On the Crypto Specifications (#) tab, click New.

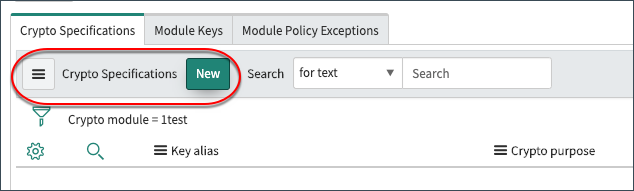

      Crypto Specifications tab.
    2. On the form, fill in the fields.
      Table 1. Algorithm Definition form
      Field Description
      Crypto module

      Name of the selected cryptographic module populates.
      Crypto purpose

      The value is Symmetric Data Encryption/Decryption for Column Level Encryption Enterprise.
      Algorithm

      The value is AES for Column Level Encryption Enterprise.
      Operation mode

      The value is CBC for Column Level Encryption Enterprise.
      Size
      Possible values are 256 and 128.
      Note:
      256-bit size is most secure for encryption and is used for Symmetric Data Encryption/Decryption for Column Level Encryption Enterprise.
      Equality preserving

      Option to enable deterministic encryption.

      Note:
      Selecting this option means that the encrypted value of a field should be the same when the field value remains the same.

      Option to enable Symmetric Data Encryption/Decryption with AES in Cipher Block Chaining (CBC) mode.
      Integrity

      Option to provide Integrity in GCM operation and does not apply for Column Level Encryption Enterprise functionality.
    3. Click Submit.

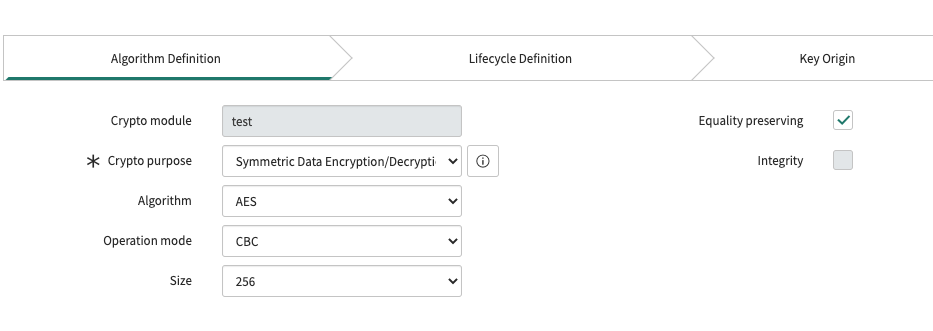

      The following example shows AES CBC-256 encryption. When Column Level Encryption Enterprise is active and the parent module is column_level_encryption, only Symmetric Data Encryption/Decryption AES CBC-256 applies as the crypto purpose. See Cryptographic specification for details.

      Shows the AES-CBC-256 encryption configuration options.

    What to do next

    Perform one of the following operations:
