Test the end-to-end client-side encrypted secrets integration

  • Release version: Xanadu
  • Updated August 1, 2024
  • 1 minute to read

    • Test your integration, and review the execution details to confirm your configuration is working.

    Before you begin

    Role required: admin, KMF_admin, sn_secrets.secret_manager, and sn_kmf.cryptographic_manager

    Procedure

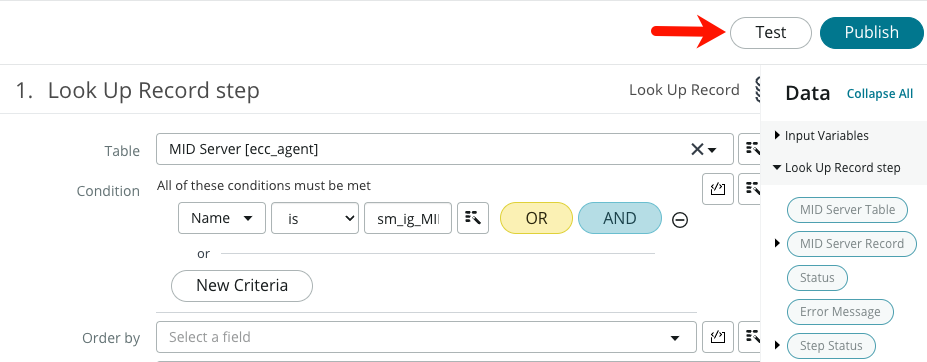

    1. In Workflow Studio select the Test button in the top-right corner of the screen.
      Test button in flow designer
    2. In the Test Action window, select Run Test.
    3. Select Your test has finished running. View the Action execution details.
    4. Refresh your screen until you see Test Run – Completed in the top-right side of the screen.
    5. Select the Steps arrow at the bottom left of the screen.
    6. Scroll down until you see a Step Output Data heading with the following success message:
      {"Step Status";{"code";0,"message";"Success"}}
    7. After seeing this message in Workflow Studio, verify that your text file has been created in your local system.
