Order decomposition examples

  • Release version: Zurich
  • Updated October 3, 2025
  • 6 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Order decomposition examples

    This content explains how ServiceNow’s order decomposition process breaks down customer and service orders into manageable domain orders—such as product, service, and resource orders—based on specification relationships and defined rules. It uses demo data examples to illustrate handling complex scenarios like optional product characteristics, quantity-based decomposition, staggered fulfillment, and exclusion rules. These examples help ServiceNow customers understand how to configure and apply decomposition to support diverse order management and fulfillment workflows.

    Show full answer Show less

    Key Features

    • Specification Relationships and Decomposition Rules: Relationships between product, service, and resource specifications (e.g., Requires, Bundles, Realized as) govern how customer orders are decomposed. Decomposition rules can be defined to exclude domain orders if specific characteristics or options are not present in the customer order.
    • Example with Managed Firewall Service: Ordering a Managed Firewall service triggers decomposition into one customer-facing service order, three resource-facing service orders, and corresponding resource orders. This process is initiated after order approval and uses ServiceNow AI Platform to trigger fulfillment workflows based on order attributes.
    • Composite Products and Bundling: For composite products like the SD-WAN Service Package, which bundles multiple product specifications, decomposition creates a hierarchy of product orders. Child product orders are created for each bundled component when the customer order is approved.
    • Optional Characteristics and Exclusion Rules: Decomposition rules can exclude creation of related service orders if optional characteristics (e.g., SD-WAN Controller Tenancy) are not selected by the customer, preventing unnecessary order generation.
    • Characteristic-Referenced Decomposition: Rules can reference specific characteristics and values on the order line to conditionally trigger decomposition only when those characteristics are present (e.g., WAN Optimization characteristic must be ordered to generate related service orders).
    • Quantity-Based Decomposition: When customers order multiple instances of a product, decomposition creates multiple product orders matching the quantity. Each instance is fulfilled separately, supporting precise inventory and fulfillment tracking.
    • Staggered Decomposition: For product offerings like the SD-WAN Bronze Plan, decomposition can be staggered—initially creating domain orders only for characteristics present in the customer order. Additional service orders are generated later when fulfillment agents provide missing characteristic information.

    Key Outcomes

    • Enables automated and granular decomposition of complex customer orders into domain-specific product, service, and resource orders, aligning with defined specification relationships.
    • Supports flexible order fulfillment by honoring optional characteristics and conditional rules, reducing unnecessary order generation and simplifying order management.
    • Facilitates handling of quantity-based orders by creating multiple discrete product orders, enabling separate fulfillment and inventory management for each instance.
    • Allows staged order fulfillment through staggered decomposition, ensuring all required service orders are eventually created when needed information becomes available.
    • Improves visibility and control over order decomposition and fulfillment workflows by leveraging ServiceNow AI Platform decision tables to select appropriate workflows based on order attributes.

    Examples using demo data illustrating how customer and service orders can be decomposed under diverse conditions help you to understand the decomposition process. The conditions include optional characteristics, quantity-based decomposition, staggered fulfillment, and exclusion rules that support complex order management and fulfillment workflows.

    Specification relationship and decomposition rule example

    The Managed Firewall service demo data is an example of a customer facing service specification that has a Requires relationship with the following three resource-facing service specifications:
    • Firewall administrator
    • Firewall and DMZ
    • Threat and Intrusion Prevention service

    The decomposition process creates an RFS service order only when the corresponding characteristic is available in the order line item for the Managed Firewall service specification.

    After receiving a service order for adding a Managed Firewall service, a service manager reviews and approves it. This process triggers decomposition, which creates the RFS service orders and resource orders. The service order has one order line item for the Managed Firewall service, which includes all of its characteristics. The service order decomposition process creates the following:
    • A CFS service order for Managed Firewall service.
    • Three RFS service orders for all three RFS specifications.
    • Three resource orders for resource specifications.

    Next, the ServiceNow AI Platform triggers a fulfillment workflow for the decomposed service and resource orders. This workflow generates the required order tasks for fulfilling the domain orders and uses decision tables to identify the workflow for a decomposed order. The selected workflow is based on various attributes in the original service order. These attributes include the specification category, and an order line item action (Add, Change, or Delete), among others.

    To learn more about decision tables, see Decision tables:

    Example of an order decomposition that is based on specification relationships

    Specification relationships define the relationships between a product, service, and resource. When you define specification relationships, you can optionally create decomposition rules to specify how a customer order is decomposed, fulfilled, and delivered to your customer.

    The best way to view a decomposition rule is as an exclusion rule. You use decomposition rules to specify to exclude domain orders from being created when you receive a customer order that doesn't contain a characteristic or characteristic option. For example, in the SD-WAN Service Package demo data, the following occurs:

    • A specification relationship is defined between the SD-WAN Controller product specification and its service specifications.
    • The service specification details the services that are required for the product. When an order is received for the SD-WAN Controller product, a product order and a service order are generated for the SD-WAN Controller Service.
    Decomposition runs on the specification that is associated with the customer order line item and its hierarchy of specifications. It works as follows:
    • If the relationships between the source and target specifications are Bundles, Realized as, or Requires types, a product, service, or resource order is created for the target specification when the customer order is decomposed.
    • Decomposition establishes the hierarchical relationship between the source and targets while generating the product, service, and resource orders.
    • If the specification relationship is of a Composed of type, decomposition doesn't happen.
    The SD-WAN Service Package demo data is an example of a composite product specification that bundles three other product specifications within it:
    • SD-WAN Controller
    • SD-WAN Edge Device
    • SD-WAN Security
    The SD-WAN Service Package defines the following relationships:
    • SD-WAN Service Package has a Bundles relationship with an SD-WAN Controller
    • SD-WAN Service Package has a Bundles relationship with an SD-WAN Edge Device
    • SD-WAN Service Package has a Bundles relationship with SD-WAN Security
    When a customer order is received for the SD-WAN Service Package, and that order is approved, decomposition is triggered. The customer order line item for the SD-WAN Service Package has a single product order for the SD-WAN Service Package. That SD-WAN Service Package Product order has three child product orders:
    • SD-WAN Controller
    • SD-WAN Edge Device
    • SD-WAN Security (if the option security product was ordered)

    Example of order decomposition that is based on defined decomposition rules

    When you define specification relationships, you can optionally create decomposition rules. With a decomposition rule, you can specify to exclude domain orders from being created when you receive a customer order that doesn't contain a specific characteristic or characteristic option. The following example shows that the SD-WAN Controller Tenancy product characteristic was designated as optional.

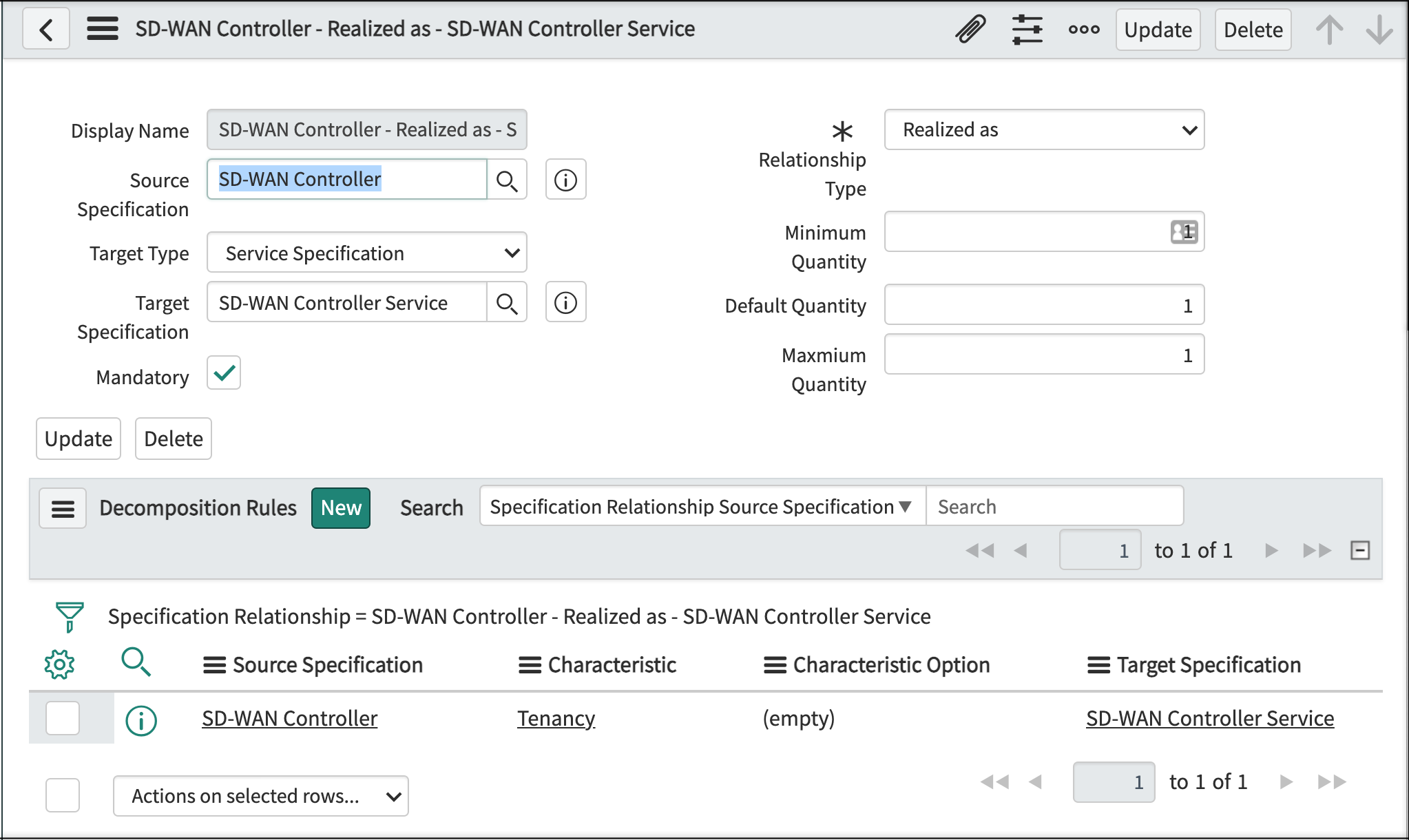

    Figure 1. SD-WAN Controller Tenancy product characteristic
    Product Specification page displaying the decomposition rules tab view of SD-WAN controller along with field description. For more information, refer to the description that follows.
    In the example, you see that a decomposition rule was defined for the SD-WAN Controller product specification relationship to the SD-WAN Controller Service. This rule excludes the specification when a customer does not select the Tenancy option.

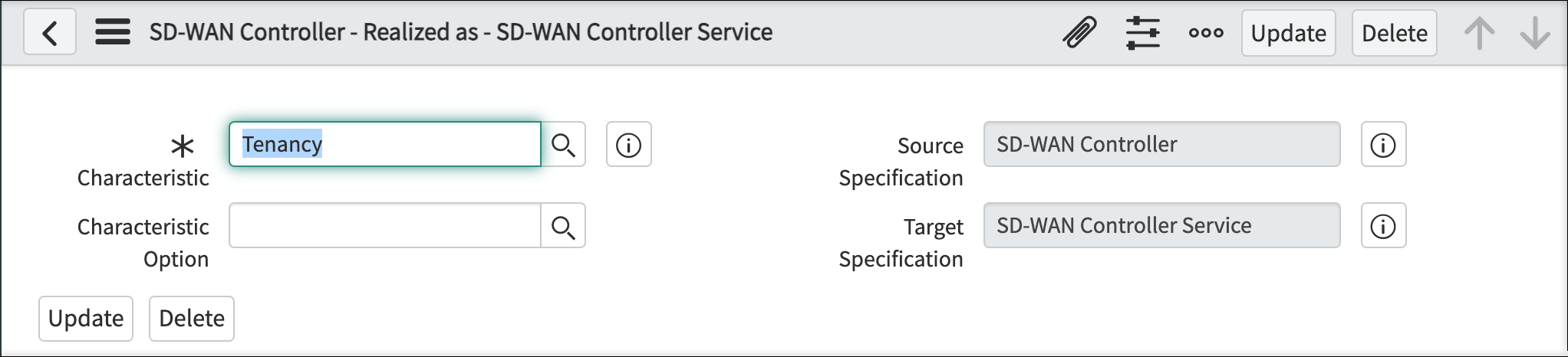

    Figure 2. SD-WAN Controller Service decomposition rule
    Decomposition rule field details of SD-WAN controller service. To learn more about fields, refer to the following description.

    When a customer places an order and doesn't select the Tenancy option, the related service order doesn't generate for it.

    Example of order decomposition that include references to characteristics and options

    You can define the decomposition rules for a specification relationship and include references to a characteristic and characteristic option. The following elements comprise the specification relationship:
    • The source specification is the specification that defines the specification relationship.
    • The target specification is the specification that the relationship is being defined to.
    • Both values are automatically defined when you create the decomposition rule from the specification relationship.

    If the characteristic and value are present on the order line, the ServiceNow AI Platform applies the decomposition rules to Add and Change type orders. They are not applied to customer order line items with a Disconnect (Delete) order action.

    In this example, the SD-WAN Edge Device is a product specification and SD-WAN Security is a service specification.
    • The SD-WAN Edge Device has a characteristic called WAN Optimization and has a Realized as relationship with SD-WAN Security.
    • There is a decomposition rule for this relationship with WAN Optimization as the characteristic.

    If you receive an order for the SD-WAN Service Package that doesn’t include the WAN Optimization characteristic, the decomposition rule prevents the generation of an SD-WAN Controller Service service order. The rule designates that the decomposition of that service order only happens if that characteristic is ordered.

    Order decomposition for order line-item quantity and order quantity characteristics changes

    When order decomposition process uses the order quantity information from the order capture process to create multiple product orders that match the line item quantity for a customer order. An agent then fulfills each instance of the product separately, which create the inventory records for each of the fulfillment instances.

    When a customer submits an order for three instances of the SD-WAN Service Package product and you approve the order, the decomposition process creates three product orders for the SD-WAN Service Package including one product order for each order line item. Each product order in the SD-WAN Service Package creates three child orders for the products and services for the order fulfillment process.

    Example of staggered decomposition

    The following example describes the staggered decomposition process for a product offering called SD-WAN Bronze Plan.

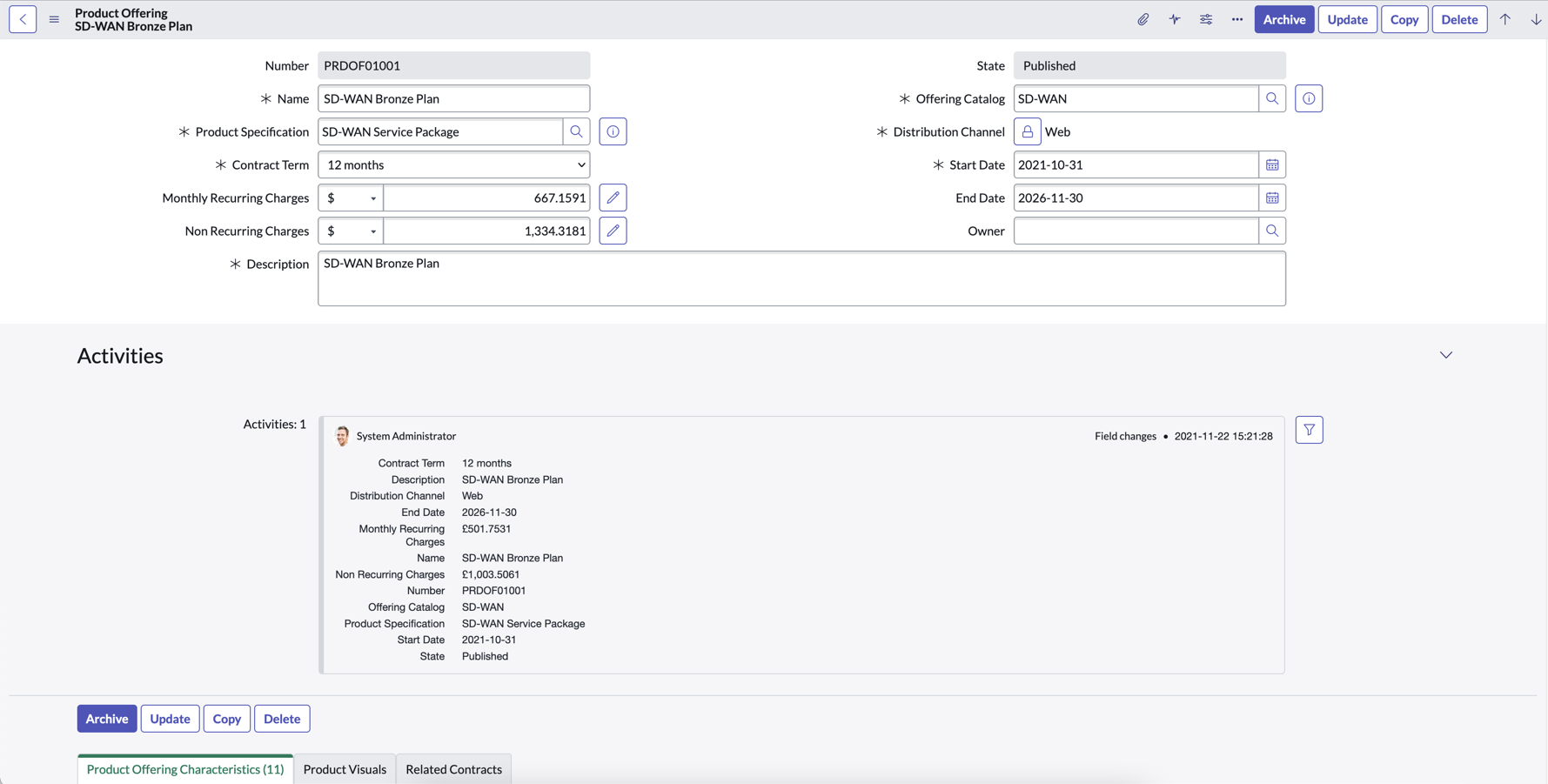

    Figure 3. SD-WAN Bronze Plan product offering
    Product Offering page displaying the decomposition process of SD-WAN bronze plan. For more information, refer to the description that follows.
    The SD-WAN Bronze Plan product offering uses a product specification, called an SD-WAN Service Package (as shown in the following example), that has three target specifications:
    • SD-WAN Edge Device
    • SD-WAN Security
    • SD-WAN Controller

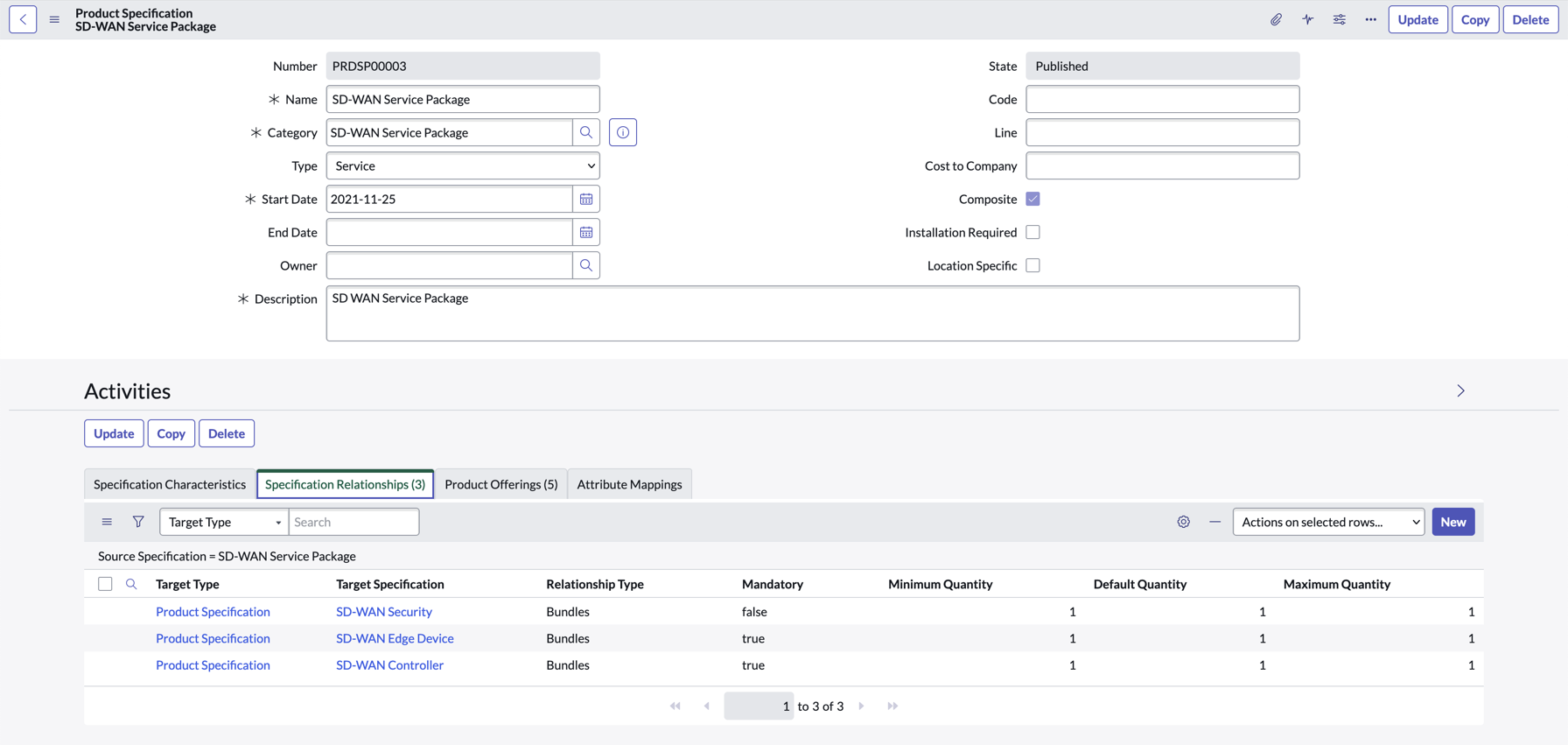

    Figure 4. SD-WAN Service Package product specifications
    Product Specification page displaying the specification relationships tab view of SD-WAN service package along with field details. For more information, refer to the description that follows.

    The SD-WAN Edge Device product specification has specification relationships with SD WAN Optimization Service and SD-WAN Routing, and the underlying decomposition rules don't have any values for WAN Optimization and Routing characteristics.

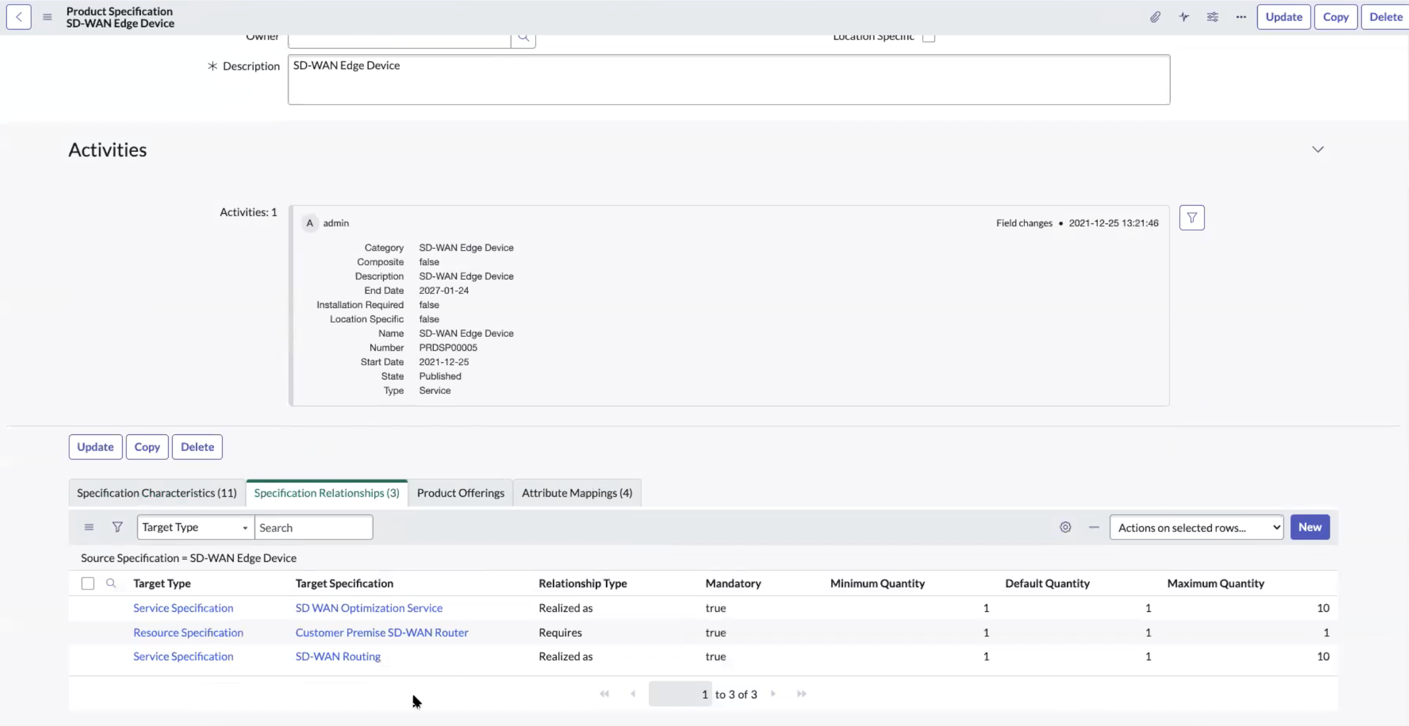

    Figure 5. SD-WAN Bronze Plan specification relationships
    View of the specification relationships tab view of SD-WAN edge device and its field details. For the image description, refer to the text that follows.

    The following example shows the decomposition rules for the product offering for the SD-WAN Bronze Plan.

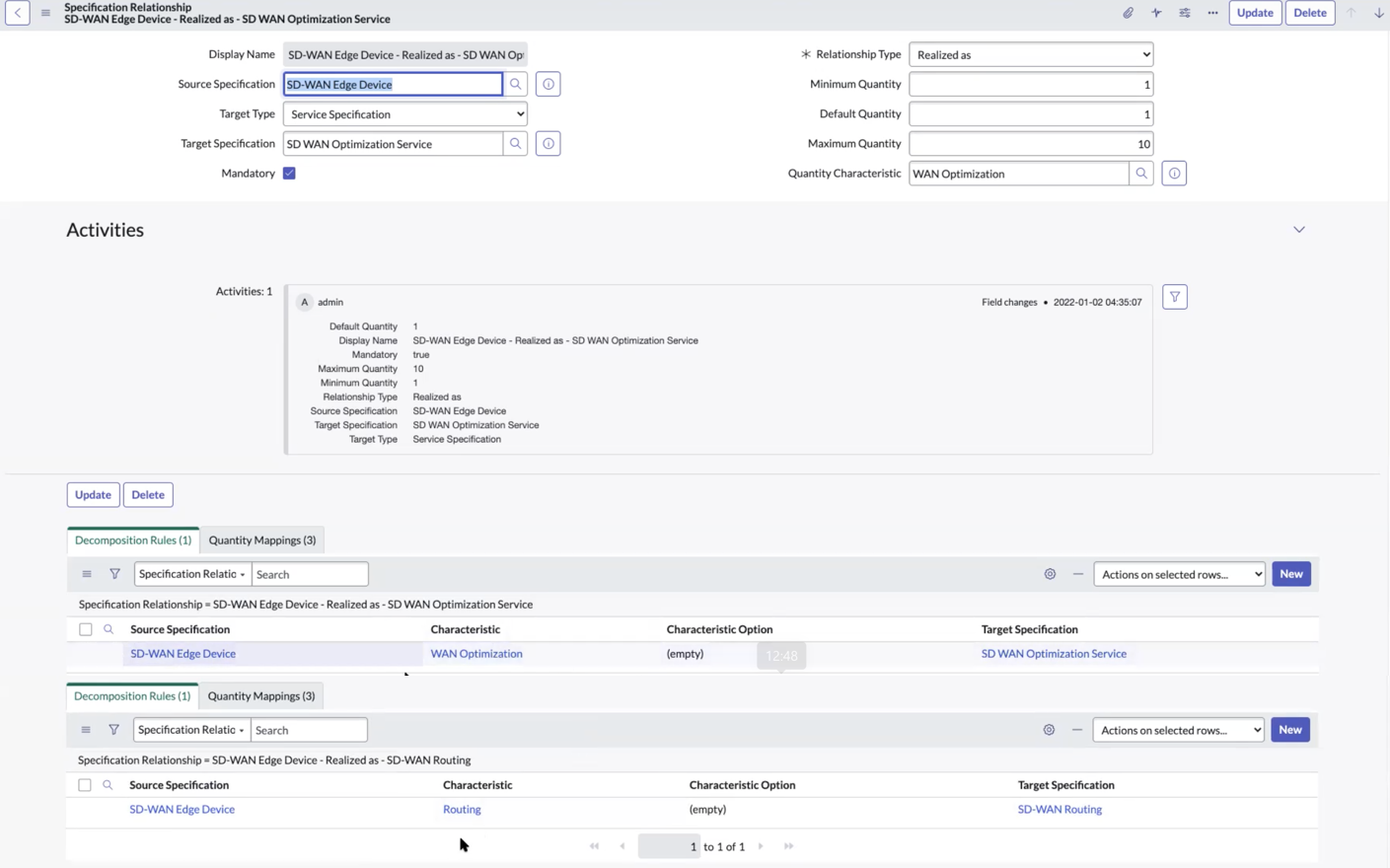

    Figure 6. SD-WAN Bronze Plan decomposition rules
    View of the decomposition rules tab view of SD-WAN edge device and its field details. For the image description, refer to the text that follows.

    When your customer places an order for the SD-WAN Bronze Plan product offering and you approve this customer order, decomposition begins with the creation of the domain orders as per the defined specification relationships and decomposition rules. Because this customer order doesn't have the values for these characteristics for Routing and WAN Optimization, the decomposition rule doesn't create the service orders.

    However, as a part of the order fulfillment process, the information for Routing and WAN Optimization must be available. When your fulfillment agent provides the values for these characteristics, the decomposition rule creates the necessary service orders and the order decomposition completes.
