Add custom file types in Visual Studio Code

If you have work with file types other than the default types provided, you can add additional file types to your instance and edit them in ServiceNow extension for Visual Studio Code.

Avant de commencer

Role required: admin

Procédure

1. Create a new file type in your ServiceNow instance and inherit it from the application file.
2. Add custom columns of the type Script and String, and enter some data.
3. Navigate to View > Command Palette in Visual Studio Code.
   You can also use a keyboard shortcut, Control+Shift+P on Windows or Command+Shift+P on MacOS, to open the command palette.
4. Choose Now: Add Custom File Types from the command palette.
   The command fetches all the existing tables in the current application and opens the Add new file type wizard.
5. Select the file type you created in your ServiceNow instance from the list.
6. At the Select tags prompt, select the tags you created in the instance.

   All tags are selected by default. Click a tag's check box to deselect it.

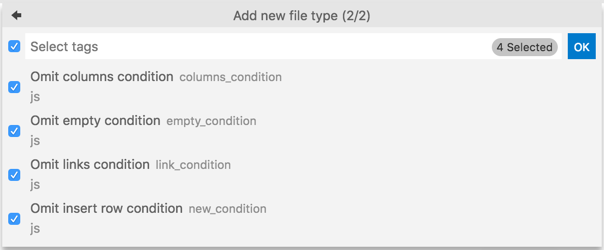

   Figure 1. Select tags dialog box



   The new file type is successfully added to the app.config.json file. You can also add the desired file types manually to the app.config.json file under your project. See the example below.
7. Absorb this new file type to the current project using the Now: Configure File Types command from the command palette.
8. Select the file type you created from the list of file types and click OK.
   The selected file type is ready for editing in the ServiceNow Extensions for Visual Studio Code extension.

Exemple

The following is an example for app.config.json

"CustomFileTypes": {
        "sc_ic_aprvl_type_defn": {
            "superCoverName": "Miscellaneous",
            "coverName": "Approval Type Definition",
            "tags": {
                "approver_script": "js",
                "approver_html”: "html",
            }
        }
    }
}

• superCoverName is a name of the super parent directory (Should always pointtoMiscellaneous).
• coverName is a descriptive name of the table.
• sc_ic_aprvl_type_defn is a table identifier.
• tags represent the set of scriptable columns in the table
• approver_script is a name of the table column / xml tag
• js is an extension of the file (js | html | css | json)
