Generate imports and validate the connections

For each ServiceNow OT Discovery connection, configure the name and run as user for each import job. Each connection will generate a new Scheduled Import Set and Data Source.

始める前に

Role required: admin

手順

1. Next to the Generate imports task, select Configure.
   The Generate imports for the ServiceNow OT Discovery Connection page opens.
2. In the Run As User field, select System Administrator.
   This is the role within the platform who will run the schedules.
3. Select Generate.
   Because the Table permissions were set to Can Read, Can Create, and Can Update, this starts creating scheduled jobs in the background.
4. When finished, the banner at the top of the page states "Successfully generated import objects for connection OT Discovery."
5. Return to the Guided Setup and select Mark as complete next to the Generate imports task.
6. For the Validate the connection section, select Configure.
7. On the next page, check the box next to OT Discovery.
8. Under the header, Related Links, select Test Connection

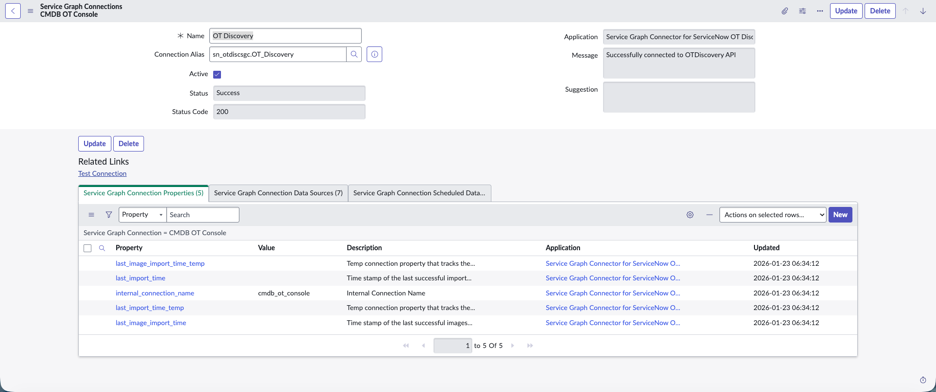

9. Testing the connection takes a few moments and once completed, the page refreshes to show the test results.
   The connection is successful if the Status Code is 200. If there's an Error Code and Error Message, the connection failed and further troubleshooting is required.


10. Click on the OT Discovery link.
    This opens the Service Graph Connector OT Discovery view.
11. The table lists the connection properties, the data sources that were generated and the 7 import schedules that were created.
12. This task tests:
    • Is the Service Graph Connector able to reach the Instance.
    • If so, is there a valid license on the Console.

    If the connection was successful, but the Console license has expired, you may see a message in the Suggestion field asking you to please reach out to your account representative.
13. Return to the Validate the connection section and select Mark as complete.
14. Return to the Guided Setup page.
