View and edit the OT Network Map

View and edit the Operational Technology (OT) Network Map in the Industrial Workspace to visualize your OT networks per site and their OT devices.

始める前に

Role required: cmdb_ot_isa_viewer role and cmdb_ot_viewer

手順

1. Navigate to the Industrial Workspace.
2. To open the Equipment Model Manager, select the Equipment model icon.
3. Select a site that you want to view the OT Network Map for.
4. Select View OT Network Map.
   The network map opens in a new tab.
5. To view the legend with an explanation of the visuals used in the network map, select the Legend icon.
6. To view additional information about a subnet node, hover your mouse over the node.
7. To view additional information about a device node, hover your mouse over the node.

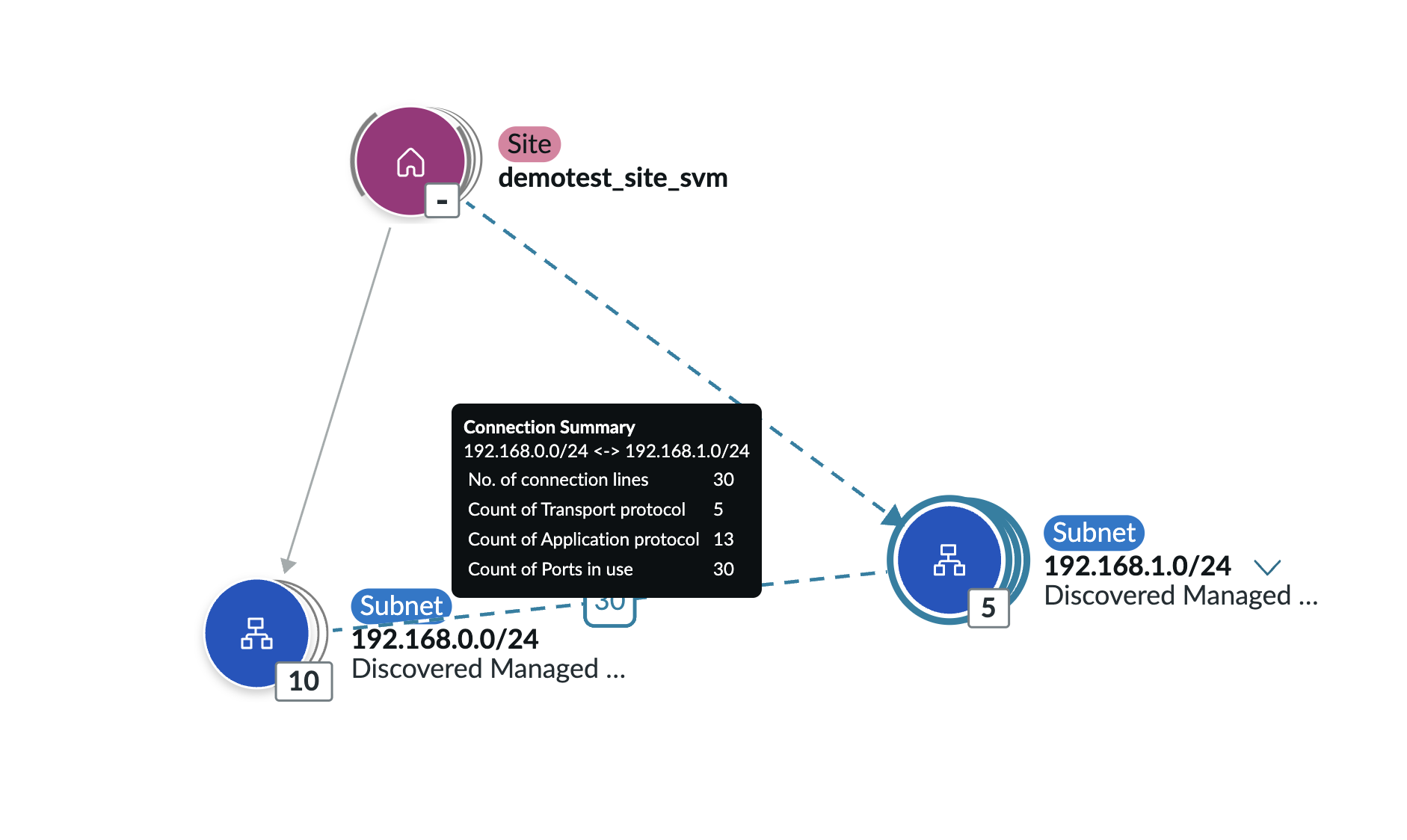

8. To view the Connection Summary between subnet nodes, hover over the dashed line between the nodes as shown in the following image.



9. To expand a subnet and view its individual device nodes, select the number on the subnet node.

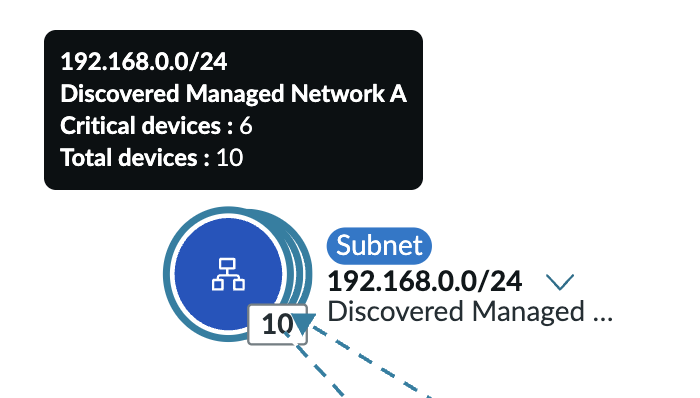

   The number on the subnet node represents the total number of devices in the subnet. The following image shows an example of the device number.



   注:

   You can only expand one subnet at a time. For example, if Subnet A is expanded and you try to expand Subnet B, Subnet A automatically collapses.
10. To set a device node as the home node, complete the following steps.

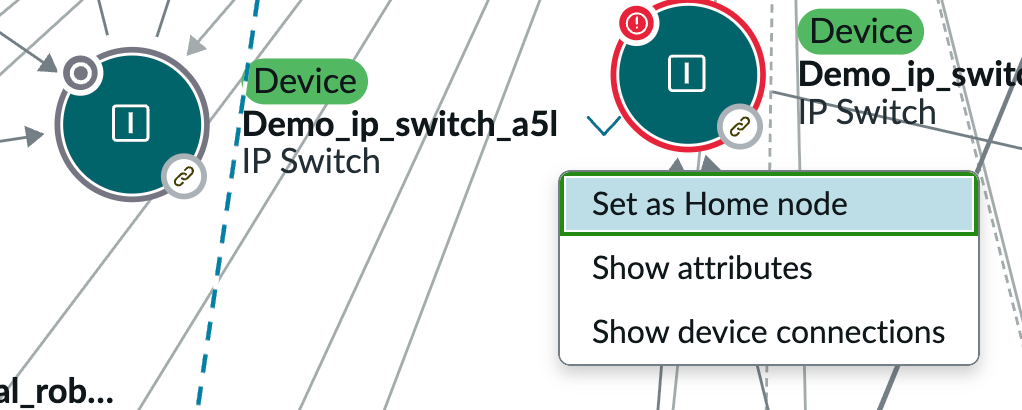

    1. To access the contextual actions, right-click the node or next to the device node name, select the dropdown.
    2. Select Set as Home node.

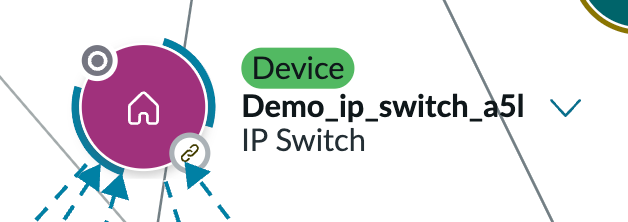

       The selected device node is set as the home node and the node icon changes as shown in the following image.



11. To view the attributes for a device node, complete the following steps.

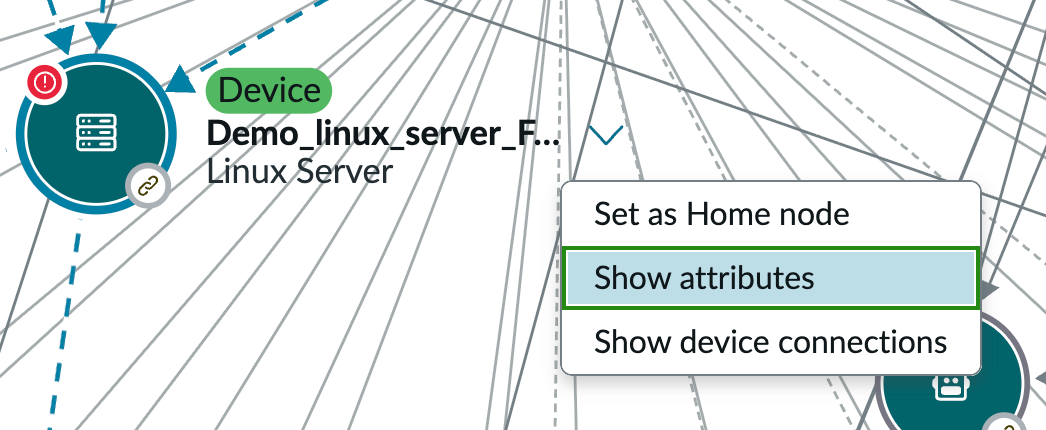

    1. To access the contextual actions, right-click the node or next to the device node name, select the dropdown.
    2. Select Show attributes.



       A side panel opens that shows the following attributes for the selected device node:

       • Class
       • Updated
       • Location
       • Owned by
       • Most recent discovery
       • Discovery source
12. To view the device connections for a device node, complete the following steps.

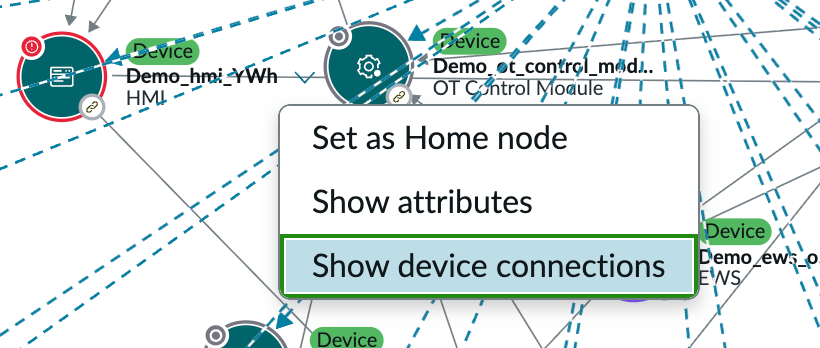

    1. To access the contextual actions, right-click the node or next to the device node name, select the dropdown.
    2. Select Show device connections.



       The network map updates to highlight the device-to-device connections and to show both connections within the same subnet, represented by a solid line, and cross-subnet connections, represented by a dashed line.

    3. To see the Device connection summary details, hover over the IP address on the dashed line or hover over the solid line.

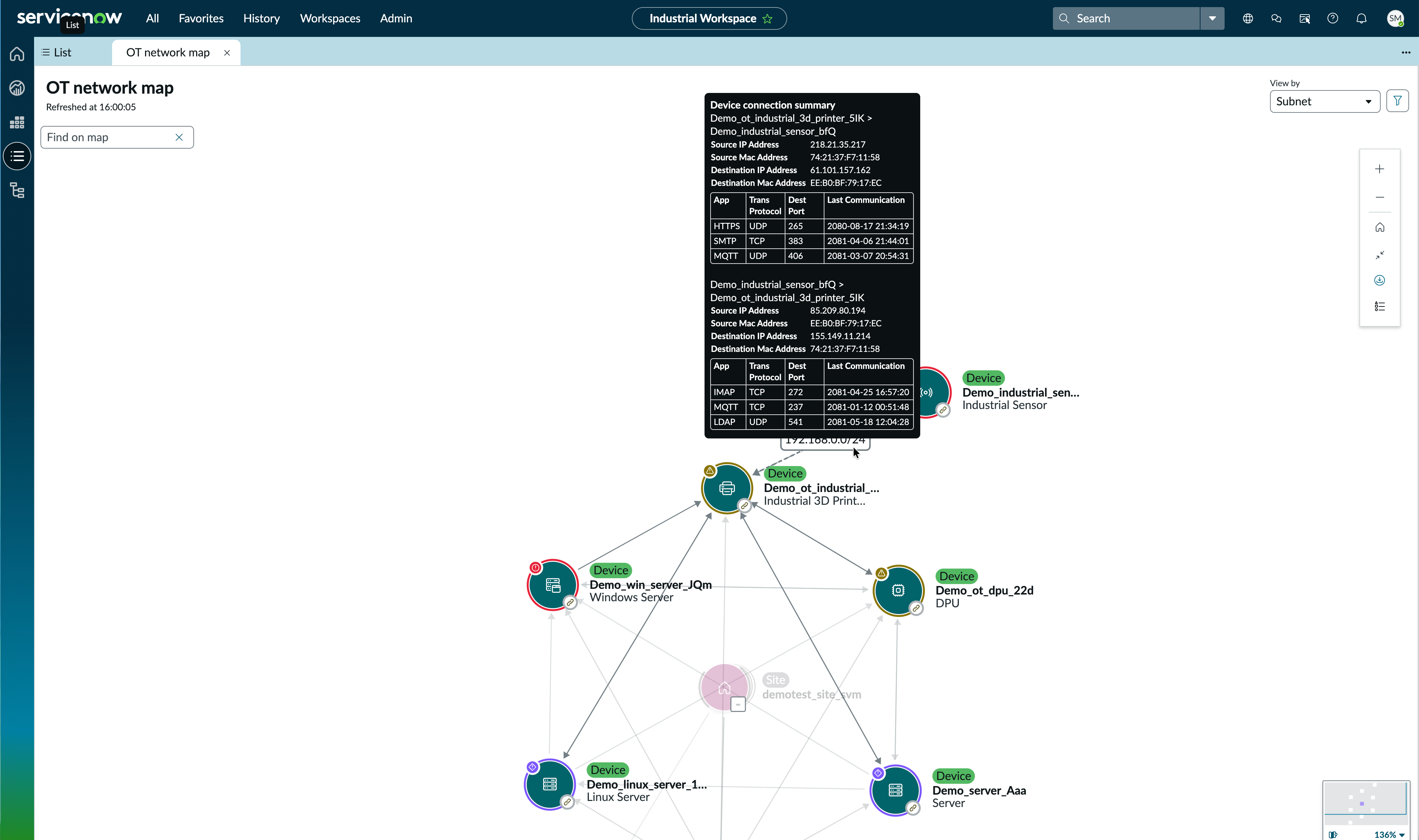

       The following image shows an example of the device connection summary on the dashed line.


    4. To escape this view, select the dropdown again and click Hide device connections.
13. To apply filters to the map to refine the nodes shown, complete the following steps.
    1. Select the Filters icon.
    2. Select or deselect the options available under the following filter categories.

       表 : 1. OT Network Map filters

       Filter	Description
       Class	The name of the assigned class for the OT device.
       Criticality	The measure of the relative risk to the site process due to failure of the device.
       Manufacturer	The device manufacturer.
       Purdue level	The assigned Purdue level. Ranges 0–5.
       Discovery source	The Discovery source for the OT device data.

    3. Select Apply.
    4. To return to the default settings, select Reset filters and click Apply.
14. To search for a subnet, device node, managed network, and so on in the node map, use the Find on map search bar.
15. To align the map back on the home node, select the Align to home node icon in the control panel.
