Results page

  • リリースバージョン: Australia
  • 更新日 2026年03月12日
  • 所要時間：3分

    • The Results page provides the results from your queries in the Discovery Console for OT.

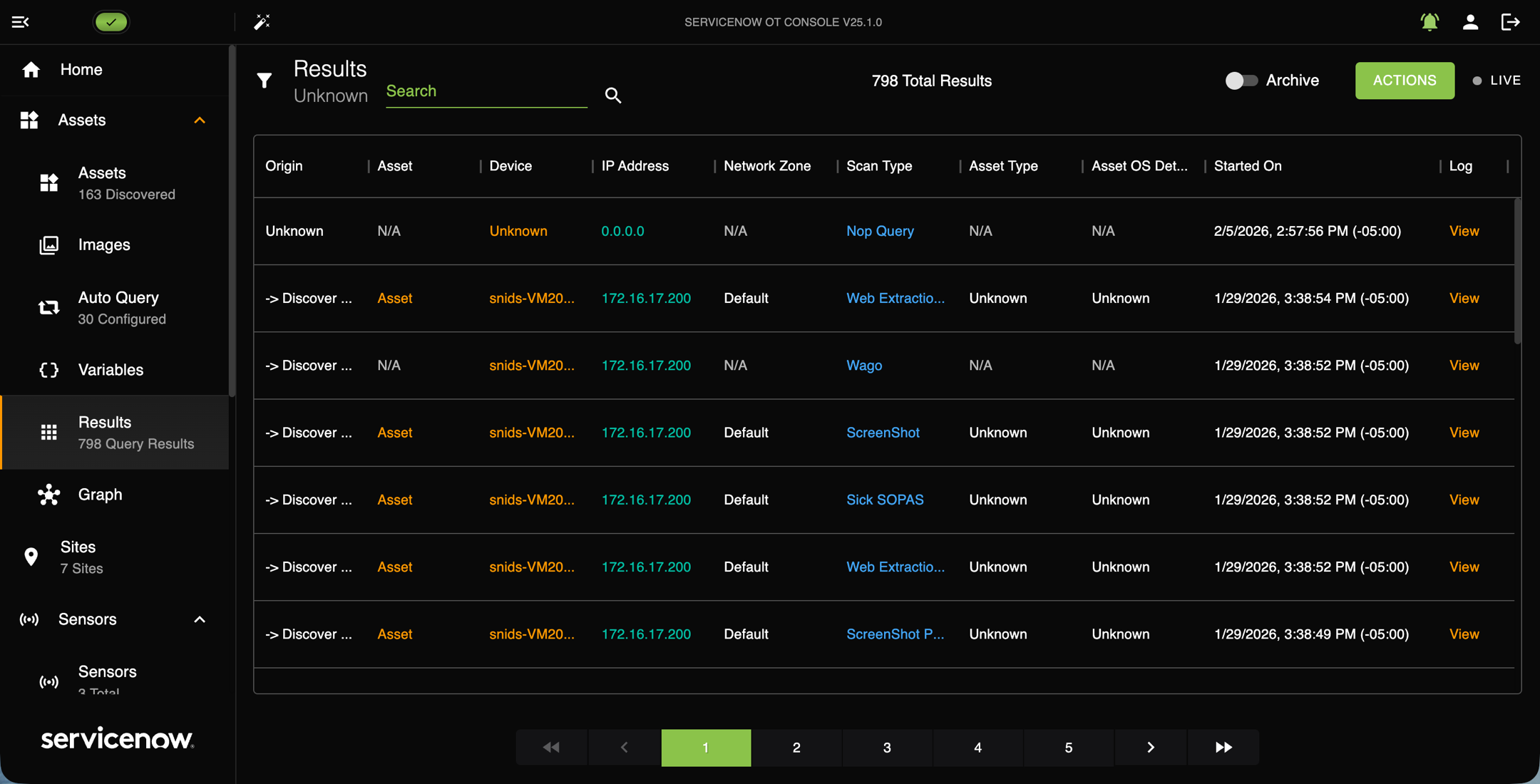

    The Results page contains a list with all the scan results in the system. Each scan is displayed along with the associated Device, IP Address, Network Zone, Scan Type, Asset Type, Asset OS Details, Started On, and Log. The following image shows an example of the Results page.


    Results page

    To access the Results page, navigate to Home > Assets > Results

    To find a specific scan, you can enter text into the Search bar on the top of the page under the Results heading.

    To filter the scan results, select the Add Filter icon at the top of the page and adjust the filters.
    注:
    If you Console license is invalid (absent or expired), the exporting of raw XML results is blocked.

    Result filters

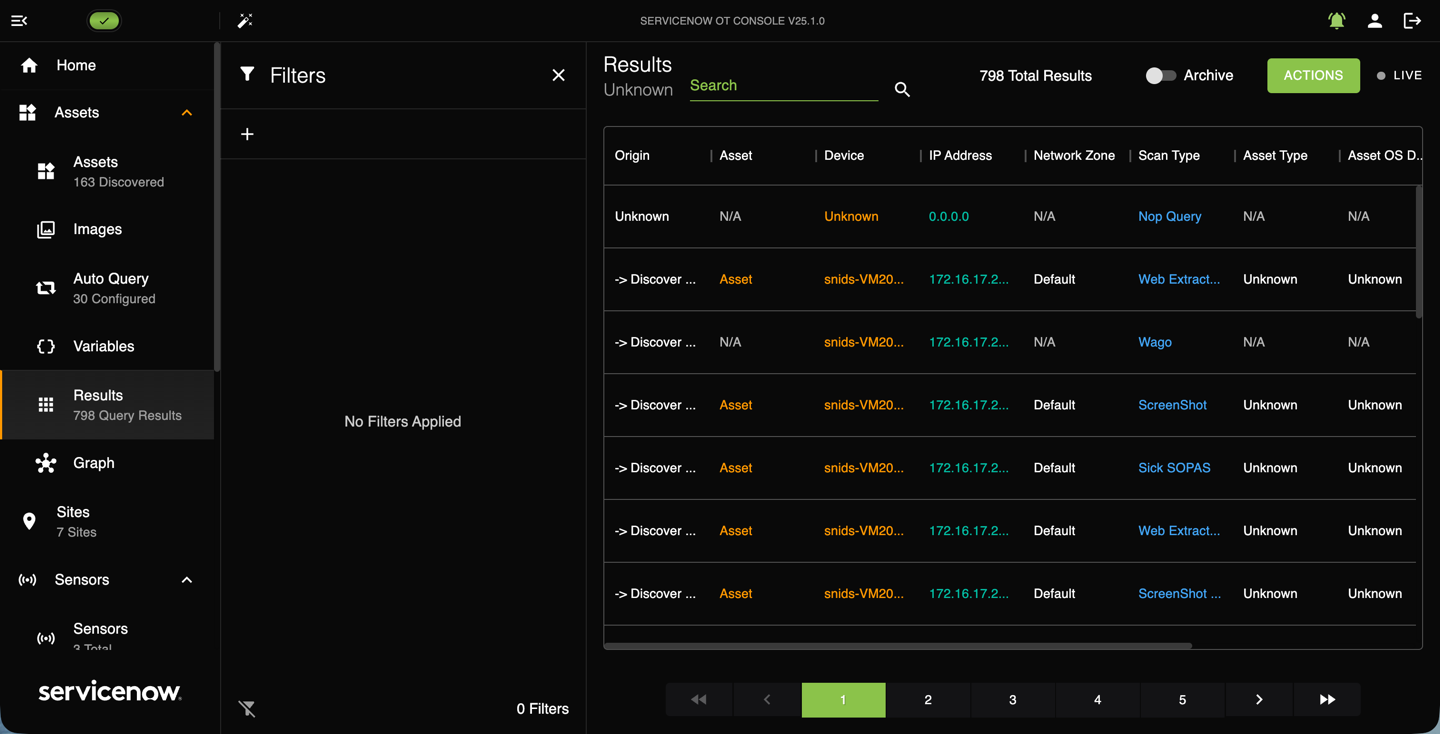

    The filter panel provides selections to filter the query results for specific information.
    Filter panel

    See Filter results for more information.

    Viewing results

    On the Results page, you can view details of a result by selecting column entries.
    Asset
    Selecting an asset name in the Asset column opens the asset editing window. This view has three tabs, Details, Image, and Module On the Details tab you see Identification, Classification, Timeline, and other detailed sections. You can select Edit if you need to change any of these settings. If there is an image attached, it displays in the Detail and Images tabs. The Modules tab displays specific information about system modules, such as if the asset is a CPU or PLC, and the manufacturer's name.
    Device
    The Device column lists the name of the Sensor used during the query. Selecting the Sensor name from this column allows you to edit the information and configuration of the query Sensor.
    Log
    Select View in the Log column and the query log displays. You can copy the log for later use, or if needed for troubleshooting.

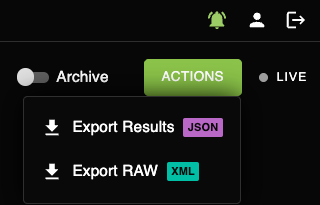

    Action button

    The Results page Action button lets you export the scan results. You can Export Results in JSON format or Export RAW in XML format.


    Results page Action button

    The RAW data format is useful for debugging and verification.
