Define ERP source configuration for Oracle EBS

  • 릴리스 버전: Australia
  • 업데이트 날짜 2026년 03월 12일
  • 소요 시간: 3분

    • ERP source configuration determines the ERP source to which your ERP system connects. Map the integration payload with the Oracle EBS tables.

    시작하기 전에

    Role required: sn_shop.procurement_administrator

    이 태스크 정보

    By default, the base system includes one ERP source named Oracle EBS, which refers to the parent connection for Oracle EBS. If there are multiple Oracle EBS instances, multiple ERP sources must be configured, and the child connections for these Oracle EBS instances should be referenced.

    Each ERP instance requires a unique ERP source configuration. Therefore, 10 ERP instances need 10 configurations.

    프로시저

    1. Navigate to All > Finance – ERP Integration > ERP Source Configuration.
    2. In the ERP Configurations view, select Oracle EBS.

      This configuration is available as a part of the base system.

    3. To edit the ERP source, select here.
    4. Select the required ERP source for the Oracle EBS using the search option.
    5. To create a new ERP source, perform the following steps:
      1. Select New.
      2. On the form, fill the fields.
        표 1. Define a new ERP source configuration
        Field Description
        ERP Source ERP source for which the integration is required. For example, Oracle EBS.
        Short Description Summary of the ERP source.
        Active Option to activate the ERP source.
        Amount Precisions Amount precision of the ERP source. For example, 2.

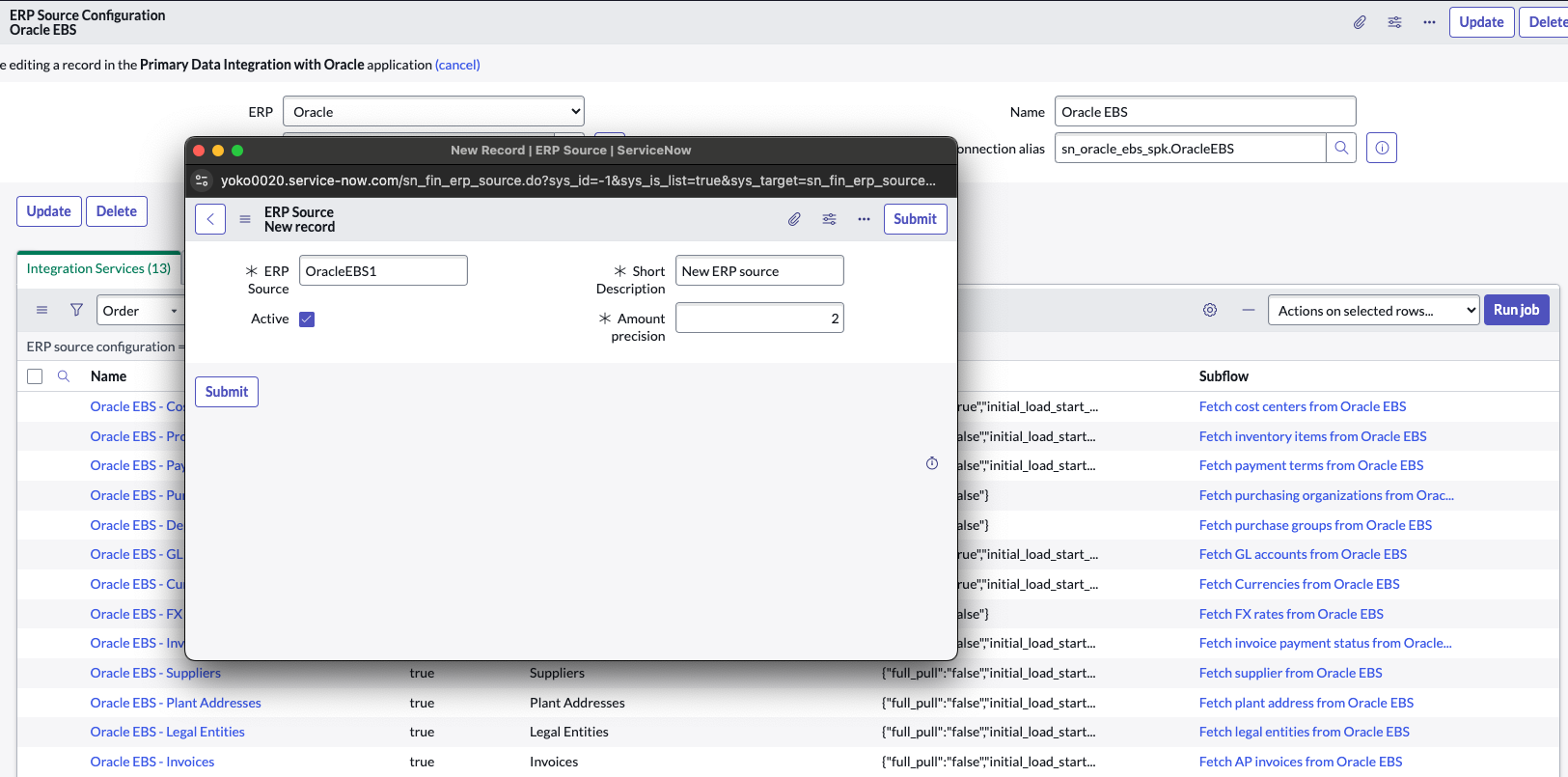

        그림 1. Define a new ERP source configuration for Oracle EBS
        Define a new ERP source configuration for Oracle EBS
      3. Select Submit.
        A new ERP source is created. Verify that the connection alias is also unique for each ERP source.
        주:
        Oracle EBS integration can have multiple ERP sources. The Staging table displays the ERP source column, which you can use to distinguish which ERP the data belongs to.

    다음에 수행할 작업

    By default, the Oracle EBS base system provides 13 service mappings. For other Oracle EBS instances, you need to perform the following:
    • Define service mappings manually for each integration service by accessing the Service Mappings related list. You can define element level mapping between Oracle EBS table fields and payload elements.
    • Map the users and corresponding ERP User IDs by accessing the ERP User Mappings related list.
