Supplier Lifecycle Operations data model

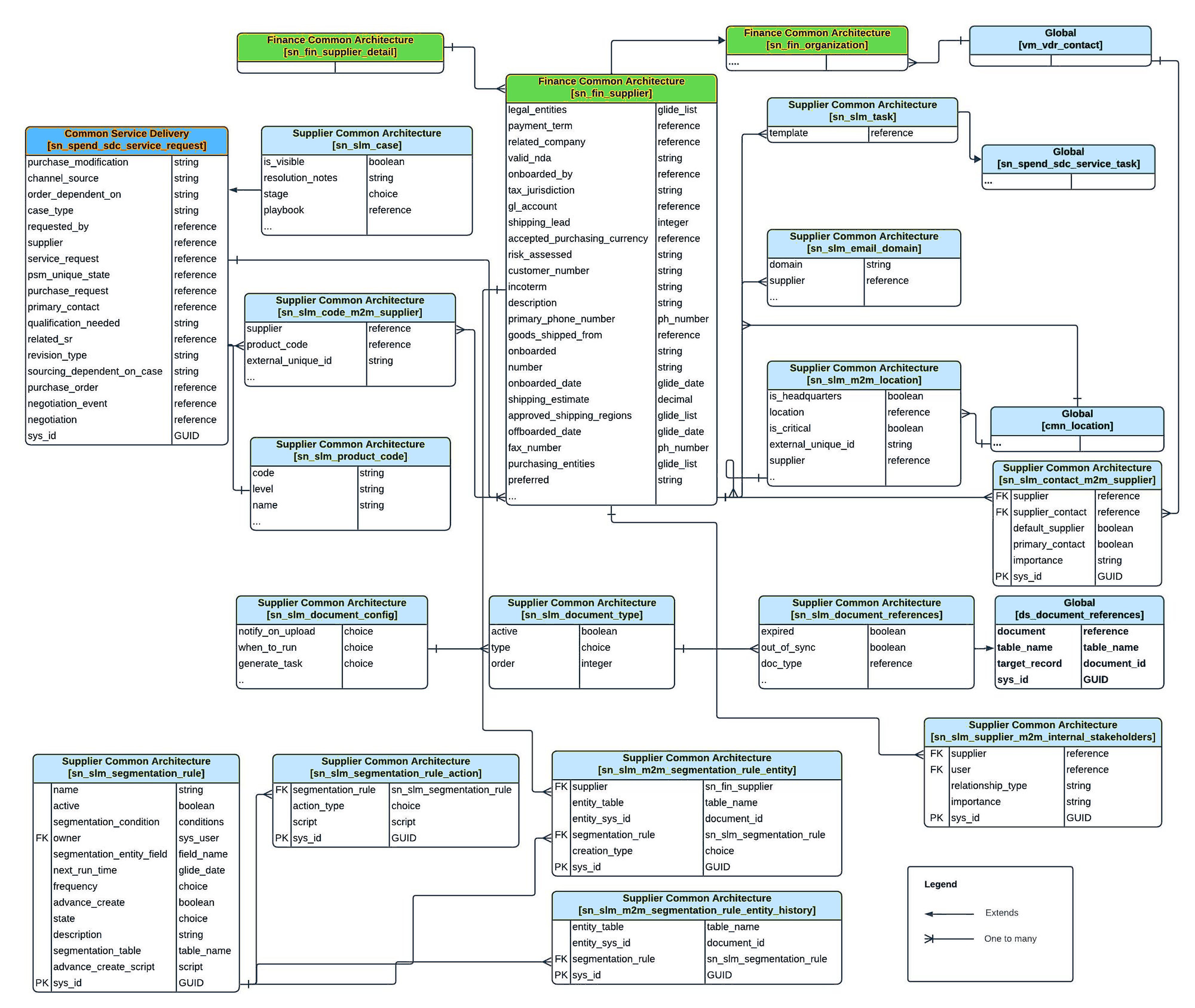

The following diagram shows the tables and their relationships that comprise the Supplier Lifecycle Operations data model.

그림 1. Supplier Lifecycle Operations data model

주:

The table Supplier Contact [sn_slm_contact_m2m_supplier] is added after the Xanadu December 2024 release.
