Dependency Assessment tree view
The tree view enables admin users to see the relationships between PA entities and to know the impact of changes made to any node in the tree view hierarchy.

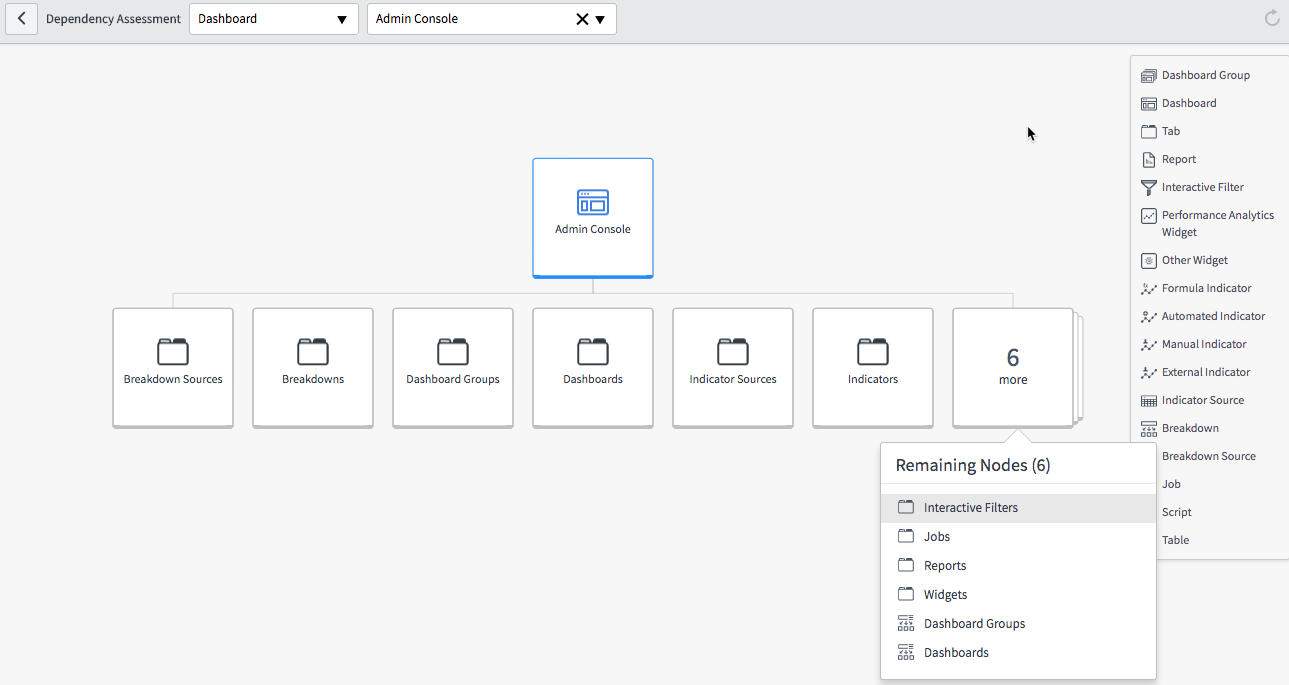

The Dependency Assessment tree view consists of a variety of possible nodes and a legend. The nodes represent Performance Analytics entities. Point to a node and the node's type is highlighted in the legend. When you click on a node in the tree view, the child nodes open. If there are more than eight nodes in a level of the tree view, then six are shown and a seventh node indicates how many nodes are not shown. Click this node to view a list of the other nodes.
The tree view header contains choice lists for changing the PA entity type and a value. The
tree view updates according to your choices.
Click the reset button (
) to return the tree view to the starting point with just the first level parent and its
immediate child nodes.
Each node has a context menu (
) where you can choose from a number of actions. Choose Show Used
By to change the tree view to show where a node is used in your instance. See Bottom-up tree view for more information.

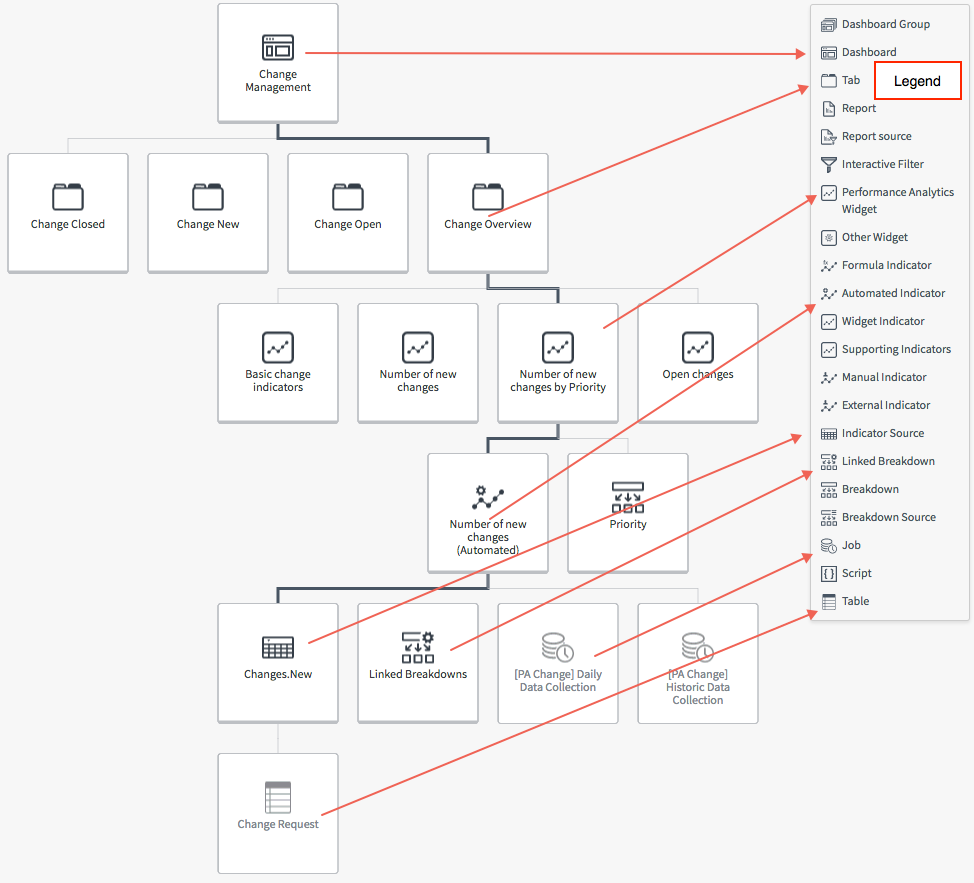

The figure below gives an example of the top-down tree view, starting from a dashboard at the top level, its tabs on the second level, the widgets of one of the dashboard tabs on the third level, and so on. The tree view in the example shows all breakdowns and supporting indicators as they are defined in the Breakdown form.
