Bind non-host CIs using CI field matching

If no match is found using the Node field, the system uses the CI identifier field to match alerts with non-host CIs based on attributes like Name, FQDN, IP, or MAC. This ensures accurate alert association, improving visibility, troubleshooting, and root cause analysis for diverse infrastructure components.

始める前に

Role required: evt_mgmt_admin

このタスクについて

If no match is found using the Node field, the system looks at the Additional information field of the alert. When you select a CI type, such as File System, the system automatically searches for a matching record in the [cmdb_ci_file_system] table. It uses the details provided in event rule record, specifically in the Additional information field, to refine the search. For example, if the Additional information field contains values like {"mount_point": "/snap/amazon-ssm-agent/9565", "name": "/dev/loop0"}, the system looks for a record in the [cmdb_ci_file_system] table that matches these values. If a match is found, the system binds the CI to the alert, ensuring accurate identification and association. Similarly, if the CI type is Network Adapter, the system searches in the [cmdb_ci_network_adapter] table.

There may be cases where no match is found because the column names in the event record and the table differ for the same item. In such cases, you can manually create an additional key-value pair with a name matching the table column, ensuring the matching process continues successfully. For information on how to create a manual field, see Bind CIs using CI field matching and handling column name differences.

手順

1. Navigate to All > Event Management > Rules > Event Rules.
2. Select New and complete the required fields of the event rule.
3. Select the Binding tab.
4. Select the Override default binding check box.

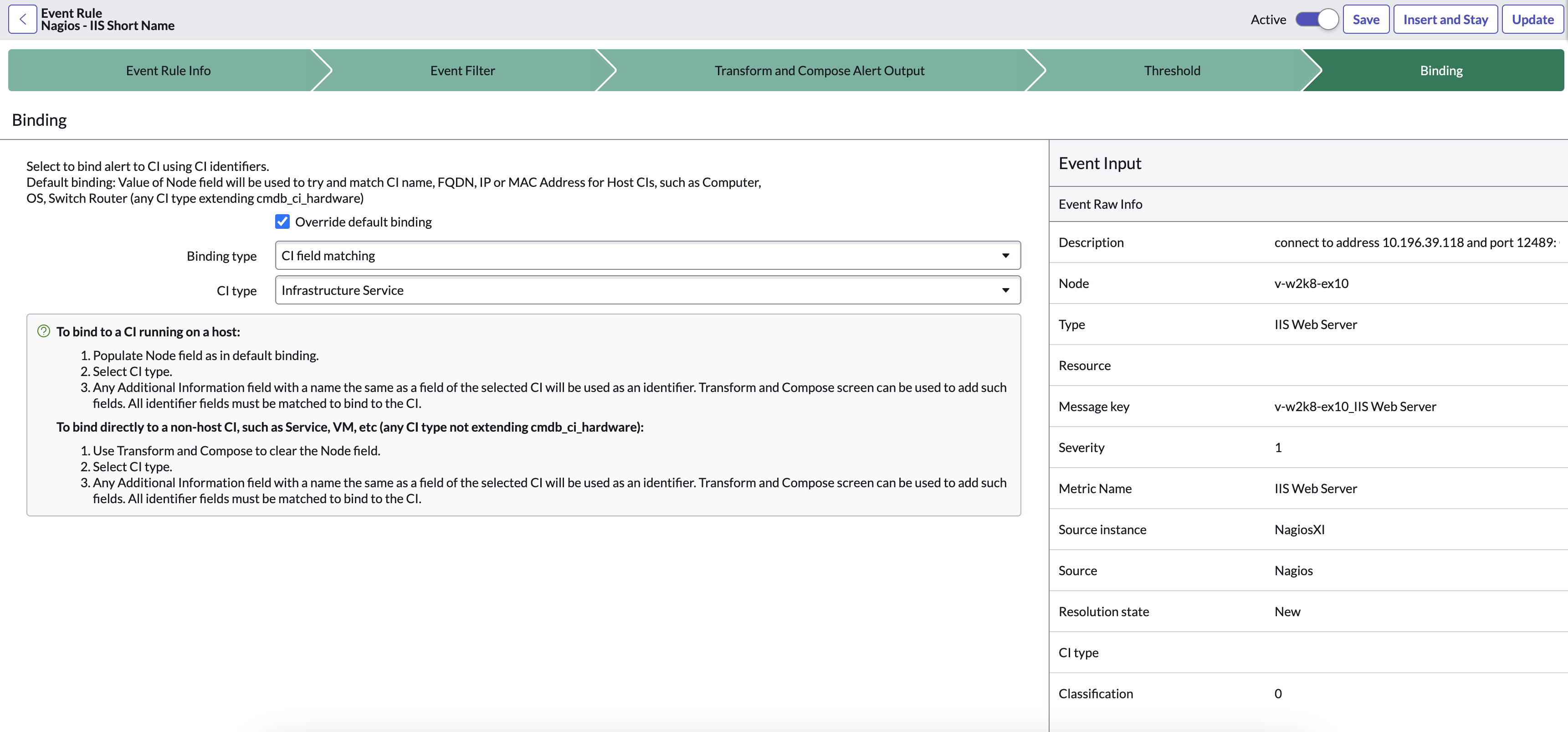

5. In the Binding type field, select CI field matching.



6. Select the Transform and Compose Alert Output tab.

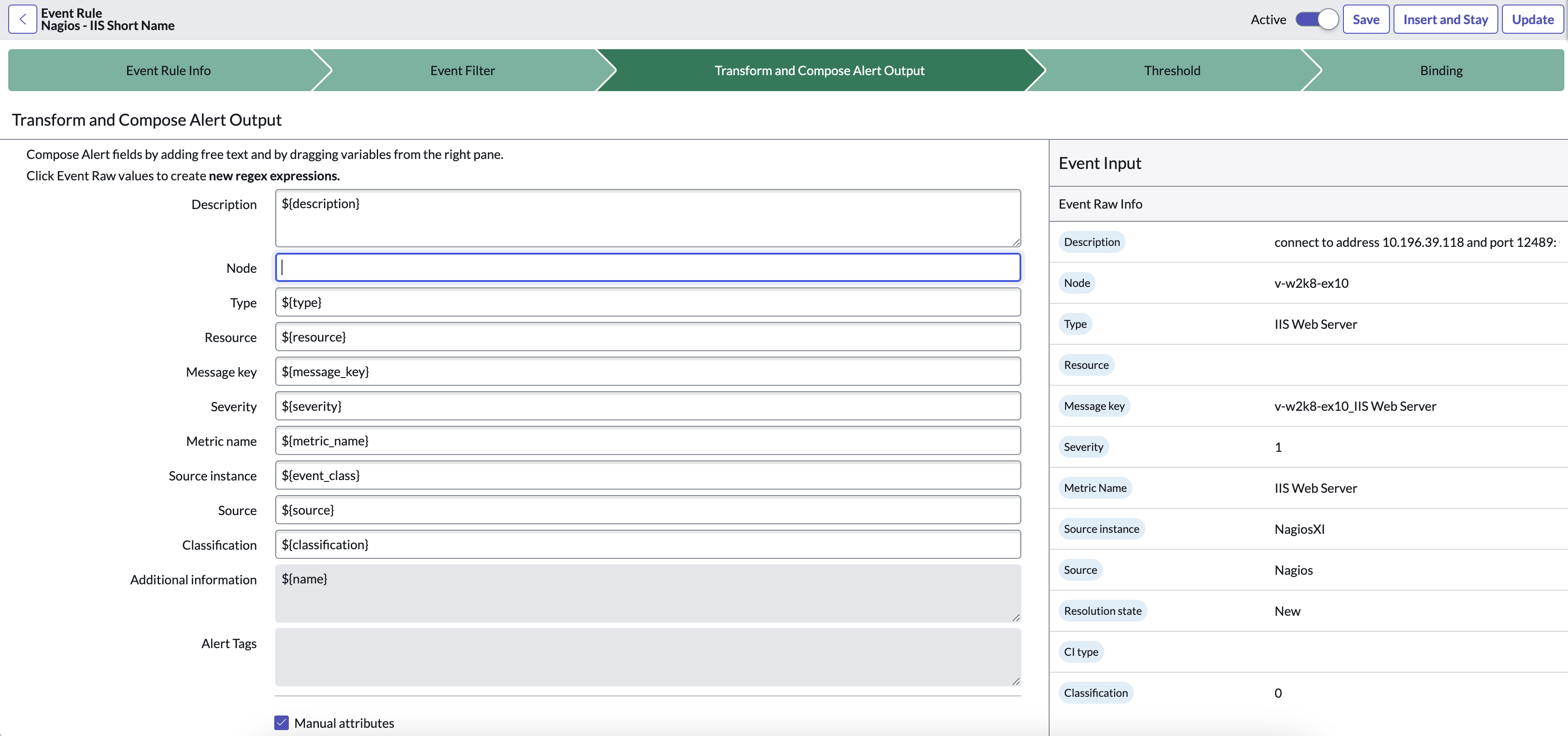

7. Clear the Node field value.



8. In the CI type field, select the non-host CI.

   A non-host CI type is any CI type that does not extend the [cmdb_ci_hardware] table, such as a Service or VM. The CI type determines the specific CMDB table where the system searches for the matching CI.

9. Select Save.
