Summary and Insights page

  • Release version: Xanadu
  • Updated August 1, 2024
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Summary and Insights page

    The Summary and Insights page, accessible from a Process Mining project, provides a centralized dashboard to monitor and optimize your business processes. It displays key project metrics and visualizations that help you analyze process performance and identify improvement opportunities.

    Show full answer Show less

    Key Features

    • Project Metrics Dashboard: Includes a time series graph showing average completion times over time and a histogram displaying the distribution of record completion times.
    • KPI Dashboard: If configured in the project setup, you can switch to view KPIs relevant to your business process via the Project Metrics drop-down.
    • Process Graphs: Administrators can configure process graphs in the Process Mining Workspace for enhanced visualization of workflows.
    • Improvement Opportunities Overview: Summarizes project statistics and highlights areas where the process can be optimized.
    • Variation Analysis: Enables comparison between different process variants. You can filter, sort, and select variants to view detailed process graphs in the Analyst Workbench.
    • Opportunities Section: Displays a detailed, sortable, and filterable list of rule-based and automated improvement opportunities categorized by status (new, under review, archived). Users can access detailed information, take actions on opportunities, and configure new improvement opportunities directly through a linked project builder interface.
    • Integration with Performance Analytics Dashboards: Allows inclusion of custom KPIs and visualizations by linking Performance Analytics dashboards at the project or process configuration level. Dashboards can be tailored with custom widgets to meet specific project needs.

    Key Outcomes

    • Gain comprehensive insights into process performance trends and bottlenecks through visual dashboards.
    • Identify and manage improvement opportunities efficiently with detailed tracking and actionable information.
    • Compare process variants to understand variations and their impact on outcomes.
    • Customize KPI monitoring and reporting through integrated Performance Analytics dashboards tailored to your project’s requirements.
    • Enable administrators and project owners to configure dashboards and improvement opportunities for targeted process optimization.

    The Summary and Insights page enables you to view opportunities for optimizing your process. Access the dashboard from a Process Mining project.

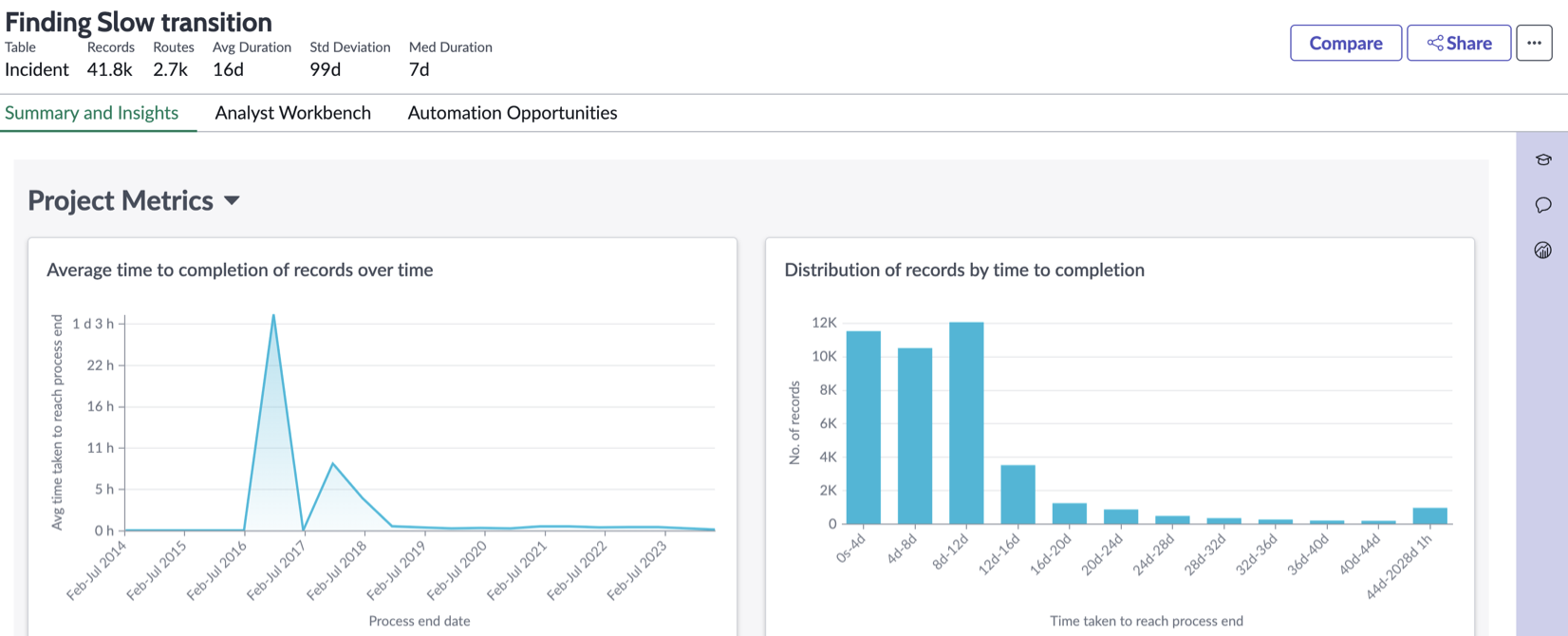

    You can view the Project Metrics dashboard where you see some initial information about your mined data. This is showcased in two graphs:
    • Time series graph: Trendline to show the average time taken for completion of records over time.
    • Histogram: Distribution of records by the time taken to reach the process end.
    Project Metrics

    If you set up a KPI dashboard in the project configuration, you can view the KPI dashboard by selecting the Project Metrics drop-down. An administrator can also configure to view a process graph from the Process Mining Workspace. When a dashboard is configured for your business process and user needs, you can see quick snapshots from these dashboard sections.

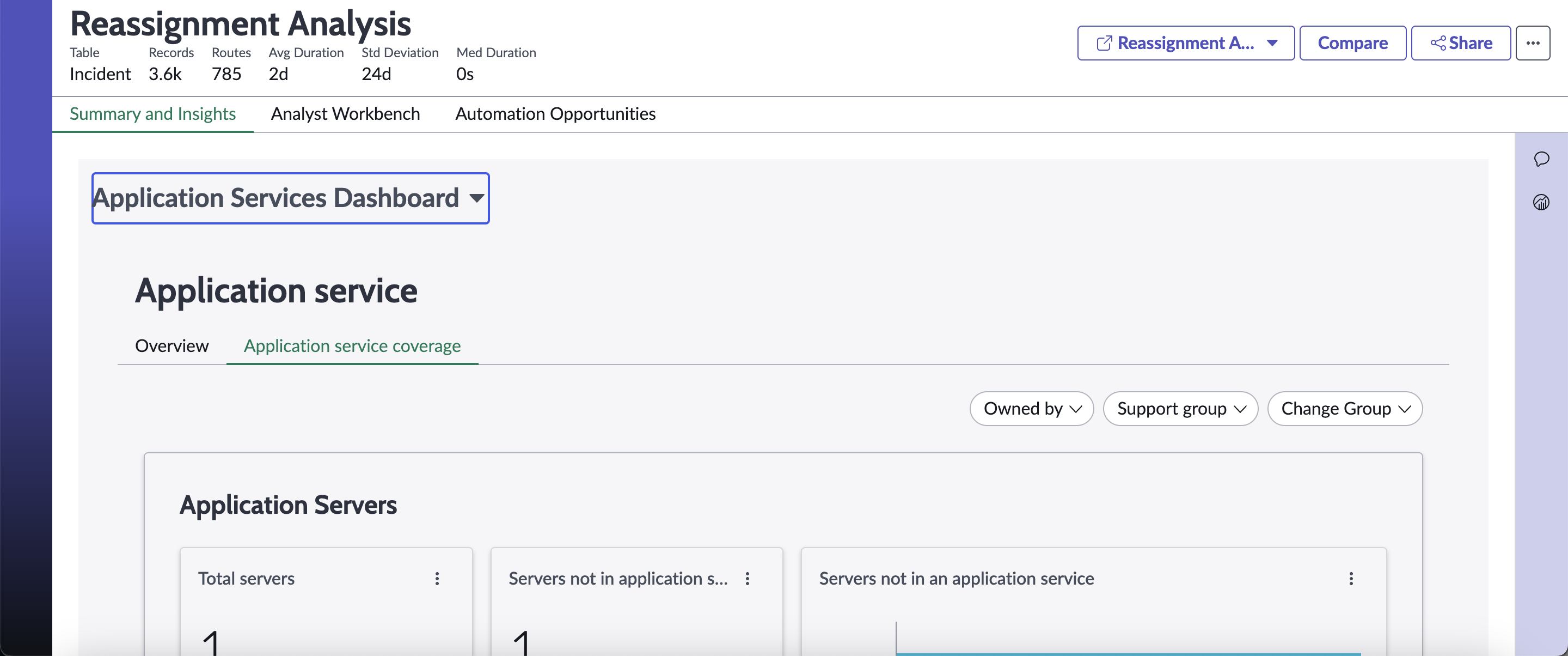

    The following figure shows the KPI Application Services dashboard, which was set up in the project configuration.

    KPI dashboard

    Improvement opportunities overview

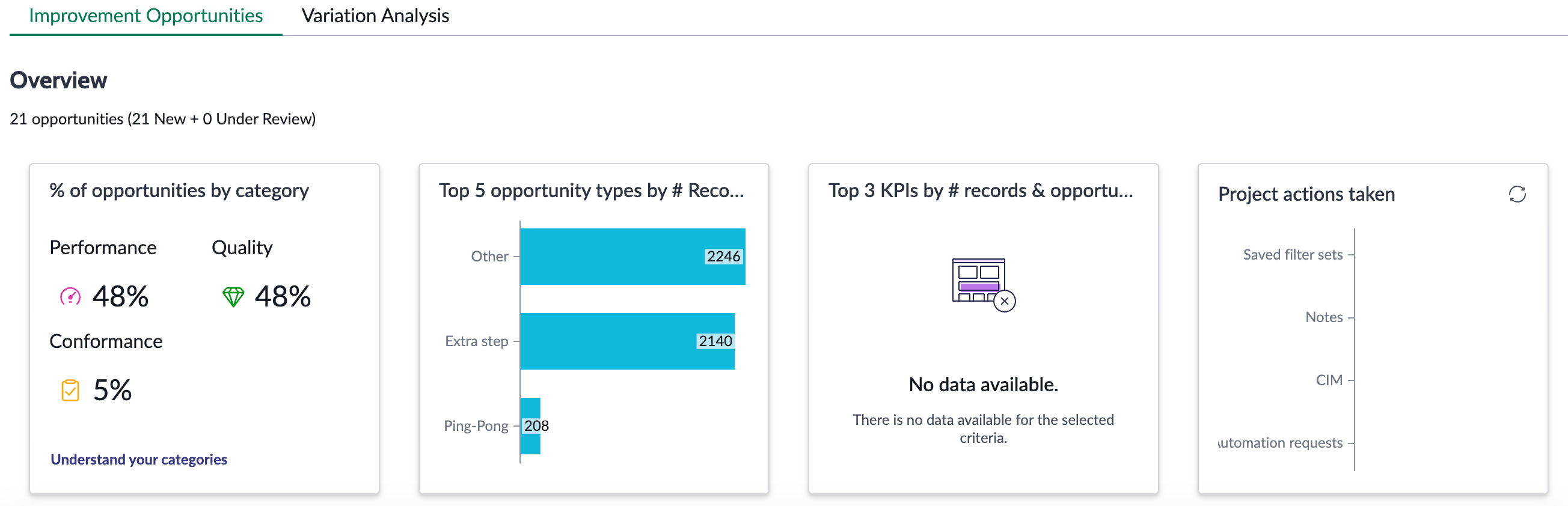

    On the Summary and Insights page, see the Improvement opportunities overview. Here you find an overview of project-related statistics that are generated on the project.

    Improvement opportunities

    Variation Analysis

    On the Summary and Insights page, you can also see the variation analysis of your data.

    Variation analysis enables you to compare different variants of a mined project and view the analysis of a selected variant.

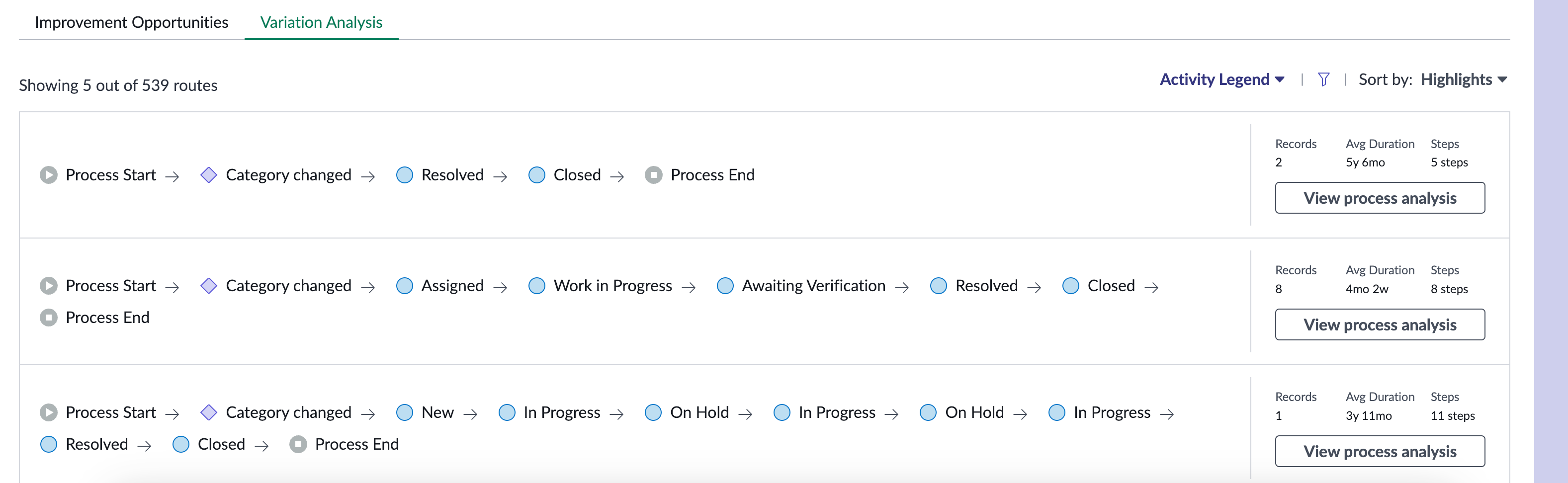

    Variation Analysis from Summary and Insights page
    • Filter the routes using the filter icon.
    • Sort the results using the Sort by list.
    • Select View process analysis to view the graph for the selected variant in the Analyst Workbench.

    Opportunities

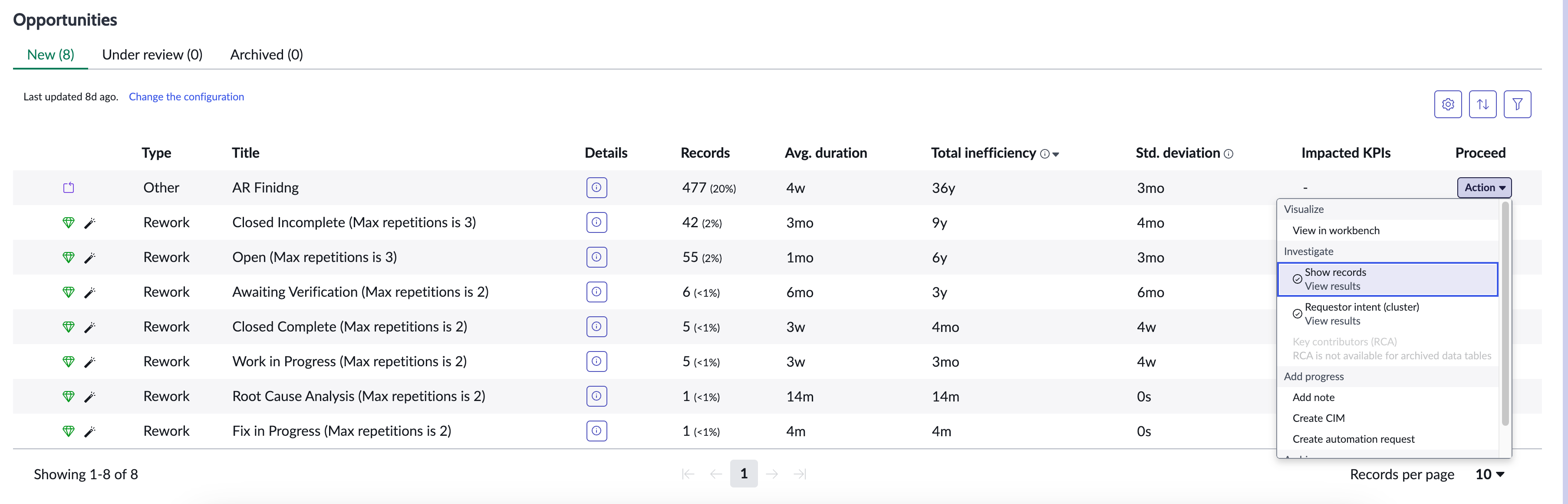

    In the Opportunities section, you can view a list of rule-based and automated improvement opportunities associated with the project.

    Improvement Opportunities

    You can view the following details:
    • Improvement opportunities that are new, under review, and archived.
    • List of improvement opportunities associated with the project with all the details.
    • Select finding details beside the title to see the details about the Improvement opportunities.

    • Select Action, and select any item from the list to see more details.

    • Select Show/hide icon to hide or show columns.
    • Select Sort to sort the columns.
    • Select Filter to filter the list of improvement opportunities.
    • Create an improvement opportunity by selecting the Change the configuration link. This link will automatically take you to the Select improvement opportunities tab in the Project Builder. For more information, see Set improvement opportunities.

    Integration with Performance Analytics dashboards

    Integrate Performance Analytics dashboards to include the KPIs and visualizations you want to see. Using the dashboard builder, you can create your own dashboards with custom widgets/KPIs specifically for your project. These dashboards can be linked at the project or process configuration level.
