Working with Image styles

  • Release version: Yokohama
  • Updated March 12, 2025
  • 1 minute to read

    • Image styles enable you to experiment with different color schemes for illustrations and replace default illustrations with your own custom images. The Image styles feature provides flexibility in customizing the visual elements of your theme.

    Empty state illustrations

    When a component or a part of your Next Experience web page doesn’t contain data, an empty state illustration appears. Empty state illustrations are theme-able, and adapt to the theme colors of your instance.
    Important:
    Empty state illustrations apply to Workspaces and are not supported in the Core UI.

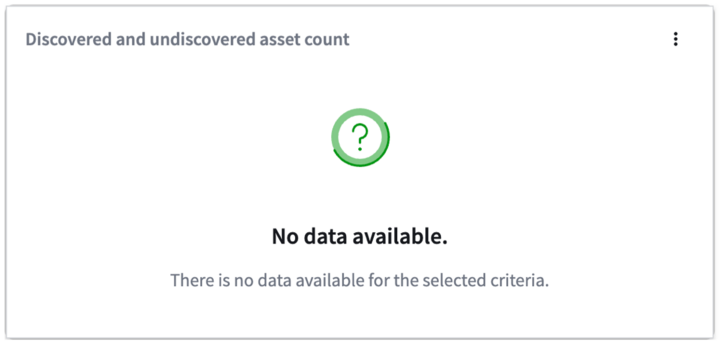

    Figure 1. Empty state illustration
    No data available empty state illustration.
    The Image styles feature offers the following types of empty state illustration types, each including a small, medium, and large version:
    • Add attachment
    • Add data
    • Completed tasks
    • Completed tasks
    • Error
    • First time user
    • Interrupted
    • No activities
    • No data
    • Completed tasks
    • No permission
    • Completed tasks
    • No search results
    • Completed tasks
    • Offline
    • Unconfigured

    Custom images

    Upload your custom images to Theme Builder to replace the default empty state illustrations.

    To override the default empty state illustrations with custom images, upload each image size individually. You can choose to override just one size or all three sizes of an empty state type. The size and format limitations for each of the three file sizes are as follows:
    Table 1. Small image size and format limitations
    Field Description
    Dimensions limit w56 x h56 px
    Format SVG
    File size limit 2 MB
    Table 2. Medium image size and format limitations
    Field Description
    Dimensions limit w216 x h168 px
    Format SVG
    File size limit 2 MB
    Table 3. Large image size and format limitations
    Field Description
    Dimensions limit w350 x h318 px
    Format SVG
    File size limit 2 MB
    Empty state illustrations are dependent on two design tokens that handle their color:
    • --empty-state--main-object--fill
    • --empty-state--main-object—outline
    Custom images don't automatically reflect your theme colors. To make your image theme-able, add these tokens to your code using your preferred text editor before uploading the custom SVG to Theme Builder. After adding these tokens to your image code, the images will adopt your theme colors and enable you to edit the colors when uploaded to Theme Builder.
    The following example shows the design tokens applied.
    <style>
    .main-object--outline {
        fill:rgb(var(--empty-state--main-object--outline, var(--main-object--outline, var(--now-color--interactive-3, 51,53,123))));
    }
    .main-object--fill {
        fill:rgb(var(--empty-state--main-object--fill, var(--main-object--fill, var(--now-color--interactive-1, 144,146,213))));
    }
  </style>
