Create a flow with Now Assist

Use generative AI to create a flow from text directions.

Before you begin

• Roles required:
  • admin, flow_designer, or a delegated developer permission
  • now.assist.creator
• Turn on the flow generation skill. See Turn on the Flow generation skill.

Procedure

1. Navigate to All > Process Automation > Workflow Studio.
2. From the Workflow Studio home page, select New > Flow.
3. Select the Build with Now Assist tab.

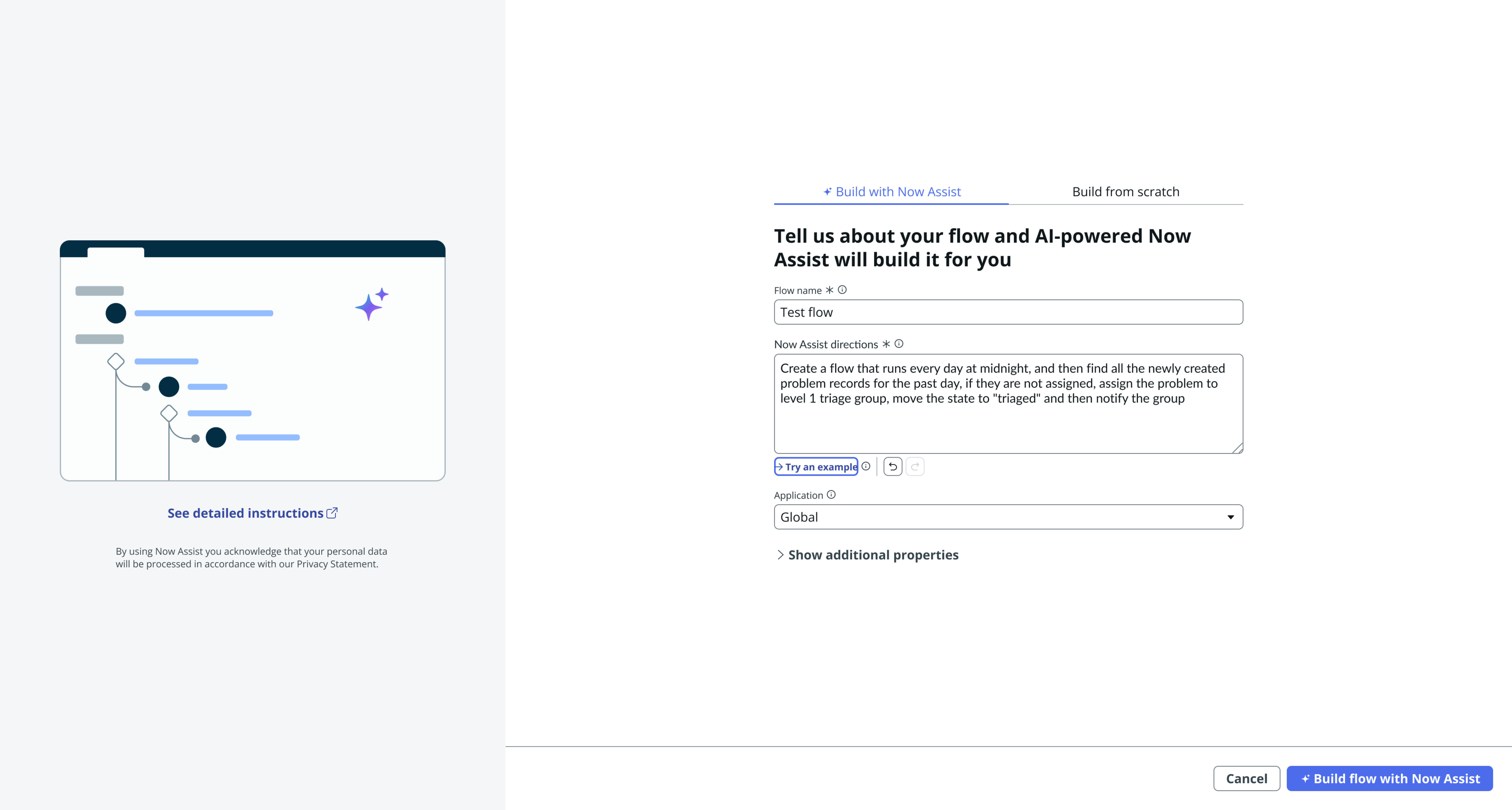

4. Fill in the fields to build your flow.

   Field	Description
   Flow name	Name to uniquely identify your flow. The system converts the flow name into an internal name by replacing space characters with underscore characters.
   Now Assist directions	Text used by Now Assist flow generation skill to create your flow. Describe the flow trigger and its data first. Then describe all the actions and flow logic in the order you want them in the flow. Include as much detail as possible for the best results.
   Try an example	Series of text examples to insert into the Now Assist directions field. Select this option to insert example text in the directions field. Each example illustrates directions that will build a flow outline. Trying an example overwrites any directions text that you previously added. You can use the undo and redo options to revert to your previous directions.
   Application	Application scope to create your flow in. Global is the default. The application scope determines what data your flow can access and what data it can share. Important: You can’t change the application scope of a flow after you’ve generated a preview for it.

   Follow these general guidelines when writing Now Assist directions.

   Always describe the trigger first

   Describe the flow trigger and its data conditions first. After the trigger, describe the actions and flow logic in the same order that you want them to be in the flow.

   Be precise and descriptive in your request

   Make sure that your request is precise and descriptive. Describe the flow trigger, record data, actions, and flow logic in as much detail as you can.

   Review generated flow outline and configure inputs

   Review each action, flow logic, and subflow in the generated flow outline. You must configure action inputs, and add relevant data references to each item.

   Table 1. Show additional properties

   Field	Description
   Protection	Selection to specify if the flow is read-only. You can only select a value when you create the flow in an application scope that you own.
   Run as	Option to specify the user that runs the flow. You can select the system user or the user who initiates the session. Select the user who initiates the session option when updates should come from the user who triggered the flow. For example, use this option when you want the incident record comments to come from the user who started the flow. Settings for the Run as option in a flow don't apply to child subflows. Note: By default, flows run as the user who initiates the session. To create a flow that can run with a personal OAuth token, select the user who initiates the session option. If the user who is running the flow has a personal OAuth token, the flow runs with that token. For more information about creating a personal OAuth token, see OAuth 2.0 credentials. When flows run as the user who initiates the session, the system limits flow actions by user ACL restrictions. Ensure that security restrictions don't prevent users who trigger the flow from performing flow actions. Flows run by the initiating user also respect user-specific settings such as date/time formats. Note: Inbound email flows ignore this setting and always run as the user who initiates the session. To test access controls for an inbound email flow, impersonate a typical inbound email user and manually trigger the flow.
   Run with roles	Roles that the flow runs with. This option is only available when Run as is set to user who initiates the session. You can add one or more roles that the flow can use to access data. These roles only apply to running the flow. For example, add the itil role to flows that need to access ITSM data.
   Flow Priority Default	Priority level at which you want the system to run this flow by default. Options include: Low Medium (Default) High To learn about flow priority levels, see Flow priority.

5. Optional: Select the Try an example option to insert a valid example of flow directions.
   Each time you select the option, the system inserts a different example of flow directions text. There are three example directions to choose from. Each example direction produces a different type of flow. Selecting Try an example overwrites any directions text that you previously added. You can use the undo and redo options to revert to your previous directions.
6. Select Build flow with Now Assist.

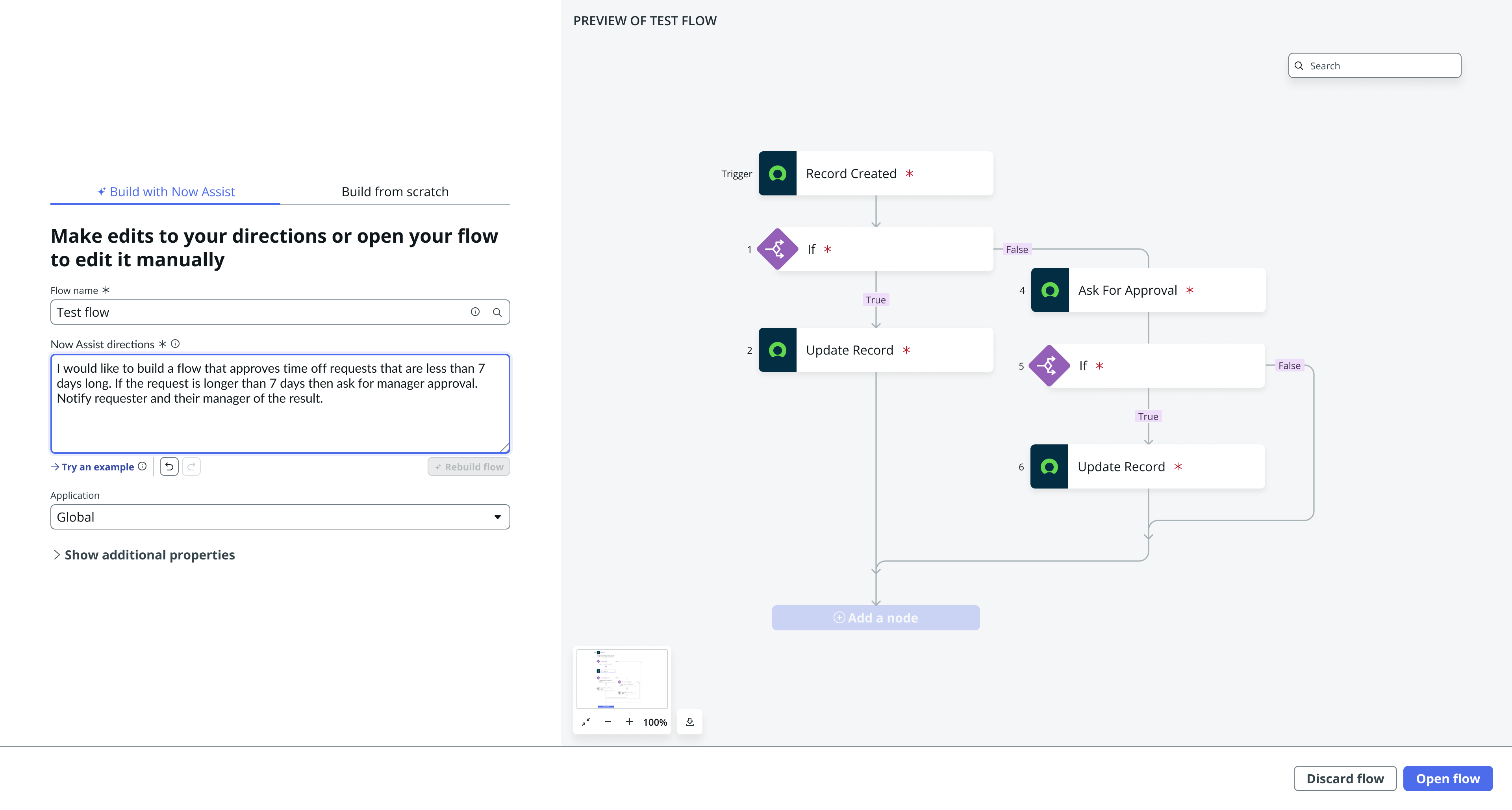

   Workflow Studio uses your text directions to build a flow outline. If successful, Workflow Studio displays a preview of the flow in the diagramming view.



7. Optional: If the generated flow preview does not meet your needs, you can update the Now Assist directions, and select Rebuild flow.
   Each time you build or rebuild a flow, the operation counts as an assist tracked by your Now Assist subscription. To track your Now Assist usage, see .
8. Optional: If you want to stop creating a flow and return to the Workflow Studio homepage, you can select Discard flow.
   Important:

   Workflow Studio does not save flow previews. If you discard a flow, all information about it is lost.
9. Select Open flow, and review the flow outline.
   Note:

   Opening a flow does not count as an assist.

Result

Now Assist creates a flow outline with the name you provided. If the large language model couldn't find a matching action, flow logic, or subflow for your request, it may add one or more placeholder steps instead.

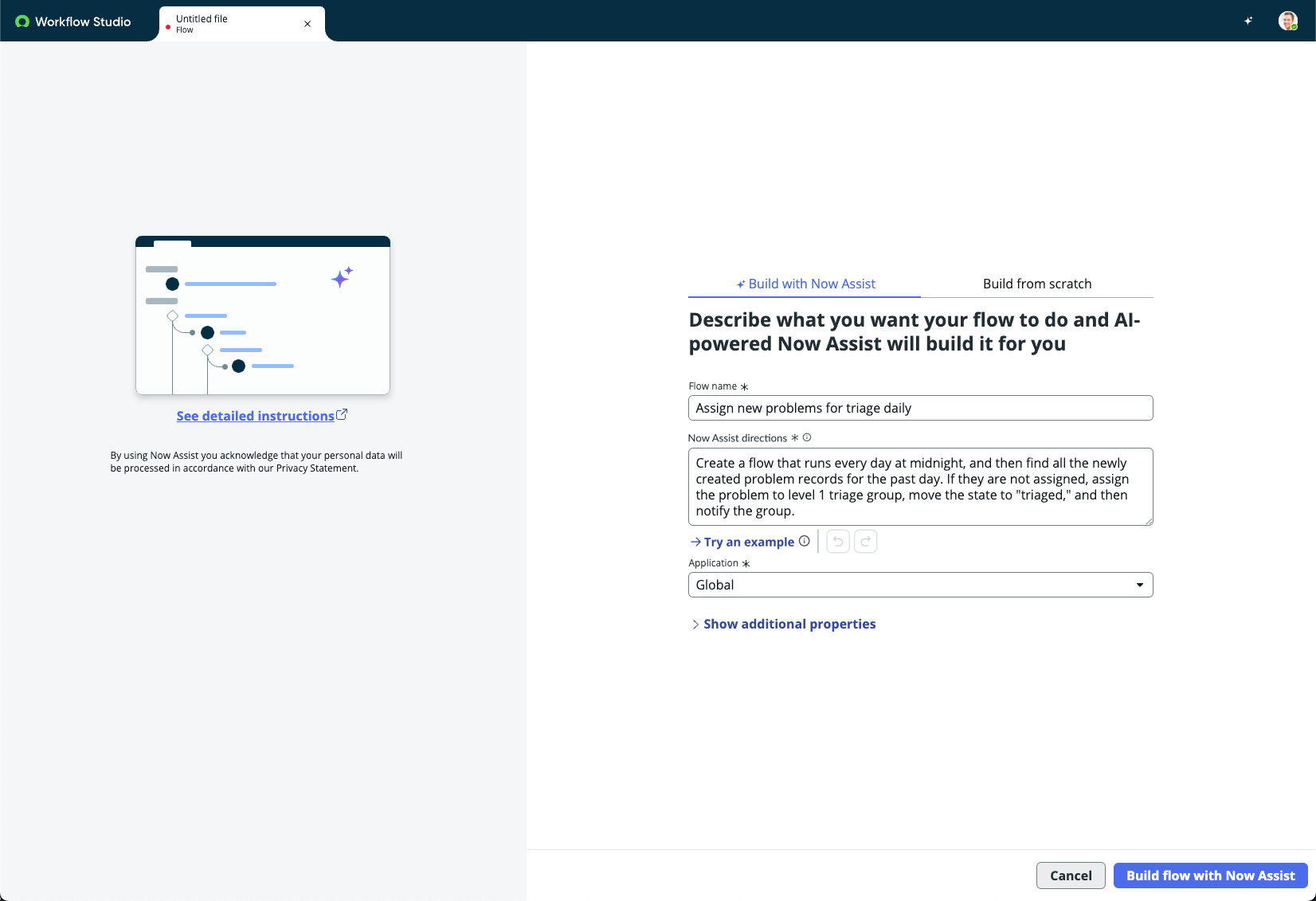

Create a flow with a scheduled trigger

You can use these prompt values to create a flow with a scheduled trigger.

Flow name

Assign new problems for triage daily

Now Assist directions

Create a flow that runs every day at midnight, and then find all the newly created problem records for the past day. Iterate over them. If they are not assigned, update it to assign the problem to level 1 triage group, move the state to "triaged," and then send a notification to the group.

What to do next

• Replace any placeholder steps with actual actions or subflows.
• Configure the inputs of each action, flow logic, and subflow to use appropriate data.
• Test the flow before activating it.
