Look Up Records action
Summarize
Summary of Look Up Records action
The Look Up Records action in Flow Designer allows users to retrieve multiple records from any table based on defined conditions. This action is available to users with theflowdesigneroradminrole, enabling them to add the action to a flow and configure it as needed.
Show less
Key Features
- Inputs:
- Table: Specify the name of the table from which to retrieve records.
- Conditions: Define field names and values for searching records, with the option to use inline scripts via GlideRecord and GlideQueryCondition.
- Order by: Choose a field for sorting results.
- Sort Type: Select between ascending or descending order.
- Max Results: Set a limit on the number of records returned to improve performance.
- Outputs:
- Records: A list of Sys IDs of the records found.
- Table: The name of the table containing the records.
- Count: The total number of records returned.
- General Guidelines:
- Utilize For Each flow logic to process each record in the output list.
- Set Max Results to 1000 or lower to enhance flow performance.
- Implement specific conditions to narrow down the results for better efficiency.
Key Outcomes
By effectively using the Look Up Records action, customers can streamline their workflows by retrieving specific records based on defined criteria, thereby enhancing the performance and efficiency of their automated processes in ServiceNow. For example, when handling an emergency change request, users can quickly look up configuration items assigned to the requester, improving response times and service delivery.
Look up multiple records on any table using defined conditions.
Roles and availability
Available as a Flow Designer ServiceNow core action. Users with the flow_designer or admin role can add an action to a flow and define configuration details.
Inputs
Provide a value for each input that your flow needs. To add dynamic values, you can also drag pills from the Data panel or select them from the pill picker.
- Table
- Data type: Table Name
Table name containing the records you want to look up.
- Conditions
- Data type: Conditions
Field names and field values that you want to use to search for records. To use an inline script to specify conditions, consider using the GlideRecord and GlideQueryCondition classes to build your query. See GlideRecord - Global and GlideQueryCondition - Global.
- Order by
- Data type: Field Name
Field you want to use to sort results.
- Sort Type
- Data type: Choice
Option to sort alphabetically in ascending or descending order.
- Max Results
- Data type: Integer
The maximum number of record results the action can return.
Outputs
These outputs appear in the Data panel. You can use them as inputs elsewhere in your flow.
- Records
- Data type: Records
List of record Sys IDs found based on the lookup criteria that you provided. For more information, see Records.[Table] data type.
- Table
- Data type: Table Name
Table that contains the list of records.
- Count
- Data type: Integer
Number of records that the action returned.
General guidelines
Use these general guidelines when working with the Look Up Records action.
- Process records with For Each flow logic
- Use For Each flow logic to iterate through a list of records. For more information about using For Each flow logic, see For Each flow logic.
- Set Max Results to improve performance
- Set the Max Results input to 1000 records or lower to improve the performance of your flow. The more records that the system has to look up, the more system resources it takes to identify and process them.
- Use conditions to filter records
- Use conditions to limit the number of records the action returns. The more specific conditions that you can provide, the better performance your flow has.

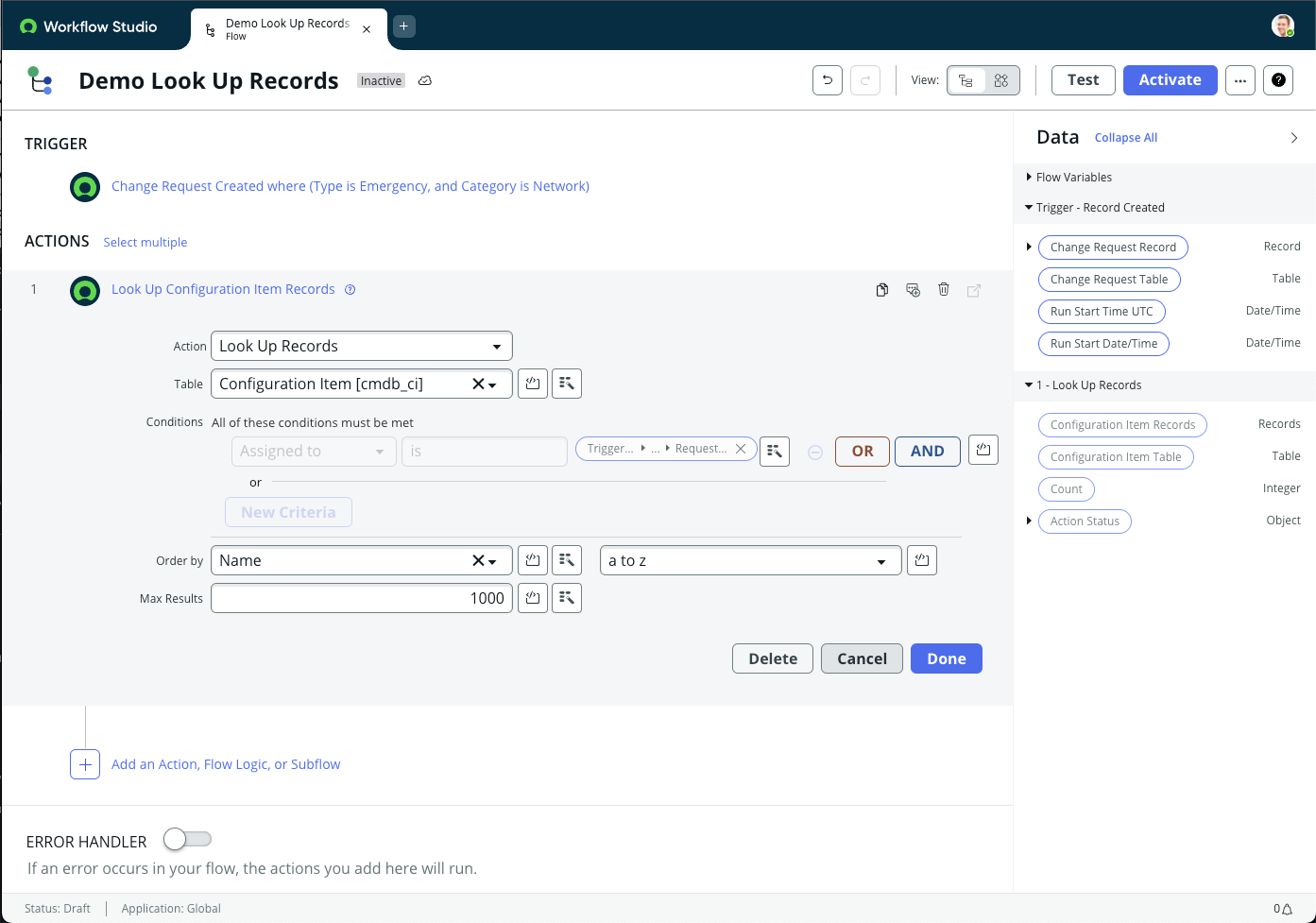

Look up configuration items assigned to a change request user
In this example, the flow starts when an emergency change request is opened in the Network category. The Look Up Records action uses the Configuration Item [cmdb_ci] table as the Table input. The Conditions input looks for configuration items assigned to the requester of the change request. The Order by input uses the Name field to perform an ascending alphabetical type sort.
In the execution details, the Count output shows three configuration items that are assigned to the requester of the change request. The Records output shows the configuration items by name in the execution details page, but the data pill contains a series of Sys ID values. The Table output is the Configuration Item [cmdb_ci] table.
