Flow execution settings

Specify the runtime settings for an individual flow, subflow, or action such as the run priority, reporting level, and logging level.

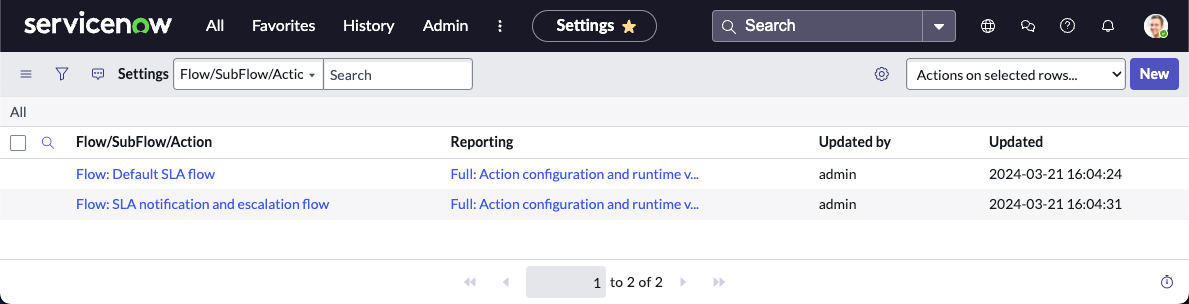

Figure 1. Sample execution setting record list

You can create an execution settings record for each flow, subflow, or action for which you want to collect execution details. An execution setting record [sys_flow_execution_setting] overrides the reporting system properties for a particular item. For example, you can keep the system wide reporting level off, and create execution setting records just for the items that you want to collect execution details.

You can create as many execution settings records as you like. The system generates execution details each time the flow, subflow, or action is directly run. Actions or subflows that run from a parent flow use the execution settings record of the parent flow.

Note:

You can call actions and subflows directly using the action API or script API.

Execution setting records are available from the Flow administration module.

Execution setting record fields

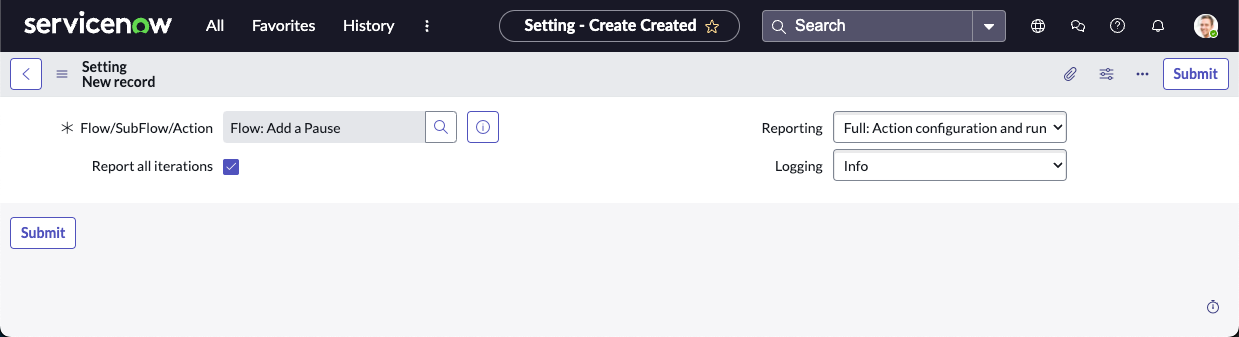

Figure 2. Sample execution setting record

An execution setting record [sys_flow_execution_setting] contains these fields.

Table 1. Execution setting record fields

Field	Description
Flow/SubFlow/Action	Individual flow, subflow, or action to which the execution settings apply.
Report all iterations	Option to gather execution details for all iterations of a loop rather than just storing execution details for the first and last iterations.
Reporting	Reporting level at which to gather execution details.
Logging	Logging level threshold required for Workflow Studio to write a message generated by the flow engine to the Flow engine log entries [sys_flow_log] table.
Flow Priority	Priority value used to run a background flow. For more information about setting flow priority, see Flow priority. Note: This field is hidden by default. For more information about showing the flow priority field, see Show flow priority field. .

General guidelines

Use these general guidelines when creating execution setting records to capture execution details.

Avoid reporting on production instances

Avoid performance issues on your production instance by only activating and configuring reporting on a non-production instance that you use for testing. Generating and storing execution details consumes instance resources, which can lower performance.

Create execution setting records on a non-production test instance

Create execution setting records on a non-production testing instance to minimize the performance impact of generating and storing execution details.

Reduce the amount of memory consumed by flow loops

Reduce the amount of memory consumed by generating execution details by not using the option to report all iterations. The more iterations you report on, the more memory is required.

Test flows, subflows, and actions to generate execution details

Test your flows, subflows to generate execution details at the debug level. Only deploy your items to a production instance after you verify that they generate the data you want and that they perform as expected.

Use flow reporting and the report all iterations options only during flow troubleshooting

Use the flow reporting and report all iterations options only when you need to troubleshoot a flow. These settings generate information that consume instance resources. To reduce their performance impact, either turn off these settings or delete the settings record altogether when you are done troubleshooting the flow.
