Script step

Add custom JavaScript to execute within a reusable action. While most core actions and steps fit common use cases, you can build a Script step to execute behavior not satisfied by the core steps.

Roles and availability

Available as an Action Designer action step. Users with the action_designer role can create a custom action with one or more action steps.

Note:

Integration Hub See Request Integration Hub for information about Integration Hub usage and subscriptions.

Fields

The Script step includes separate input and output variables that enable you to map JavaScript data to Flow Designer data. By defining input and output variables within the step, you can define what Flow Designer data is available within your script, and which scripting variables are available to other steps in your action.

Field	Description
Required Runtime	The runtime environment required to support the script. Choices include: Instance: The action step runs the script from instance. Select this option when the script needs access to the ServiceNow API or instance data. This is the default value. MID: The action step runs the script from the MID Server. Select this option when the script needs access to MID Server script files and APIs. Selecting this option displays the Select MID Server Using field. Vanilla (Core JavaScript): The action step runs the script from either the instance or MID Server. Select this option when the script only needs the core JavaScript APIs and not the ServiceNow API or instance data. The runtime you select determines the JavaScript objects and methods displayed in the Context-sensitive help. Note: This field is only visible when Integration Hub is activated.
Select MID Server Using	Specify the MID Server selection process to use. Choices include: Any MID. The system runs the action step from any available MID Server. Use Connection Alias. The system runs the action using the connection alias you specify. Selecting this option displays the Connection Alias field. Use Inline Selection. The system runs the action using the connection details you specify in the action. Selecting this option displays the Host, MID Application, and Capabilities fields. Note: This field is only visible when Integration Hub is activated, and you select MID from Required Runtime.
Connection Alias	Connection & Credential alias record that the system uses to run the action step. Users with the flow_designer or admin role can create or select an associated Connection record. Using an alias eliminates the need to configure multiple credentials and connection information profiles when using an action in multiple environments. Likewise, if the connection information changes, you don't need to update your custom action. To learn more about connections and credentials, see credentials, connections, and aliases. Only aliases of connection type Basic are supported. Note: This field is only visible when Integration Hub is activated, and you select Use Connection Alias from Select MID Server Using.
Host	The fully-qualified domain name of the MID Server where the system runs the action step. For example, mid-server.domain.com. Note: This field is only visible when Integration Hub is activated, and you select Use Inline Selection from Select MID Server Using.
MID Selection	Option to select the specific MID Server or MID Cluster. Auto-Select MID Server: Selects the MID Server automatically. Specific MID Server: Uses the MID Server you select. Specific MID Cluster: Uses the MID Cluster you select. This field is available when MID is selected from the Required Runtime list, and Use Inline Selection is selected from the Select MID Server Using list.
MID Cluster	Data pill for the MID Cluster you want to use. This field is available when MID is selected from the Required Runtime list, and Use Inline Selection is selected from the Select MID Server Using list.
MID Application	Specify the application the MID Server must support to be eligible for selection. The system runs the action step from a MID Server that supports the selected application. This field is only visible when Integration Hub is activated, Auto-Select MID Server is selected from the MID Selection list, and you select Use Inline Selection from Select MID Server Using.
Capabilities	Capabilities the MID Server must support to be eligible for selection. The system runs the action step from a MID Server that supports the selected capabilities. This field is only visible when Integration Hub is activated, Auto-Select MID Server is selected from the MID Selection list, and you select Use Inline Selection from Select MID Server Using.
Specific MID Server	Data pill of the required MID Server. This field is only visible when Integration Hub is activated, Specific MID Server is selected from the MID Selection list, and you select Use Inline Selection from Select MID Server Using.
Input variables	Name-value pairs that represent data from the action, enabling you to use action inputs and data from other steps within a script.
Script	Script that executes within the action. To access input and output variables in your script, use the global objects inputs and outputs. For example, inputs.myVariable. Note: Script step input and output names can't include any of the following reserved system names: sys_id sys_created_by sys_created_on sys_updated_on sys_updated_by sys_mod_count In general, don't create a variable that has the same name as a system field. The Script step may confuse such an input variable for a field name and use the wrong value. The Script step always converts data stored in the inputs and outputs global objects into strings. If your Script step needs to work with JSON data, you can use the inputs global object to convert the JSON data into a string. Alternatively, you can define a JavaScript variable as a string rather than a JavaScript object. For example, this script illustrates two ways you can output JSON data. (function execute(inputs, outputs) { outputs.json_object_1 = inputs.json_input; var array_of_objs = '[{"name1":"value1"}, {"id":"abcd"}]'; outputs.json_object_2 = array_of_objs; })(inputs, outputs); By default, Flow Designer run scripts on the instance. To run script from a MID Server requires an Integration Hub subscription. Flow Designer runs script from the domain from which it is triggered or initiated. See Domain separation and Flow Designer. For available classes and methods, see the JavaScript API context-sensitive help or the API reference.
Output variables	Map JavaScript output to Flow Designer data pills. Define output variables when you want other steps in the action to use the script output.

Action error evaluation

If this step fails

Data type: Choice

Option to continue running the next step or go to error evaluation. To use the step status code or message for a custom action error condition, see Action error evaluation.

Example

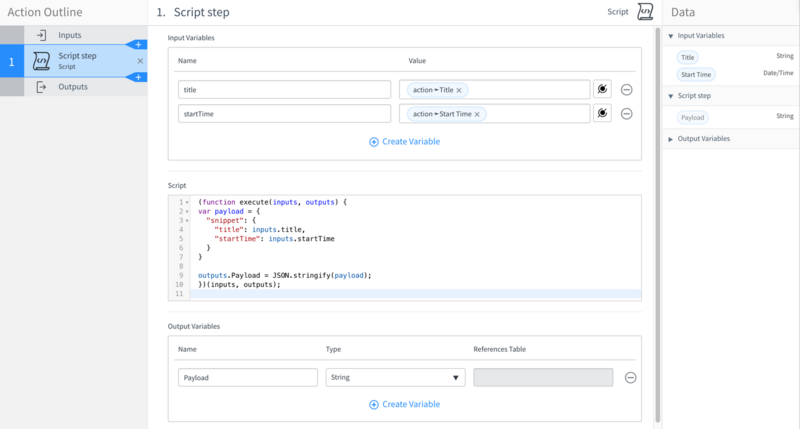

This example builds a JSON payload that can be easily updated or changed and added to a subsequent REST step.

Note:

REST step is not available in the base system and requires the ServiceNow® Integration Hub subscription.

By creating an output variable that represents the payload, you can drag the [Payload] data pill into the REST step Body field.
