Delete a flow

Delete a flow that you no longer need.

Before you begin

Role required: flow_designer or admin

About this task

You can only delete flows that are in the same application scope as the current session. You can't delete flows that are read-only protected. If your instance uses domain separation, make sure that you are in the Global scope. For more information, see Domain separation and Flow Designer.

Procedure

1. Optional: If needed, change application scope to that of the flow you want to delete.
   For more information about changing application scope, see Exploring Next Experience pickers.
2. Navigate to All > Process Automation > Workflow Studio.
3. On the homepage, select Flows.

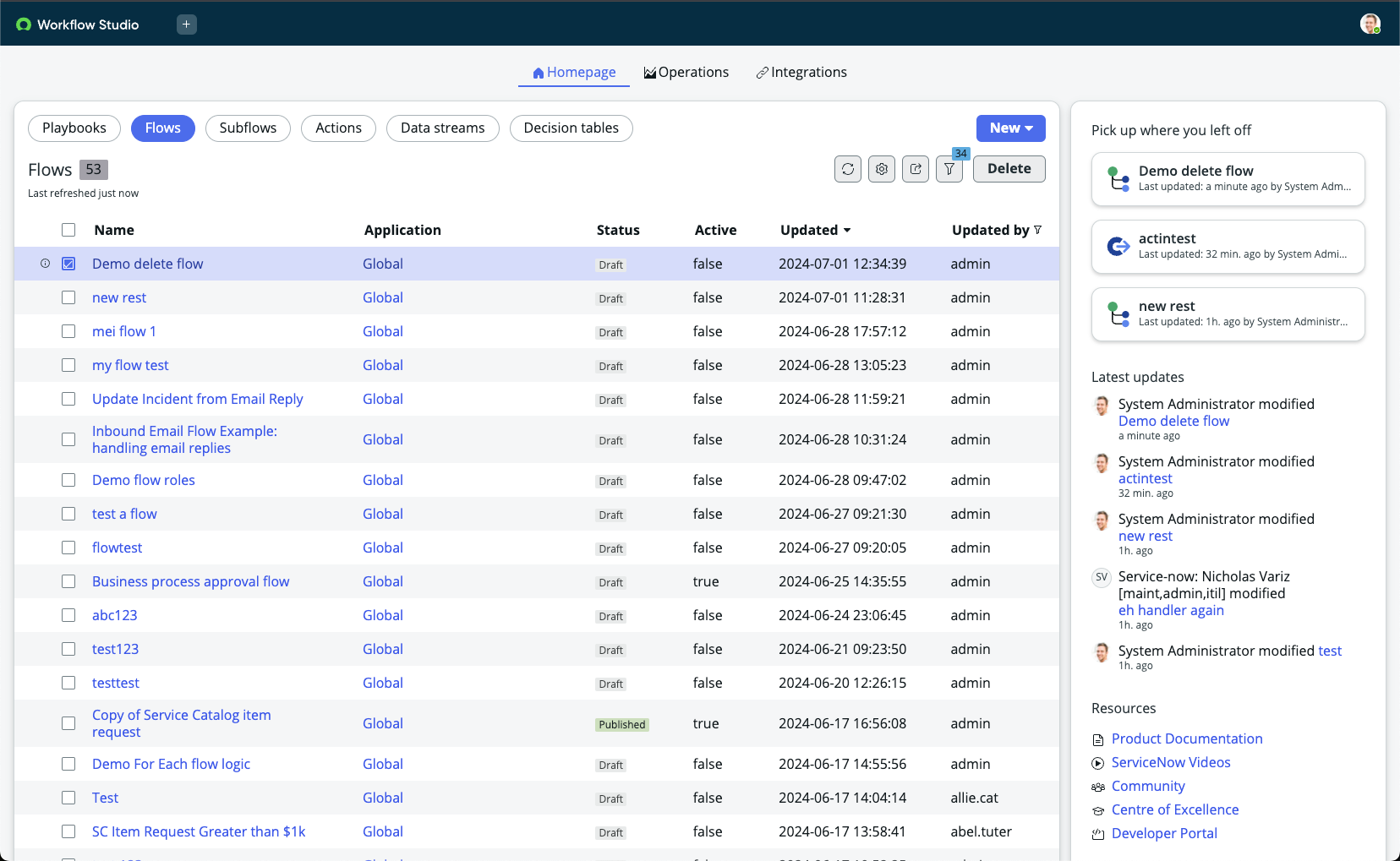

4. From the list of flows, select the box next to the flow you want to delete.

5. Select Delete.
   If the delete option is unavailable, you may be in the wrong application scope, or the flow may be read-only protected.

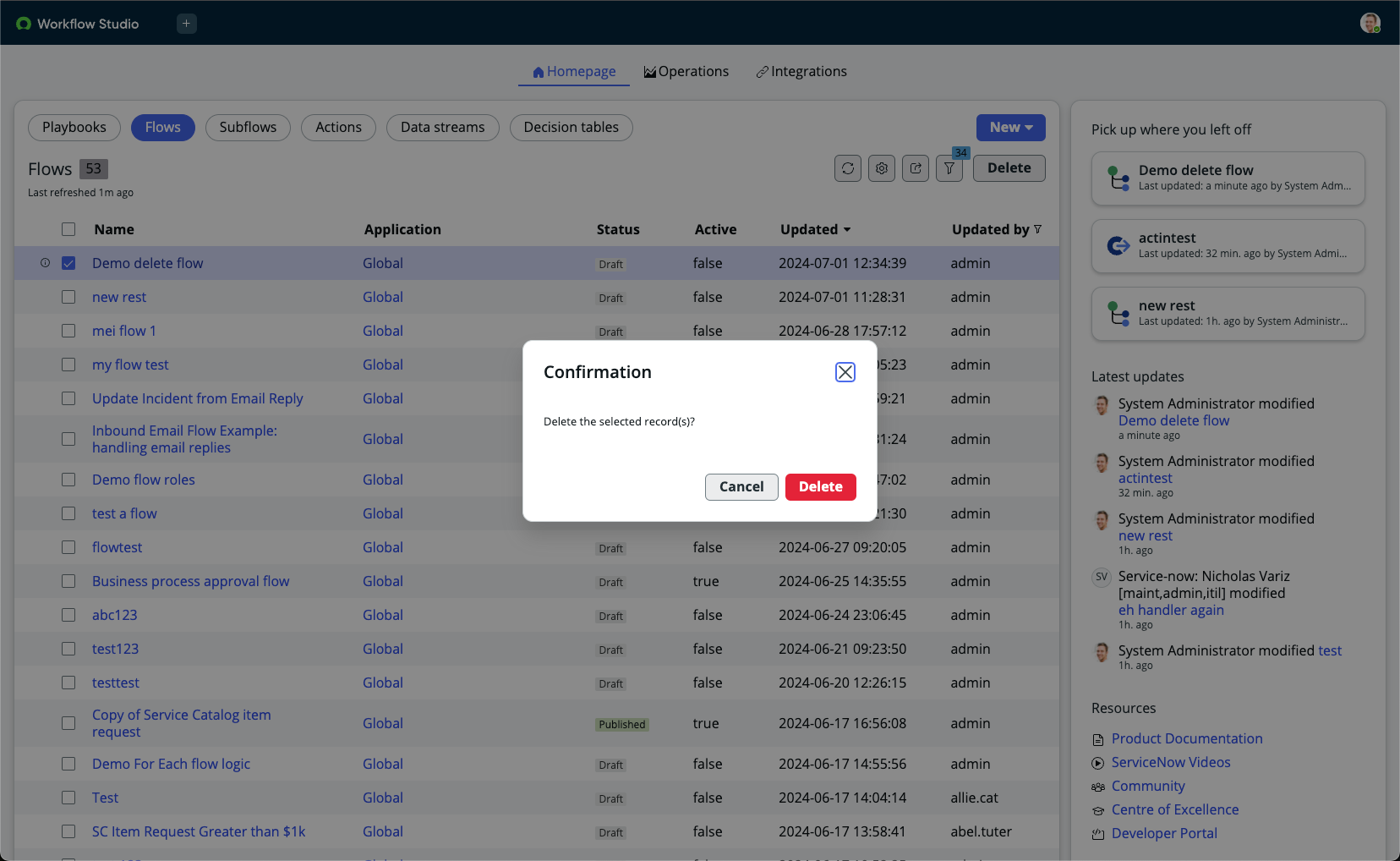

   Workflow Studio displays a confirmation window.
6. From the Confirmation window, select Delete.


Result

Workflow Studio deletes the flow and removes it from the list of available flows.
