Call a workflow flow logic

Run a published and active workflow from your flow. You can use the flow data as a workflow input. For example, you can specify the current record as a workflow input.

Inputs

Input	Description
Select a Workflow	Published and active workflow that you can select to run. The workflow that you select determines the records that are associated with it. If the workflow has inputs, Flow Designer displays them as additional flow inputs. Note: To prevent the workflow from running outside of Flow Designer, modify it to remove its start conditions. You cannot select a workflow that runs on the Requested Item table. Instead, create a new flow with a Service Catalog trigger.
Wait?	Workflow that you set to true so that the flow waits for workflow completion before continuing. Only workflows that wait for completion can return certain output values to the flow. Set to false to continue running the flow separately from the workflow. Note: If the workflow is canceled or its context record is deleted prior to the workflow finishing, the flow stops waiting and instead continues running.
Current	Current record that the workflow processes. Select a data pill that contains a record from the associated workflow table.

Outputs

The flow execution details only display workflow output values that are generated while the flow is running. If you configure the flow to wait for the workflow to finish, the flow execution details can display all workflow output values. If the flow does not wait, the flow execution details only display the workflow output values that were generated before the Call a Workflow flow logic completes. If Call a Workflow completes before the workflow finishes, the workflow output values stop updating and only display the last known value.

Output	Description
State	State of the workflow. This value comes from the workflow context record. The state will be Complete if the workflow executes successfully. If the workflow is canceled, the workflow state is set to Canceled. If the context record is deleted prior to the workflow finishing, the workflow state is set to Invalid.
Context	Reference to the workflow context record.
Result	String that contains the result from the workflow. This value comes from the workflow context record.
Return value	String that contains the return_value from the workflow. This value comes from the workflow context record.

Calling the Routine Change workflow

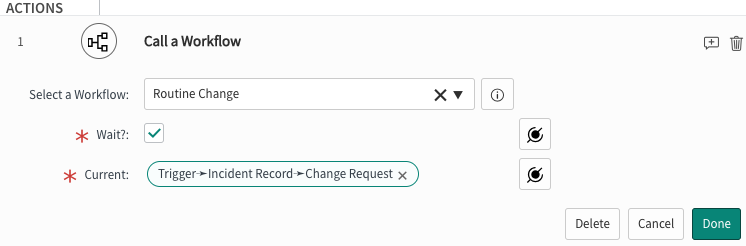

In this example, the flow calls the Routine Change workflow. The Wait? option is checked, so the flow pauses until this workflow completes. The Current field is filled using a data pill representing the record that triggered this flow.

Execution details

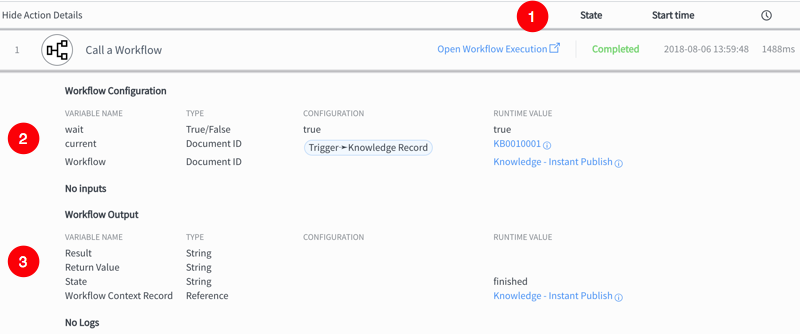

Figure 1. Call Workflow execution details

1. The header displays a link so that you can view the workflow progress in the Workflow Editor, the flow logic state, the start time, and the runtime duration.
2. The Workflow Configuration section displays how the flow logic was configured for this flow and the runtime values that were generated.
3. The Workflow Output section displays the output that is generated by the workflow while the flow is running.

Note:

If you cancel the workflow or delete the context record prior to the workflow finishing, the flow logic state is set to Complete.
