Column Level Encryption Enterprise examples

These examples walk you through the encryption of fields and attachments using customer-supplied keys.

Column Level Encryption Enterprise walkthrough

This walkthrough shows you how to encrypt a field in your instance using Column Level Encryption Enterprise with the Key Management Framework (KMF). It also shows you how to use your own key.

Before you begin

Note:

This procedure only applies to Column Level Encryption Enterprise functionality. See Activate Column Level Encryption Enterprise for more information on obtaining Column Level Encryption Enterprise.

Role required: admin or security_admin

Note:

security_admin is a privileged role, for details on using privileged roles, see Elevate to a privileged role

About this task

This walkthrough starts with an instance where you have already created and uploaded your personal cryptographic key. You could use the ServiceNow key, but this example uses a customer-supplied key.

After the key has been stored in a cryptographic module, you can start configuring fields in your instance, such as salary or social security numbers that have limited access from certain users. In the Encrypted Field Configuration, specify which authorized personnel can access sensitive data.

This task demonstrates two scenarios. One example encrypts the Short Description field in an Incident for users who are not authorized to view the sensitive data.

Attachments can also be encrypted and only visible to users who are granted access, or is visible to all users that are not restricted from viewing the data. See Attachment encryption walkthrough to encrypt an attachment.

Procedure

1. Make sure that Column Level Encryption Enterprise is enabled.
2. Create a cryptographic module for column_level_encryption.
   See Create cryptographic module for Column Level Encryption Create a cryptographic module for more information.
3. Navigate to System Security > Encrypted Field Configurations.
4. Click New.
5. On the form, fill in the fields.

   Table 1. Encrypted field configuration form

   Field	Description
   Type	Column is required to use your personal key.
   Table	Table that stores the sensitive information. For this example, select Incident [incident].
   Column	Column, or specific information, that represents the sensitive date to be encrypted. For this example, select short_description.
   Active	Option to mark Active to use the field configuration.
   Algorithm Equality Preserving	The option is automatically selected.
   Crypto module	Module that you created to use with the personal key.
   Method	The Single Module option is used to apply the policies for one module. Multiple Modules is used to apply the policies across multiple modules.

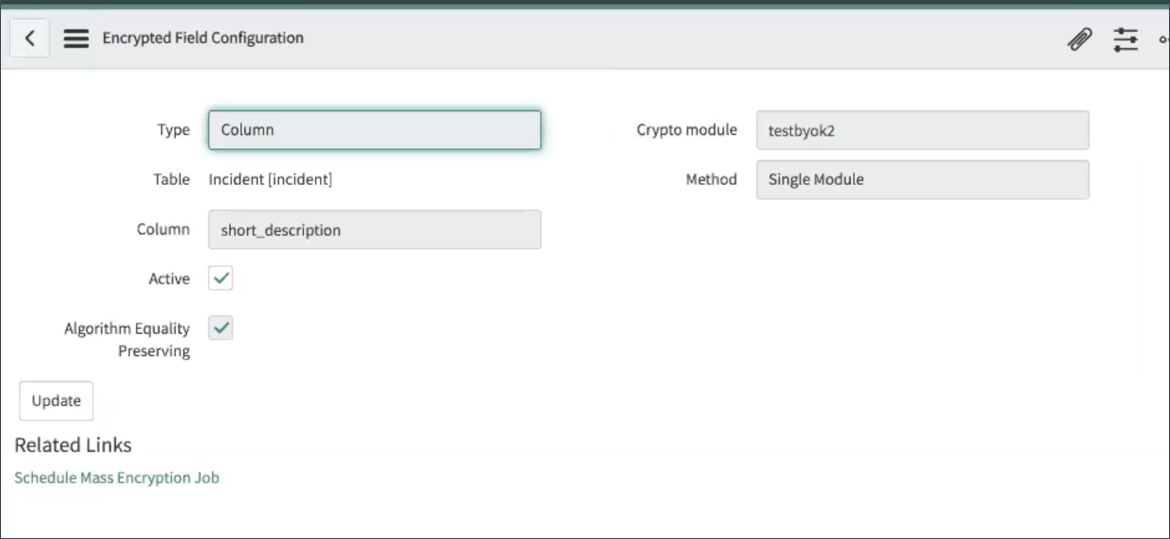

   Figure 1. Encryption field configuration example



6. Click Submit.

   Establish a Module Access Policy to assign access to the cryptographic module. See Create a module access policy for additional information.

7. Navigate to Key Management > Module Access Policies > > Create New > .
8. On the form, fill in the fields.

   Table 2. Module access policy form

   Field	Description
   Policy name	Name for the policy, such, as short description.
   Crypto module	Crypto module that you created to encrypt your key.
   Type	Type of access designation for the crypto policy. Use Role to grant access to the encrypted field to only those users that have the assigned role.
   Target Role	The role that has access to the encrypted field. For this example, select Admin.
   Active	Option to activate the Module Access Policy.
   Result	The Trackoption enables the access to the field for the selected role. (To restrict access to that field for the selected role, select Reject orStrict Reject.)

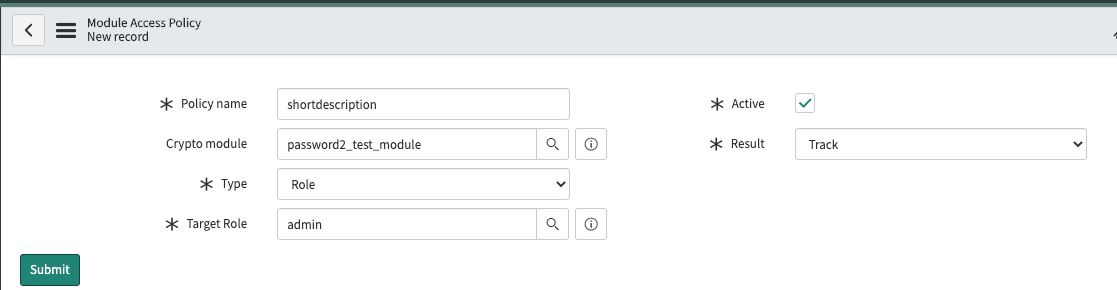

   Figure 2. Module access policy example



9. Click Submit.
10. As a user with the sn_kmf.admin role, navigate to Incident > New.

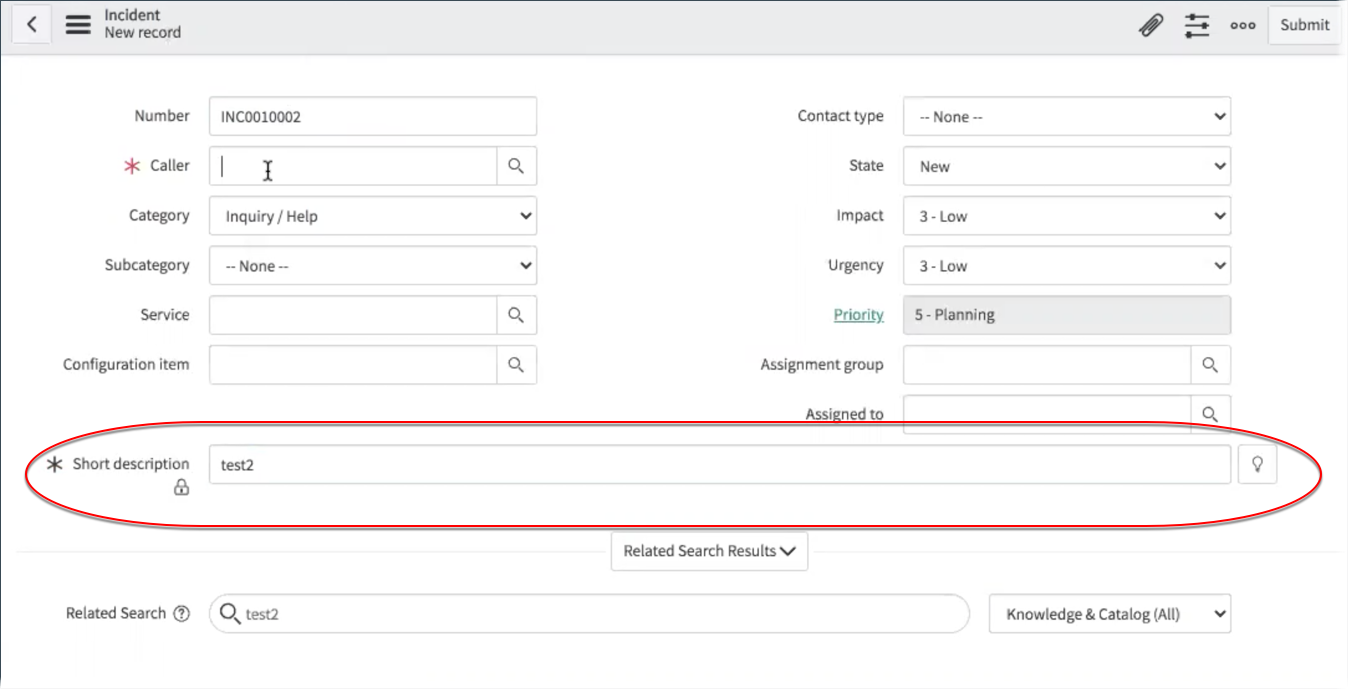

    Figure 3. Example of encrypted field visible



    You can now view the Short description field based on the module access policy configuration.

    Note:

    The sn_kmf.admin role was granted user access to the encrypted field, Short description, by setting the module access policy to Track. Notice the lock icon () under the field name indicating that the field is an encrypted field.

    You can now access the Incidents module as an end user to test the encrypted field configuration.

11. Log in as a user to be restricted from viewing the encrypted data in the configured field.

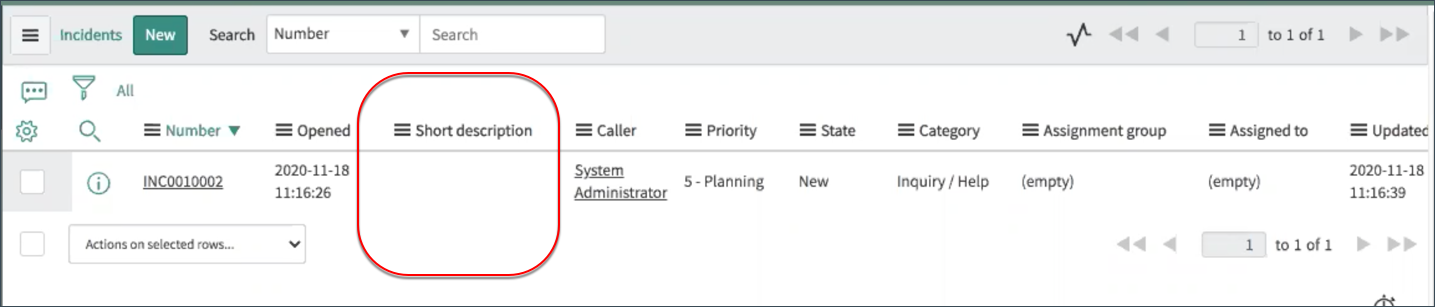

    Figure 4. Encrypted field level data



    When you access the incident number, the data in the Short description will not be visible.

Result

You have successfully used your symmetric key to control access to a specific field using Column Level Encryption Enterprise.

Attachment encryption walkthrough

This walkthrough shows you how to encrypt an attachment in your instance using Column Level Encryption Enterprise with the Key Management Framework (KMF). It also shows you how to use your own key.

Before you begin

Note:

This procedure only applies to Column Level Encryption Enterprise functionality. See Activate Column Level Encryption Enterprise for more information on obtaining Column Level Encryption Enterprise.

Role required: kmf cryptographic manager

About this task

This walkthrough starts with an instance where you have already created and uploaded your customer-supplied cryptographic key. You could use the key, but this example uses a customer-supplied key.

Upload confidential attachments in your instance and limit access from certain users. Use Encrypted Field Configuration to specify which authorized personnel can access sensitive data.

We show you how to encrypt attachments to only be visible to users who are granted access, or be visible to all users that are not restricted from viewing the data. In this example, we restrict a certain role from being able to access an attachment in the Incidents module.

Note:

Although you can use multiple modules with Column Level Encryption Enterprise, attachment encryption must use single modules.

Procedure

1. Make sure that Column Level Encryption Enterprise is enabled.
2. Create a cryptographic module.
   See Create cryptographic module for Column Level Encryption for more information.
3. Navigate to System Security > Encrypted Field Configurations.
4. Click New.
5. Complete the form:

   Table 3. Encrypted field configuration fields

   Field	Description
   Type	Select Attachment to use your personal key for encrypting an attachment from the selected Table For this example, select Incident.
   Table	Select the table to access the sensitive information. For this example, select Incident [incident].
   Active	Mark Active to be able to use the field configuration.
   Algorithm Equality Preserving	When selecting Column Level Encryption Enterprise, this field is visible based on the table selected.
   Crypto module	Select the module that you created to use with the personal key.
   Method	The Single Module option is used to apply the policies for one module. Multiple Modules is used to apply the policies across multiple modules.

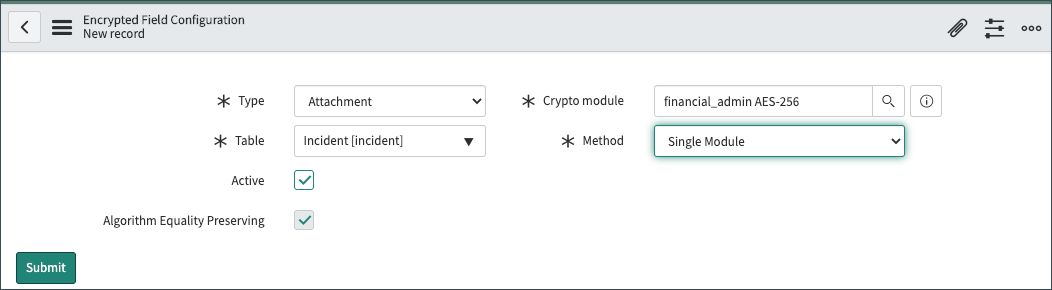

   Figure 5. Encrypted Field Configuration table



6. Click Submit.

   Establish a Module Access Policy to assign access to the cryptographic module. Refer to Create a module access policy for additional information.

7. Navigate to Key Management > Module Access Policies > All.
8. Click New.
9. Complete the form:

   Table 4. Module access policy fields

   Field	Description
   Policy name	Enter a name for the policy, such, as "Attachment policy."
   Crypto module	Select the crypto module that you created to encrypt your key.
   Type	Select Role to restrict access to the encrypted field from users with the assigned role.
   Target Role	Select the role that will not have access to the encrypted field. For this example, select itil.
   Active	Select this check box to be able to use the Module Access Policy.
   Result	Select Strict Reject to control the access to the attachment from the selected role. (To grant access for the selected role, select Track.)

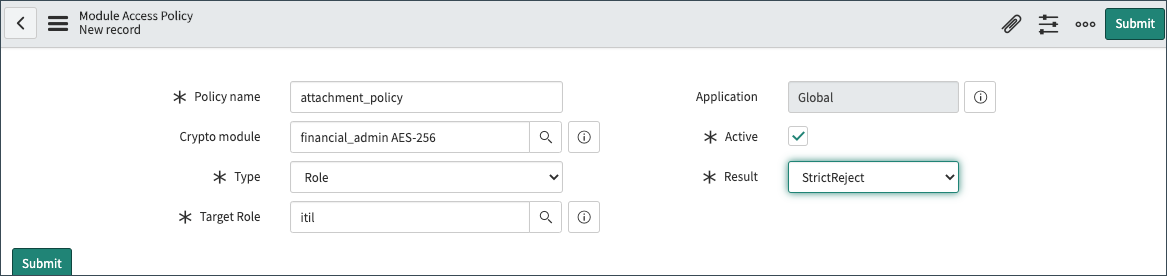

   Figure 6. Module Access Policy form



10. Click Submit.
11. As admin or as a person that created the incident, navigate to Incidents and add an attachment to Activities on the Notes related list.

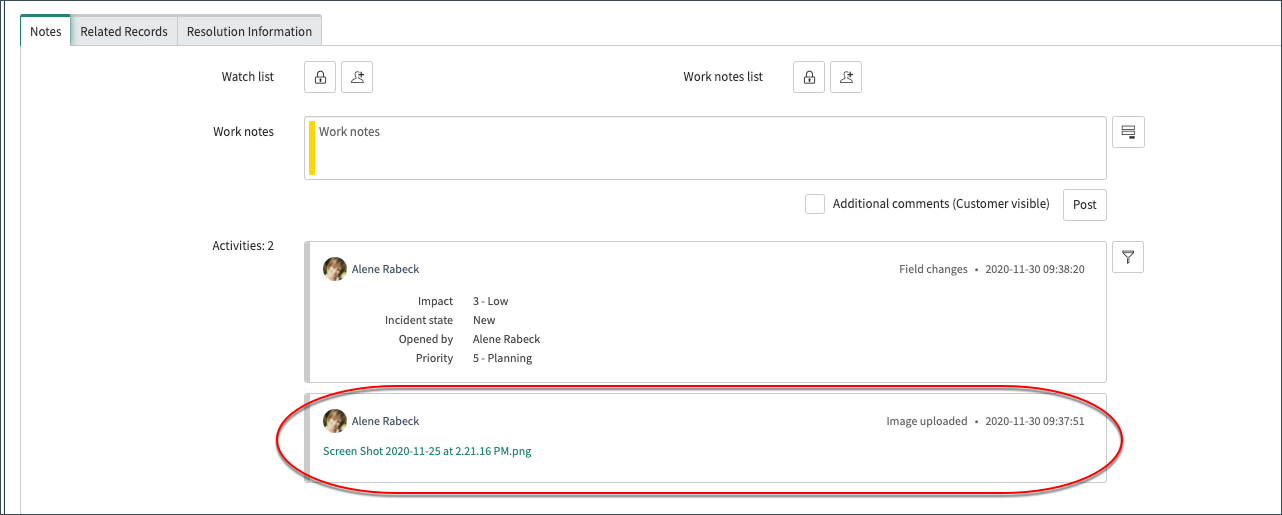

    Figure 7. Attachment available per role



12. Log in as a user that restricted from accessing the encrypted attachment.
13. Open the incident and scroll to the Activities: section.
    The link to open the attachment is not accessible for users with the restricted role.
14. You have now successfully used your customer-supplied key to control access to a specific attachment using Column Level Encryption Enterprise.
