Create a condition statement using the condition builder

A condition builder constructs a condition statement with a series of contextually generated fields. Condition builders are used in many operations, such as creating filters, administering surveys, and administering access control.

Avant de commencer

Role required: admin

Pourquoi et quand exécuter cette tâche

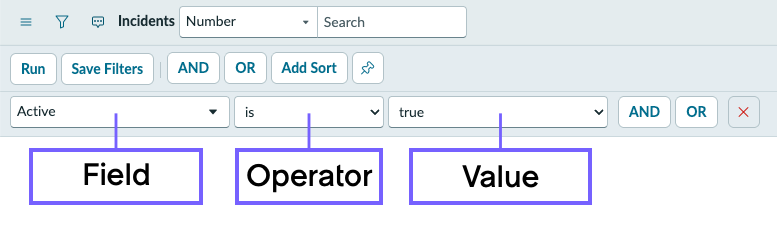

A condition consists of three parts.

Part	Description
Field	A choice list based on the table and user access rights. The choice list can include fields on related tables by dot-walking.
Operator	A choice list based on the field type. For example, in the Incident [incident] table, the greater than operator does not apply to the Active field but it does apply to the Priority field.
Value	A text entry field or a choice list, depending on field type. For example, in the Incident [incident] table, the Active field offers a choice list with the values true, false, and empty, while the Short Description field offers a text entry field.

Procédure

1. To add a dependent condition, select AND or OR next to the condition.
2. To add a top-level condition, select AND or OR on the condition builder toolbar above the conditions.
3. To remove a condition, select the delete icon (X) next to the condition.

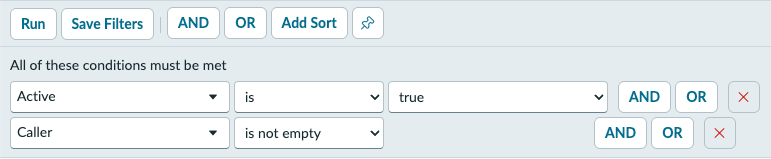

   Figure 1. Example AND condition in List v2 filter



• Condition builder
  A condition builder constructs a condition statement with a series of contextually generated fields. Condition builders are used in many operations, such as creating filters, administering surveys, and administering access control.
• Operators available for filters and queries
  The system provides a set of operators for use with filters, condition builders, and encoded queries. The data type of a field determines what operators are available for it.
