Configure Visual Task Boards labels

Labels help categorize tasks and visually distinguish them on the task board. You can disable or rename labels using the labels tab of the activity stream.

Avant de commencer

Role required: tags_admin and global_tags_creator

Pourquoi et quand exécuter cette tâche

Every board has seven labels by default.

Board members can edit the labels on a board. All the labels are visible on the Quick Panel under Labels

Procédure

1. From the task board tools, click the Labels tab.



2. Turn on the Show Labels button if it is turned off.
   You can see seven default labels.

   • Users with global_tags_creator role can add labels to the board and rename the label.
   • To add labels, click Add Labels . Newly added label remains in off state by default. You can assign any color or no color to the label. To rename the label, click the label text and enter new value.

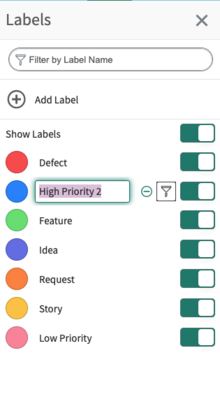

   • To rename labels, click on the label and change the name of the label.

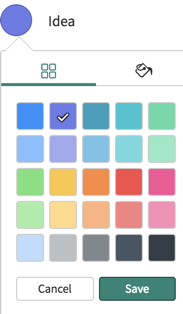

   • To change the color of the label, click the Select color icon beside the label. Select the color of your choice from the color picker, and then click Save.

     .
   • To disable or enable a specific label, toggle the button next to the label. To turn on or turn off a specific label, toggle the button next to the label. Only turned on labels show up in the quick filter and can be applied to a card
   • The board owner can delete the label by clicking Delete Label icon. next to the label.
   • To filter the cards by labels, type the Label name in the Search bar or click Add to Filter icon against the label. Once you filter by the label, you can only see cards with that label.

   Labels on Card Details Page

   When user clicks the card, the card opens with the details of the card. It contains all the applied labels under Details tab.



   Under the Labels tab, the toggle button for applied labels is On and Off for the labels that are not applied.

   Remarque :

   The table label can also be used for Tags.
