Create Diagnostic scans and map related scripts

Once you have created diagnostic features and scripts, map them to a diagnostic scan to check the health of data in your application. Use fix scripts to rectify any corrupt or invalid data that the diagnostic scan identifies.

Before you begin

In order to create a diagnostic scan, you must have already created diagnostic features and scripts For more information, see Create and add diagnostic features and Add diagnostic and fix scripts.

Role required: adt_admin

About this task

You can map multiple scripts with each diagnostic scan and define the order of their execution.

Procedure

1. Navigate to All > Application Diagnostics Tool > Diagnostics.
2. Click New.
3. On the form, fill in the fields.

   Table 1. Diagnostics form

   Field	Description

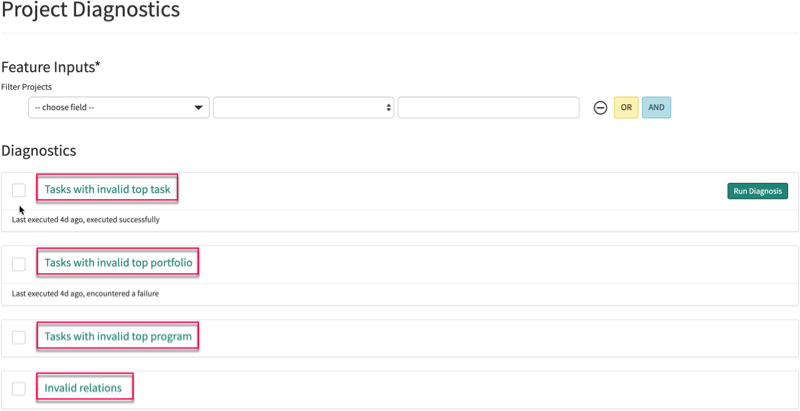

   Name	Name of the diagnostic scan. This name appears in the application to which this diagnostic scan belongs.
   Active	Option for activating the diagnostic scan.
   Order	Order in which this diagnostic scan appears in the application.
   Feature	Diagnostic feature with which you want to associate this diagnostic scan.
   Roles	Option for adding or removing user roles that can access the diagnostic scan.

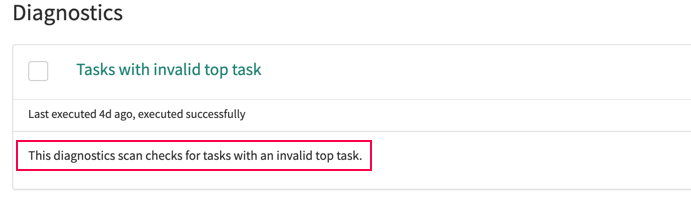

   Description	Details of the diagnostic scan. The description is displayed in the application to which the diagnostic scan belongs.

4. Click the Roles icon () and move the desired roles to the Selected list.
   The users with the selected roles can access the diagnostic script.
5. Search for and select diagnostic scripts to map with the diagnostic scan in the Diagnostics and Script Mappings section.
6. Click Submit.

What to do next

• Create related link for navigating to the diagnostic features and scans in the application. For more information, see Create a UI action.
• Run diagnostic scan and view results. For an example of how the diagnostics scan work, see Use Project Diagnostics to detect corrupt project data.
