EMR Help data model
The EMR Help data model enables clinicians to submit service requests on your ServiceNow instance from an EMR system.
The EMR Help data model accesses only the EMR system data required to make the EMR Help application work.

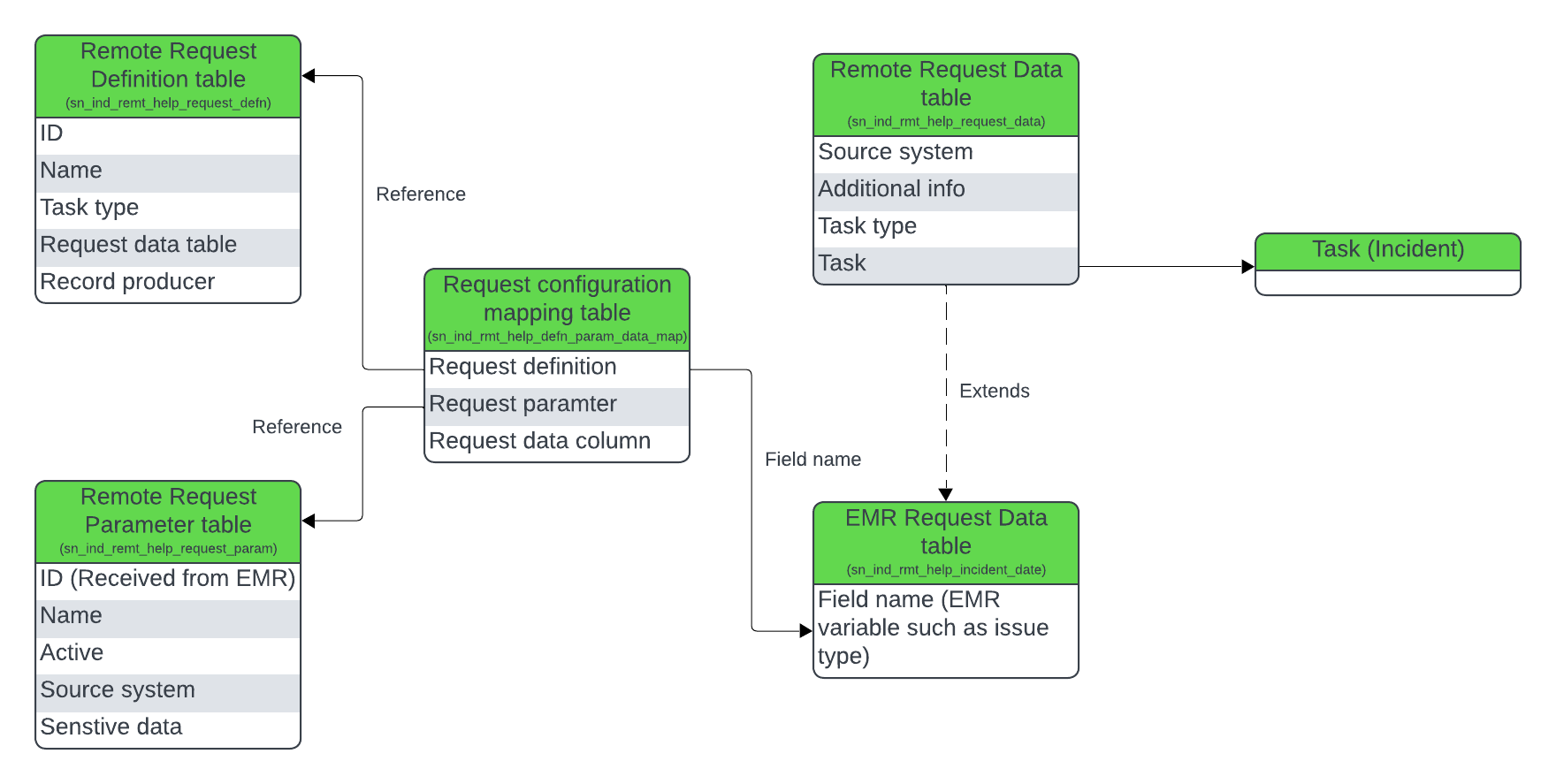

The following diagram shows the tables and their columns, and the relationships between each table, that comprise the EMR Help data model.
The EMR Help data model uses a combination of tables to store data:
- ServiceNow AI Platform task tables such as the Incident [incident] table or Healthcare Case [sn_hcls_case].
- Tables included with the EMR Help application:
