Google Cloud Platform (GCP) Organization discovery with Patterns

The ServiceNow Discovery application uses the Discover Google Organization discovery pattern to find GCP Organization projects and resources. Discovering some of these resources may require updating to the latest version of the Discovery and Service Mapping Patterns application from the ServiceNow Store.

Request apps on the Store

Visit the ServiceNow Store to view all the available apps, and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.

Prerequisites

For details on system requirements and family compatibility, view the application listing on the ServiceNow Store website.

GCP Organization structure

Verify that a GCP Organization resource is structured correctly, with projects underneath it in a miscellaneous hierarchy.

Ensure that all projects under the GCP Organization resource have the Compute Engine API enabled.

Service Account user settings

Check that Service Account users have access to the GCP Organization resource node.

Verify that Service Account users are members of all other projects located under the GCP Organization resource node.

Ensure that Service Account users have the following Cloud Identity and Access Management credentials for projects under the GCP Organization resource:

• resourcemanager.folders.list
• resourcemanager.organizations.get
• resourcemanager.projects.get
• resourcemanager.projects.list

Credentials for API elements

During the discovery, the pattern uses the following API elements. The user that was added to the credentials in the instance must have permissions to send these queries.

• https://cloudresourcemanager.googleapis.com/v1/{name=organizations/*}
• https://cloudresourcemanager.googleapis.com/v1/projects
• https://cloudresourcemanager.googleapis.com/v2/folders:search

Credentials for creating a discovery schedule

Configure the following credentials:

1. Create GCP credentials.
2. Create a GCP Service Account:
   1. Credentials: The GCP credentials.
   2. Account ID: The Google Service Account ID.
   3. Datacenter type: Select cmdb_ci_google_datacenter.
3. Create a discovery schedule.

(Optional) Create a serverless discovery schedule

Create a discovery schedule to perform targeted discovery of GCP Organization resources.

1. Navigate to Discovery > Discovery Schedules.
2. Click New and then fill in the form.

   表 : 1. Discovery Schedule form

   Field	Description
   Name	Name for the Discovery schedule. For example, Discover GCP Organization.
   Discover	Discover type. Select Serverless.
   MID Server	Name of the MID Server.
   Active	Option for enabling this schedule for discovery. Select this check box to enable discovery.

3. Right-click the header of the Discovery Schedule form and select Save.
4. Click the Serverless Execution Patterns tab, click New, and then fill in the form.



   表 : 2. Serverless Execution Pattern form

   Field	Description
   Name	Name for this Serverless Execution Pattern. For example, Discover GCP Organization.
   Pattern	Name of the pattern to run: Discover Google Organization.
   Proxy Host	Fully qualified domain name of the machine on which you are installing the proxy server. Specify Global.
   Active	Option for enabling this schedule for discovery. Select this check box to enable discovery.

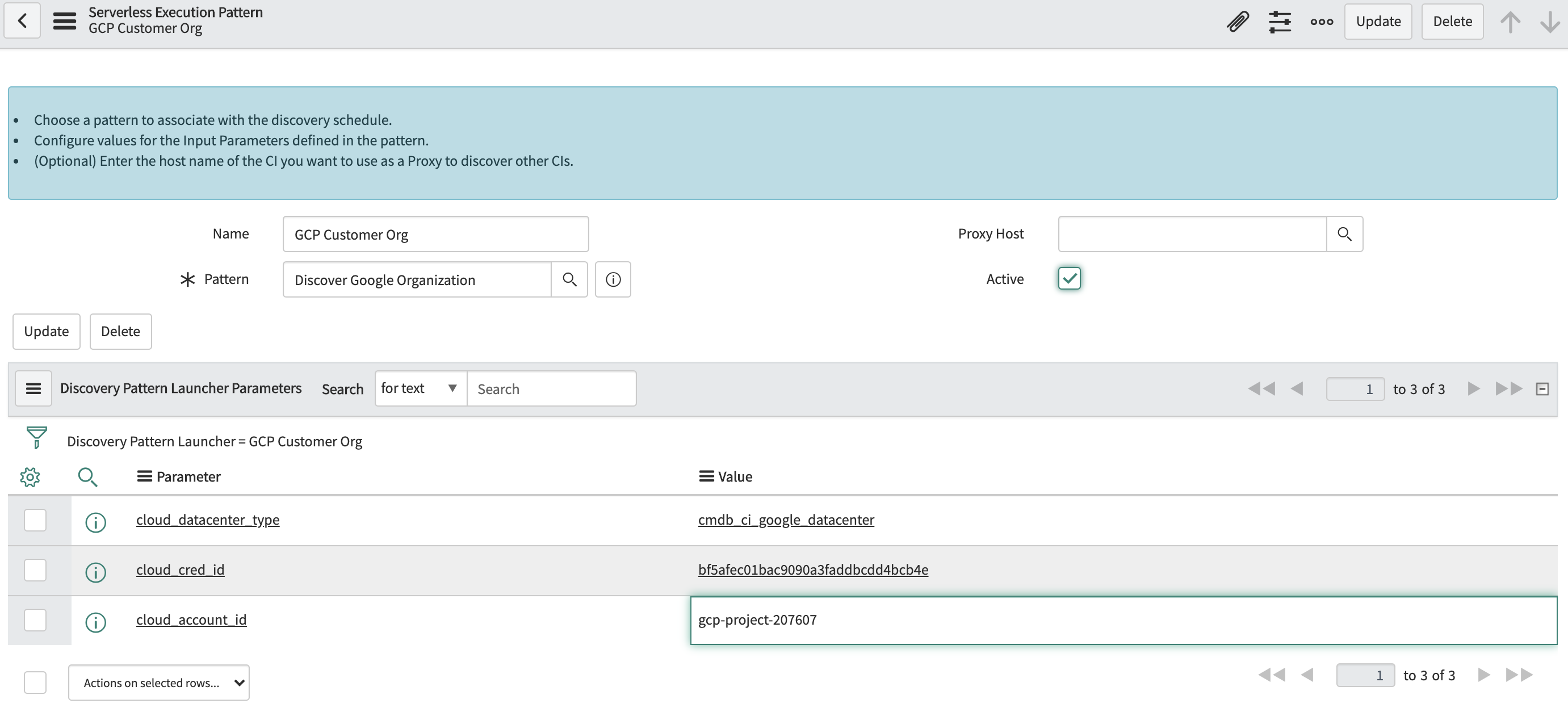

5. Under Discovery Pattern Launcher Parameters, configure the following parameters with the relevant values:

   Parameter	Value
   cloud_account_id	The Project ID within GCP.
   cloud_cred_id	The sysid of the GCP credentials.
   cloud_datacenter_type	cmdb_ci_google_datacenter



Customers with early access to the GCP Organization pattern

Verify that the Discover-GCP-SubAccounts scheduled job is not enabled in your instance.

1. Navigate to System Definition > Scheduled Jobs.
2. Click the Discover-GCP-SubAccounts scheduled job.
3. Clear the Active check box, and then click Update.

Data collected by Discovery during horizontal discovery

Table and field	Description
Organization [cmdb_ci_cloud_org]
name	The name of the organization resource.
object_id	The ID of the organization resource.
time	The time the organization resource was created in GCP.
operational_status	Current operational status. One of the following: Operational Non-Operational Repair in Progress DR Standby Ready Retired
Folder [cmdb_ci_gcp_folder]
name	The name of the organization folder.
parent_id	The ID of the parent resource.
parent_type	The type of the parent resource. Can be organization or folder.
time	The time the resource was created in GCP.
status	The status of the folder according to the lifecycleState status in GCP.
object_id	The ID of the organization folder.
Project [cmdb_ci_gcp_project]
name	The name of the project.
project_id	The ID of the project.
parent_id	The ID of the parent folder resource.
parent_type	The type of the parent resource. Can be organization or folder.
time	The time the resource was created in GCP.
operational_status	The status of the folder according to the lifecycleState status in GCP.
object_id	The ID of the project.
discovery_credentials	GCP account credentials.
Resource [cmdb_key_value]
key	The key, or label, associated with the GCP project. For example, country.
value	The project label value assigned to the GCP project. For example, ca.
configuration_item	The URL or path of the CI.

CI relationships

CI	Relationship	CI
Cloud Organization [cmdb_ci_cloud_org]	Contained by::Contains	Google Project [cmdb_ci_gcp_project]
Cloud Organization [cmdb_ci_cloud_org]	Contained by::Contains	Service Account
Cloud Organization [cmdb_ci_cloud_org]	Contained by::Contains	Google Folder [cmdb_ci_gcp_folder]
Service Account	Owns::Owned by	Google Project [cmdb_ci_gcp_project]
Google Folder [cmdb_ci_gcp_folder]	Contained by::Contains	Google Project [cmdb_ci_gcp_project]
Google Folder [cmdb_ci_gcp_folder]	Contained by::Contains	Sub Google Folder
Sub Google Folder	Contained by::Contains	Google Project [cmdb_ci_gcp_project]
