Configuring EMR Help
Summarize
Summary of Configuring EMR Help
The EMR Help application assists hospital staff in addressing clinician issues from an EMR system. It allows users to initiate service requests directly from the EMR, which automatically generates incidents in ServiceNow, capturing essential EMR variables for effective troubleshooting.
Show less
Key Features
- Installation: Integrate the EMR Help application with your ServiceNow instance.
- Data Configuration: Set up data tables to store system variables from the EMR system, ensuring all necessary columns exist.
- Request Parameters: Configure remote request parameters and definitions to support EMR service requests.
- User Roles: Assign roles to manage access to EMR Help features and data.
- Healthcare Case Types: Define healthcare case types to facilitate service requests from the EMR portal.
- Authentication: Implement digest token authentication for single sign-on with Epic.
- iFrame Support: Configure EMR Help to launch within Epic Hyperspace and Hyperdrive.
- Service Portal Setup: Establish a service portal for submitting IT service requests.
- Optional Enhancements: Implement encryption for data security and customize URL and REST API parameters.
Key Outcomes
By configuring the EMR Help application, ServiceNow customers can streamline the management of IT service requests from EMR systems, enhance troubleshooting efficiency, and improve clinician support within their healthcare environments. This setup also allows for secure data handling and tailored access control, ensuring a robust service delivery process.
Set up the EMR Help application to address different types of clinician issues submitted from an EMR system.
Configuration overview
Configuring EMR Help involves installing the application, then setting up user access and data.

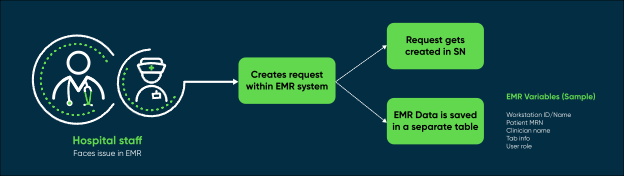

Hospital staff using the EMR system often encounter various challenges. In the event of an issue, they can initiate a service request directly from within the EMR system. Once a service request is created, the system automatically generates an incident in their ServiceNow instance.
Simultaneously, relevant EMR variables, such as workstation ID, patient details, clinician information, and the specific screen involved, are fetched from the EMR system and stored in a dedicated table within the EMR Help application. This additional information enhances the service request, providing fulfillers with crucial details for effective troubleshooting.
-
Install the EMR Help application to integrate your ServiceNow instance with an EMR system.
-
Configure the data table for a request type.
Review the data table associated with an IT request, such as the EMR Incident Data [sn_ind_rmt_help_incident_data] table. Then, make sure that the table has columns to store each system variable that you're planning to fetch from an EMR system. Add new columns corresponding to the system variables that don't exist in the table.
If a data table for an IT request doesn't exist, create another data table by extending the Remote Request Data [sn_ind_rmt_help_request_data] table.
For more information, see EMR Help data model.
-
Configure request parameters for EMR systems.
Configure the remote request parameters for an EMR system.
-
Configure request definitions for EMR systems.
Create or modify request definitions to support IT service requests from an EMR system. In addition, map the remote request parameters with the columns of the request data table associated with your task.
-
Assign roles for EMR Help users.
Assign roles to control access to features, capabilities, and data in the EMR Help application.
-
Configure healthcare case types for EMR Help.
Configure healthcare case types for EMR Help in to fulfill service requests made from the EMR Help portal.
The base healthcare case type [sn_hcls_case] is an abstract case type that provides a foundation to extend from when building your own healthcare case types.
-
Configure digest token authentication for EMR Help.
Configure ServiceNow single sign-on with Epic utilizing digest token authentication.
-
Configure iFrame support for EMR Help in ServiceNow
Configure EMR Help to launch within a frame in Epic Hyperspace and Hyperdrive.
-
Configure the EMR session info contextual sidebar.
Configure the EMR session info contextual sidebar in Workspace to manage the fields that display there.
-
Configuring the EMR Help service portal.
As an administrator, you can set up the EMR Help service portal for submitting IT service requests from an EMR system.
- Set up the IT service request fulfillment process
Manage IT service requests submitted from your EMR system by using either a dedicated service portal or a system support module.
-
(Optional) Implement encryption in EMR Help.
Encrypt fields, attachments, or both to secure your EMR system data.
-
(Optional) Customize the URL and REST API task parameters for EMR systems.
Use scripted extension points to manipulate URL parameters and REST API task parameters for an EMR system.
Additional configuration information
- To configure digest token authentication for EMR Help, see the How to Configure Digest Token Authentication for EMR Help with Epic Hyperspace [KB1002504] article in the Now Support knowledge base.
-
To configure EMR Help to launch within an iframe in Epic Hyperspace and Hyperdrive, see the How to configure EMR Help to launch within an iFrame in Epic Hyperspace and Hyperdrive [KB1207128] article in the Now Support knowledge base.
