Get Catalog Variables action

  • Release version: Zurich
  • Updated July 31, 2025
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Get Catalog Variables action

    The Get Catalog Variables action allows ServiceNow customers to retrieve values from catalog variables associated with requested items in the Service Catalog. It is available as a core action in Workflow Studio and can be used within flows by users with theflowdesigneroradminroles. This action enables you to select variables from multiple template catalog items and variable sets and obtain their current values at the time the action runs.

    Show full answer Show less

    Note that this action only captures catalog variable values at execution time. If you need to handle changes to these values dynamically, you must incorporate additional logic in your flow, such as using a Wait For Condition action with a changes operator and rerunning the Get Catalog Variables action accordingly.

    Inputs

    • Submitted Request: The requested item record (from the screqitem table) for which you want to retrieve catalog variable values. This input accepts a record data type and can be dynamically populated.
    • Template Catalog Items and Variable Sets: The catalog item record (sccatitem) used to populate the slush bucket of catalog variables. This input does not support dynamic pill values and is used to specify the source template of variables.
    • Catalog Variables: A slush bucket list where you select the specific catalog variables to retrieve values from the requested item. The selected variables become available as data pills for use later in the flow. You can also define flow-specific variables to appear here.

    Outputs

    The action outputs data pills representing the value of each selected catalog variable. These outputs vary by variable type and become available in the flow’s data panel for use in subsequent flow steps. Supported Service Catalog variable types correspond to those documented for this action.

    Practical Example: Retrieving Catalog Variables for Hardware Items

    In a sample flow triggered by a Service Catalog request, the flow first identifies the catalog item record linked to the requested item. It then checks if the catalog item belongs to the Hardware category using conditional logic based on category Sys ID.

    The Get Catalog Variables action is configured with:

    • Submitted Request: set to the trigger record (the requested item)
    • Template Catalog Items and Variable Sets: set to the "Standard Laptop" catalog item containing the relevant variables
    • Catalog Variables: all three variables from the Standard Laptop item are selected

    The flow execution shows the action successfully retrieving the variable values: one string variable (empty) and two Boolean variables (both false), linked to the requested standard laptop item.

    Select variables from multiple template catalog items and variable sets using the Get Catalog Variables action.

    Roles and availability

    Available as a Workflow Studio ServiceNow core action. Users with the flow_designer or admin role can add an action to a flow and define configuration details.
    Note:
    This action only returns the value of catalog variables at the time it was run. If you expect the action to recognize when catalog variable values change, you must build that logic into your flow. For example, use a Wait For Condition action with a changes operator to get catalog variables when a field value changes. If the field value changes, you must add the action in the flow again.

    Inputs

    Provide a value for each input that your flow needs. To add dynamic values, you can also drag and drop pills from the Data panel or select them from the pill picker.

    Submitted Request
    Data type: Record

    The requested item record from the Requested Item [sc_req_item] table for which you want to get catalog variable values.

    Template Catalog Items and Variable Sets [Catalog Items and Variable Sets]
    Data type: Record

    The Catalog Item [sc_cat_item] record you want to use to populate the catalog variables slush bucket. This input does not support any data pill values.

    Catalog Variables
    Data type: Slush Bucket

    The list of catalog variables whose values you want to get from the requested item record. Each catalog variable that you select is displayed as a data pill in the data pane. You can define flow-specific variables that are displayed in the Available list. To define flow-specific variables, see Create flow Service Catalog variables.

    Outputs

    These outputs appear in the Data panel. You can use them as inputs elsewhere in your flow.

    Catalog Variables
    Data type: Varies by catalog variable type

    The data pane displays a separate data pill for each catalog variable selected from the Catalog Variables input. For a list of supported Service Catalog types, see Supported Service Catalog variable types.

    Get catalog variables for hardware items

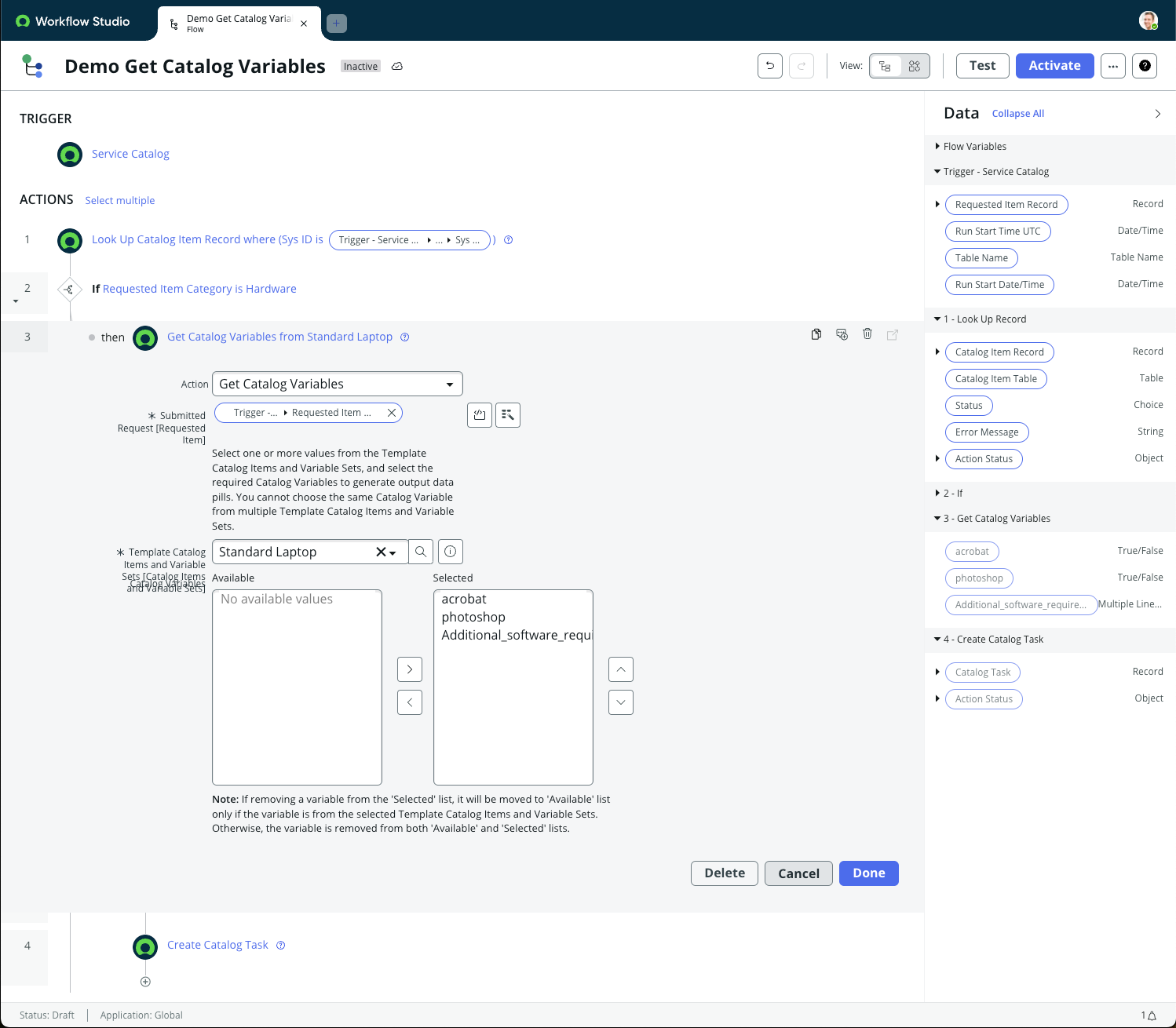

    Configuration of Get Catalog Variables action

    In this example, a flow runs when someone requests an item from the Service Catalog. The first flow step looks up the Catalog item record of the requested item. The If flow logic uses the category value (Sys ID) of the catalog item to determine if request is for an item in the Hardware category. The Get Catalog Variables action uses the trigger record as the Submitted Request input. The Template Catalog Items and Variable Sets input uses the variables provided in the Standard Laptop catalog item. All three available catalog variables are selected and displayed as data pills in the data pane.

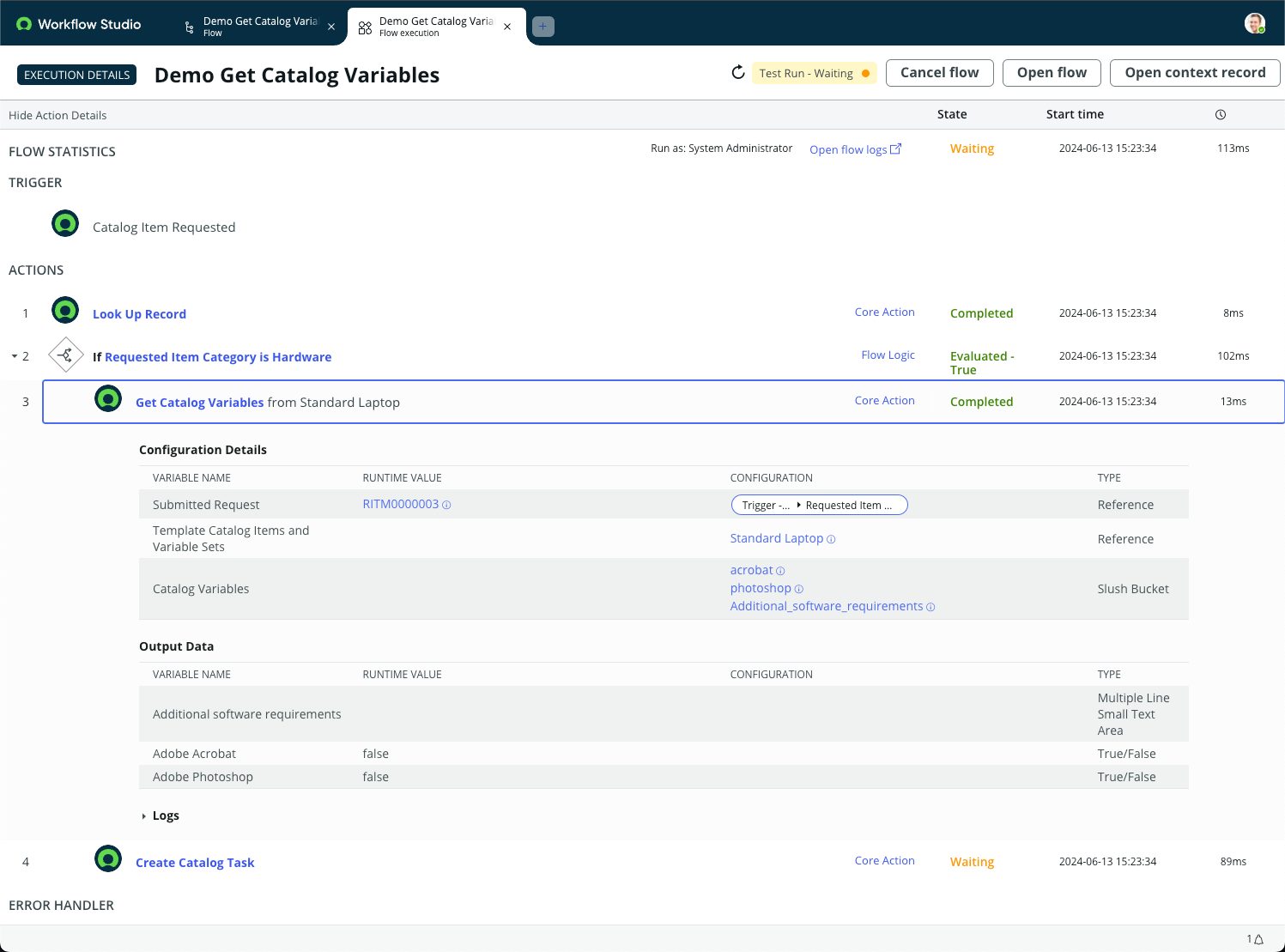

    Execution details of the Get Catalog Variables action

    The flow execution details show that the Submitted Request links to a request for a standard laptop. Of the three catalog variables, the string variable is empty and the two Boolean variables are false.
