HTML syntax editor

  • Release version: Washingtondc
  • Updated February 1, 2024
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of HTML Syntax Editor

    The HTML syntax editor is essential for editing HTML and Jelly scripts, controlling the rendered output on web pages. It supports both static XHTML and dynamic content through Jelly, allowing for script includes and UI Macros integration.

    Show full answer Show less

    Key Features

    • Syntax Support: Offers syntax coloring, indentation, line numbers, and automatic closing of braces and quotes for HTML and Jelly.
    • Auto-suggestions: Provides tag suggestions for improved coding efficiency.
    • Script Macros: Includes common code shortcuts to streamline development.
    • Editing Functions:
      • Toggle Syntax Editor: Enables or disables the syntax editor.
      • Toggle Comment: Comments selected code with Cmd+/.
      • Replace: Replaces text strings using Cmd+E, including regex support.
      • Replace All: Replaces all occurrences with Cmd.
      • Start Searching: Highlights search terms with Cmd+F.
      • Find Next/Previous: Navigates through search results using Cmd+G and Cmd+Shift+G.
      • Toggle Full Screen: Expands the editor for easier coding with Ctrl+M.
      • Help: Displays keyboard shortcuts with Cmd+H.
      • Save: Saves changes without leaving the view.

    Key Outcomes

    Utilizing the HTML syntax editor enhances your coding experience by providing powerful editing tools, simplifying the management of HTML and Jelly scripts, and improving overall efficiency in development. This results in faster and more accurate application builds within ServiceNow.

    The HTML syntax editor provides support for editing HTML and Jelly scripts and defines what's rendered when the page is displayed. The HTML syntax editor can contain either static XHTML or dynamically generated content defined as Jelly, and can call script includes and UI Macros.

    The syntax editor has these features.
    • HTML and Jelly script support
    • HTML and Jelly syntax coloring, indentation, line numbers, and automatic creation of closing braces and quotes
    • Auto-suggestions for HTML and Jelly tags
    • Script macros for common code shortcuts

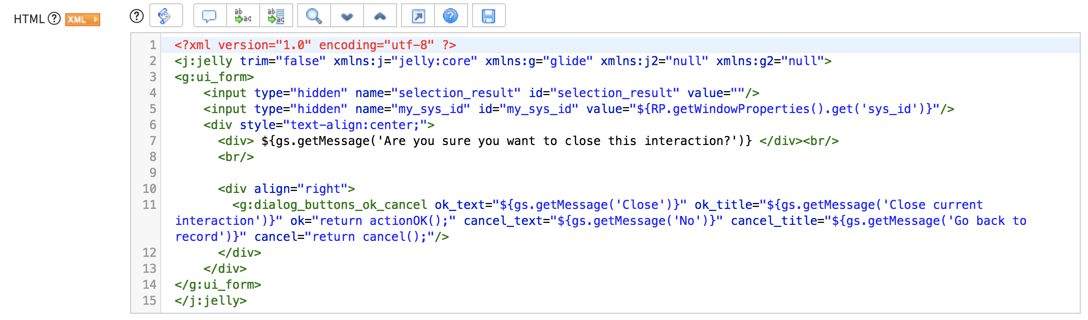

    Figure 1. HTML syntax editor
    Syntax editor for HTML and Jelly scripts.
    Table 1. HTML and Jelly editing functions
    Icon Keyboard shortcut Name Description
    Toggle syntax editor icon N/A Toggle syntax editor Disables the syntax editor. Click the Toggle syntax editor icon (Toggle syntax editor icon) again to enable the syntax editor.
    Toggle comment icon Cmd+/ Toggle comment Comments the selected code.
    Replace icon Cmd+E Replace Replaces the next occurrence of a text string in the script field.
    1. Click the Replace icon (Replace icon), then enter the string to replace, and press Enter. You can use regular expressions enclosed in slashes to define the string to replace. For example, the term /a{3}/ locates aaa.
    2. Enter the replacement string and press Enter.
    Replace all icon Cmd Replace All Replaces all occurrences of a text string in the script field.
    1. Click the Replace all icon (Replace all icon), then enter the string to replace and press Enter. You can use regular expressions enclosed in slashes to define the string to replace. For example, the term /a{3}/ locates aaa.
    2. Enter the replacement string and press Enter.
    Start searching icon Cmd+F Start Searching Highlights all occurrences of a search term in the script field and locates the first occurrence. Click the Start searching icon (Start searching icon), then enter the search term and press Enter.
    Find next icon Cmd+G Find Next Locates the next occurrence of the current search term in the script field. Click the Start searching icon (Start searching icon) to change the current search term.
    Find previous icon Cmd+Shift+G Find Previous Locates the previous occurrence of the current search term in the script field. Click the Start searching icon (Start searching icon) to change the current search term.
    Toggle full screen icon Ctrl+M Toggle Full Screen Expands the script field to use the full form view for easier editing. Click the Toggle full screen icon (Toggle full screen icon) again to return to standard form view. This feature is not available for Internet Explorer.
    Help icon Cmd+H Help Displays the keyboard shortcuts help screen.
    Save icon N/A Save Saves changes without leaving the current view. Click the Save icon (Save icon) in full screen mode to save without returning to standard form view.

    Editing tips

    • To insert a fixed space anywhere in your code, press Tab.
    • To indent a single line of code, click in the leading white space of the line and then press Tab.
    • To indent one or more lines of code, select the code and then press Tab. To decrease the indentation, press Shift+Tab.
    • To remove one tab from the start of a line of code, click in the line and press Shift+Tab.
