Create modals in UI Builder

  • Release version: Washingtondc
  • Updated February 1, 2024
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Create Modals in UI Builder

    Modals in UI Builder are overlay windows that enhance user experience by controlling interactions until closed. They can display various content types including static and dynamic text, forms, images, and buttons. Preconfigured modals are available for ease of use, allowing you to focus on configuring their content and display settings.

    Show full answer Show less

    Key Features

    • Modal Components: UI Builder provides modals with a header, content area, and action buttons.
    • Modal Types:
      • Alert: Informs users about actions like irreversible deletions.
      • Confirm: Requests user confirmation for actions, e.g., deleting data.
      • Confirm and Destroy: Warns users about the seriousness of an action, typically for deletions.
      • Custom: Allows full design flexibility with layouts, components, and CSS styling.
      • Iframe: Integrates external content into the modal from a specified URL.
    • Event Handlers: You can configure event handlers to trigger specific actions when users interact with modals.

    Key Outcomes

    By implementing modals, ServiceNow customers can enhance user engagement through clear prompts and alerts. This contributes to a more controlled and informative user experience, reducing the chances of unintended actions. For detailed instructions, refer to the section on adding a modal to a component.

    Use modals in UI Builder with components to provide alerts or calls to action for a user. UI Builder comes with modals to save time and effort.

    What are Modals?

    Modals, also known as dialogs, are windows that overlay another content window. Modals take control of the user experience. Users cannot interact with the overlaid window until the modal is closed. Modals can contain different types of content such as:
    • Static text
    • Dynamic text
    • Forms
    • Images
    • Buttons

    UI Builder has preconfigured modals available. You can add a modal to your component. Then, configure the content of the modal, and how it displays on the screen. Add an event handler to the modal to perform an action when a user selects it. The action can alert a user about something, or ask a user to confirm an action. A modal is a way to ensure that a user knows what is happening. For example, a modal may ask a user to confirm a selection before continuing whatever action they are performing on the main page.

    Modal Anatomy

    Modals in UI Builder can have:
    • Modal header
    • Modal content
    • Close dialog button (no action taken by the modal)
    • At least one Modal button (action can be taken by the modal)

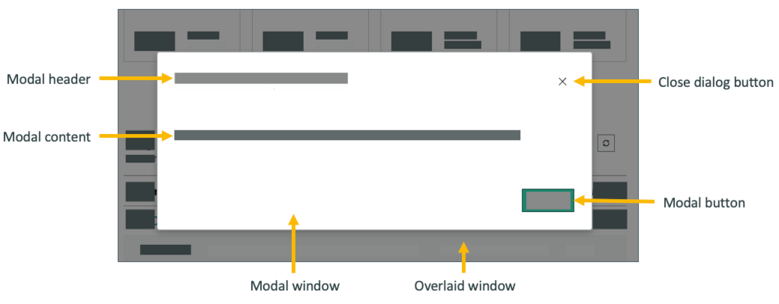

    Diagram showing the different parts of modals.

    Modal types

    Different types of modals are available in UI Builder, as shown in the following table.

    Modal type Description
    Alert An Alert modal provides information relating to the component action. For example, when a user presses a delete button, you could have an alert pop-up that lets the user know they cannot undo a delete action.
    Confirm A Confirm modal asks a user to confirm the component action. For example, when a user presses a delete button, the user would have to confirm the deletion of data. You can choose the confirm options from the primary and secondary button label fields, such as Yes/Cancel.
    Confirm and destroy A Confirm and destroy modal is more directive, usually relating to deleting or erasing content. It lets the user know the seriousness of an action, and asks them whether they want to proceed with the action.
    Custom Custom modals address scenarios that are not handled using the standard modals. Custom modals can be thought of as a container component on a modal. You can add a custom layout, components, events, and data resources just like you do on a page. The custom modal uses layouts to let you fully design what information you want in the modal. Layouts also decide where the information sits within the modal screen. You can use Cascading Style Sheets (CSS) styling to change the visual look of the modal.
    iframe Use iframe to bring content into your modal from existing iframe content from a URL and data.
    Modal viewport Dynamically pass content into your viewport modal through an event binding using a client script.

    Event handlers and modals

    Expose events to modals to handle call-to-action events. For example, a primary action, secondary action, and so on. You configure the data by adding an event handler and invoking a data resource. It is as simple as adding a new event handler for the component that has a modal. Or you can add an event handler to the modal itself. You select the event that you want associated with the component or modal and add it. See Add modal to component for detailed instructions.
