Work with the Entity View Action Mapper for UI Builder

With UI Builder, you can use the Entity View Action Mapper (EVAM) application to standardize how the data sources in your components are displayed in your cards and lists.

EVAM Overview

Entity View Action Mapper (EVAM) is an application that standardizes how different data sources are displayed in cards and lists. UI Builder uses EVAM data sources to show information in a component as a card grid view or as a list of information. You can add a toggle to your component to let users switch between card grid and list views.

EVAM consists of the following components:

• Entity (data source). Associated data that you intend to display, such as a community post or a user.
• View. How a card displays data and actions.
• Actions. Action that it performs on the card. For example, you can activate a user into your system.
• Map. A process that maps the data source to generic fields that are displayed on the card. You can also associate actions that trigger from the card view.

EVAM data sources

You add EVAM data sources in UI Builder and bind them to a component.

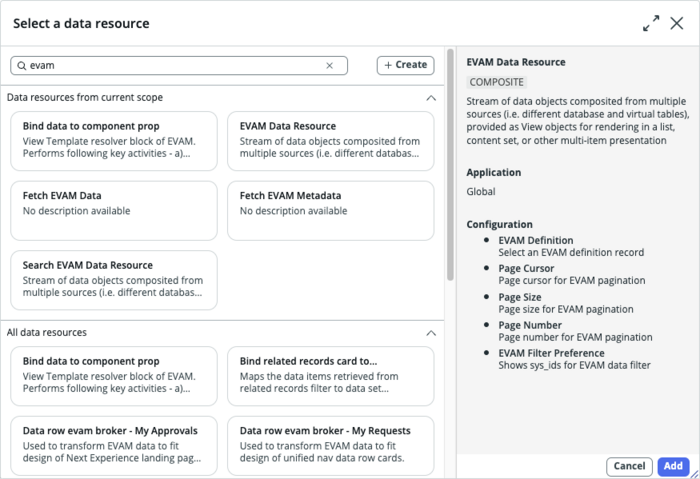

Figure 1. EVAM data resources

Table 1. EVAM data sources

EVAM data source	Description

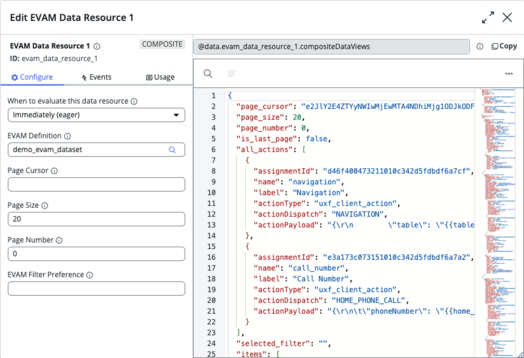

EVAM Data Resource	Add an EVAM definition and other information about the data source. Type: Composite. When to evaluate: In the When to evaluate this data resource, select Immediately to have the EVAM data resource instance evaluated on page load or select Only when invoked to use an event handler to evaluate the EVAM data resource. EVAM definition: In the EVAM Definition field, add the EVAM definition record that is associated with the data resource. Page cursor: In the Page Cursor field, add a page cursor for the EVAM definition. Page size: In the Page Size field, add a size for the EVAM pagination. Page number: In the Page Number field, add the page number for the EVAM pagination. EVAM Filter Preference: In the EVAM Filter Preference field, enter the sys_ids for the EVAM data filter. To add an event handler for when that data fetch is initiated, succeeded, or failed, select Events. In the Now Code Editor section, which is next to the Configuration pane, preview the EVAM definition script. Figure 2. EVAM Data Resource configuration

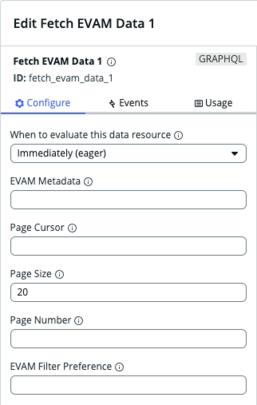

Fetch EVAM Data	To add an EVAM definition and other information about the data source, select Configuration. Type: GRAPHQL. When to evaluate: To have the EVAM data resource instance evaluated on a page load, select Immediately. To use an event handler to evaluate the EVAM data resource, select Only when invoked. EVAM definition: In the EVAM Definition field, enter the EVAM definition record that is associated with the data resource. Page cursor: In the Page Cursor field, enter a page cursor for the EVAM definition. Page size: In the Page Size field, enter a size for the EVAM pagination. Page number: In the Page Number field, enter the page number for the EVAM pagination. EVAM Filter Preference: In the EVAM Filter Preference field, enter the sys_ids for the EVAM data filter. To add an event handler for when that data fetch is initiated, succeeded, or failed, select Events. Preview the EVAM definition script in the Now Code Editor to the right of the Configuration pane.

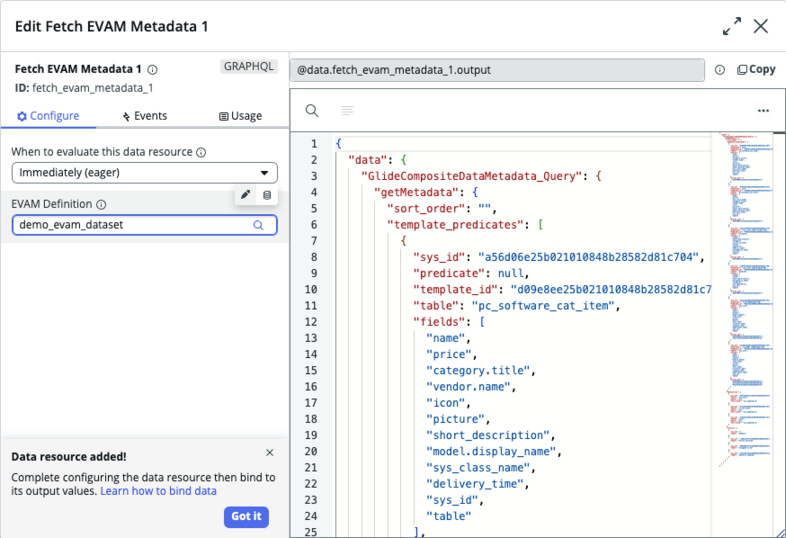

Fetch EVAM Metadata	To select when to evaluate the EVAM data resource and add an EVAM definition, select Configuration. Type: GRAPHQL. When to evaluate: To have the EVAM data resource instance evaluated on a page load, select Immediately. To use an event handler to evaluate the EVAM data resource, select Only when invoked. EVAM definition: In the EVAM Definition field, enter the EVAM definition record that is associated with the data resource. To add an event handler for when that data fetch is initiated, succeeded, or failed, select Events. Preview the EVAM definition script in the Now Code Editor to the right of the Configuration pane.

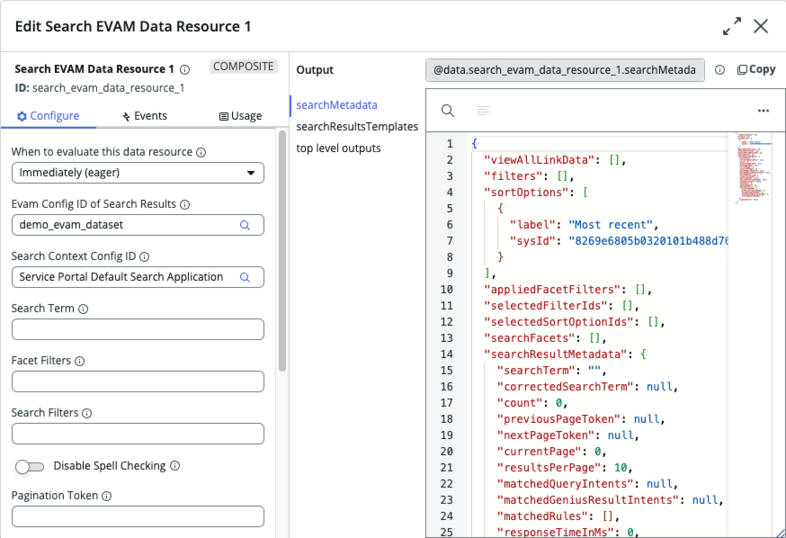

Search EVAM Data Resource	To add an EVAM definition, and other information about the data source, select Configuration. Type: Composite. When to evaluate: To have the EVAM data resource instance evaluated on a page load. select Immediately. To use an event handler to evaluate the EVAM data resource, select Only when invoked. EVAM Config ID: In the EVAM Config ID field, add the EVAM Config ID that is associated with the data record. Search Context Config ID: In the Search Context Config ID field, add the Search Context Config ID that you are searching for. Search Term: In the Search Term field, add the search terms that you are searching for. Facet Filters: In the Facet filters field, add any facet filters to help define your search. Search Filters: In the Search Filters field, add any search filters to help define your search. Disable Spell Checking: In the Disable Spell Checking field, select if you desire spell checking to be on or off during your search. Pagination Token: In the Pagination Token field, enter a pagination token if needed. To add an event handler for when that data fetch is initiated, succeeded, or failed, select Events. Preview the EVAM definition script in the Now Code Editor to the right of the Configuration pane.

• Add an Entity View Action Mapper data resource to a page
  Add an Entity View Action Mapper (EVAM) data resource to your page in UI Builder so that you can standardize how the data sources in your components are displayed in your cards and lists.
