Configure signals for breakdown elements

Configure signal detection and assign responsibility for multiple breakdowns and breakdown elements on one indicator.

시작하기 전에

An administrator must activate KPI Signals for the indicator. For more information, see Activate KPI Signals monitoring for an indicator (KPI).

Role required: responsible user for the indicator or admin.

이 태스크 정보

For example, KPI Signals could simultaneously monitor the following indicators and breakdowns:

• Number of open incidents (no breakdown)
• Number of open incidents, Priority = 1-Critical
• Number of open incidents, Priority = 2-High
• Number of open incidents, Category = Software

However, KPI Signals could not monitor "Number of open incidents, Priority = 1-Critical, Category = Software."

프로시저

1. Open KPI Signals for the indicator, without first selecting a filtering breakdown in KPI Details.

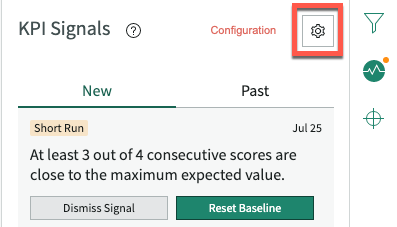

2. Click the cogwheel to open the Configuration options.

3. Click Add breakdowns.

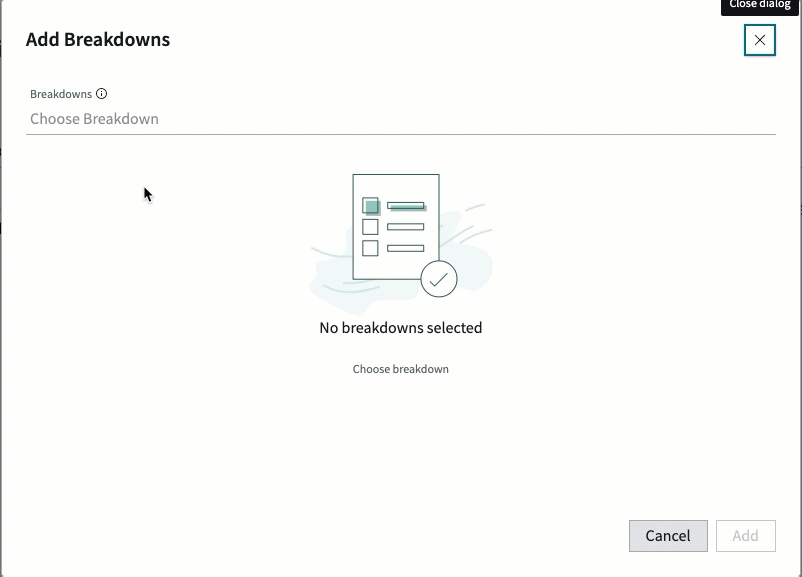

   The Add Breakdowns dialog opens.
4. Click in the Breakdowns field and select a breakdown.
   A list of elements for the breakdown appears.
5. 옵션: Click Filter and use the condition builder to build a filter for the elements.
6. Select at least one element and click Add
7. To monitor signals on elements of another breakdown, click Add breakdowns again and repeat the steps.
8. In the Signal Detection tab, activate monitoring for the KPIs and set the baseline start and number of scores required to calculate the baseline.
   For more information about the settings on the Signal Detection tab, see Configure signal detection.
9. Open the Responsibility tab and assign a responsible user to each KPI.
   For more information about responsible users and the settings on the Responsibility tab, see Configure responsibility for KPI Signals.
10. Open the Notifications tab and set how often the responsible user should get an email notification for an unresolved signal.
    You can also set the total number of reminders the responsible user gets for an unresolved signal. Also set the anti-signal factor, which is used to calculate how many scores without a signal result in an anti-signal. For more information about anti-signals, see Signal, no signal, and anti-signal. For more information about the settings on the Notifications tab, see Configure signal notifications.
