Create an indicator group

For convenience, you can organize related indicators into an indicator group. When you configure some visualizations that show multiple indicators, you can specify an indicator group instead of individual indicators.

시작하기 전에

Role required: pa_admin, pa_power_user, or admin

이 태스크 정보

By creating indicator groups, you can organize indicators along whatever themes are most useful to you. The indicators do not have to be of the same type or share an indicator source or data collector job. Indicator groups save you the trouble of specifying multiple individual indicators when you configure the following objects:

• List widgets
• Time series widgets with the relative compare visualization
• Email notifications about indicators
• Security Incident Analytics treemaps

After you create an indicator group, you can add indicators to the group or remove them from the group. This change propagates to all objects that use the indicator group, so you do not need to edit the configurations of the objects.

프로시저

1. Use one of the following navigation paths:
   • If you are on an upgraded instance that has not migrated to Platform Analytics, navigate to All > Performance Analytics > Indicators > Indicator Groups and select New.
   • If you are on a new instance or have migrated to Platform Analytics, navigate to All > Platform Analytics Administration > Indicators > Indicator Groups and select New.
2. Click New.
3. Enter a Label for the indicator group.
4. Open the Additional actions menu () and click Save.
   The Indicators related list appears.
5. Click Edit on the Indicators related list and add indicators to the group.
6. Click Save to finish adding indicators, then Update to exit the Indicator Group record.

Creating and using the 'Open and Resolved Incidents' indicator group

In this example, create an indicator group with all the indicators that refer to either open or resolved incidents. The incidents are all included with the demo data for Performance Analytics. After creating the indicator group, create a list widget that uses the indicator group and add the widget to a dashboard.

1. First, go to Performance Analytics > Indicator Groups and click New. An empty Indicator Group form opens.

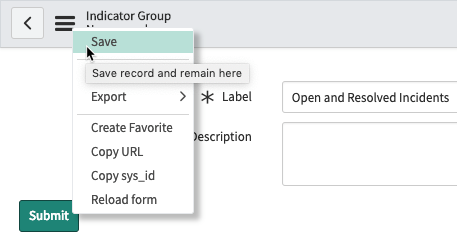

2. Give the indicator group the label Open and Resolved Incidents, and save the form from the Additional actions menu.

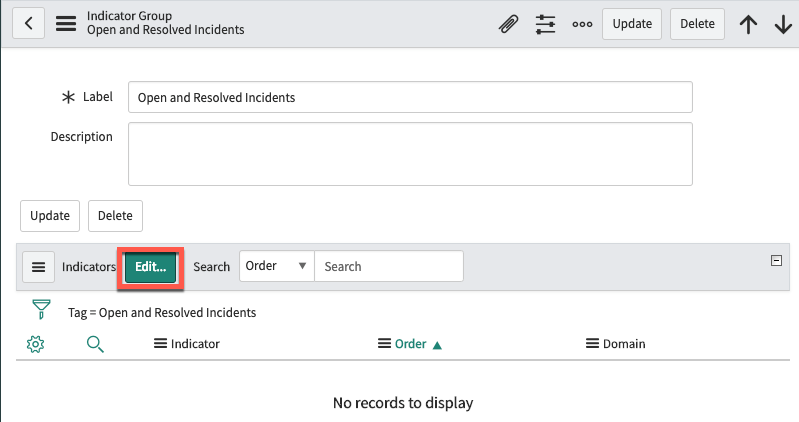

   The Indicators related list appears at the bottom of the record.

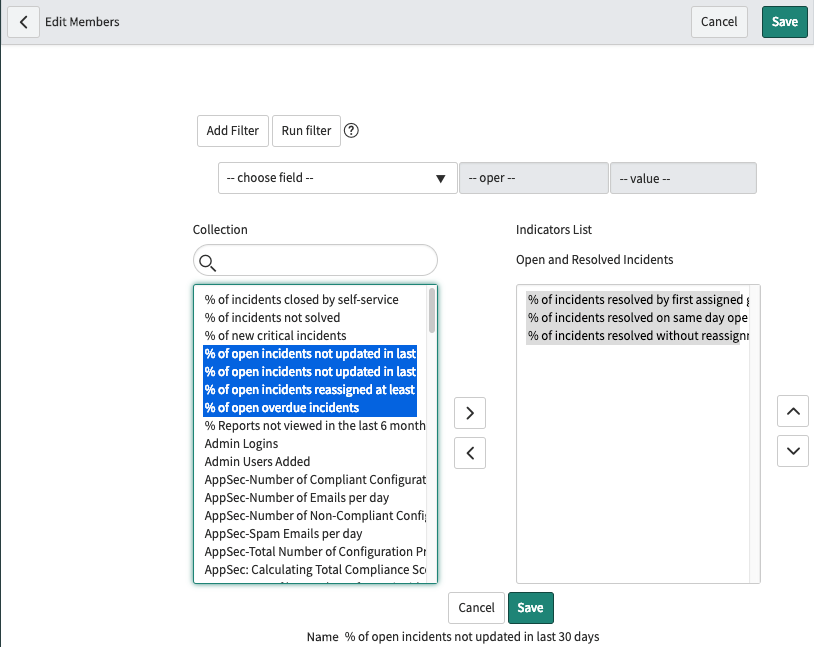

3. Click Edit, which opens the Edit Members dialog. To group all the indicators that involve resolved or open incidents, add all the indicators with 'resolved' or 'open' in their name. Also add the Incident backlog growth indicator.



4. The indicator group is complete. Click Save in the Edit Members dialog and then Update on the indicator group record.

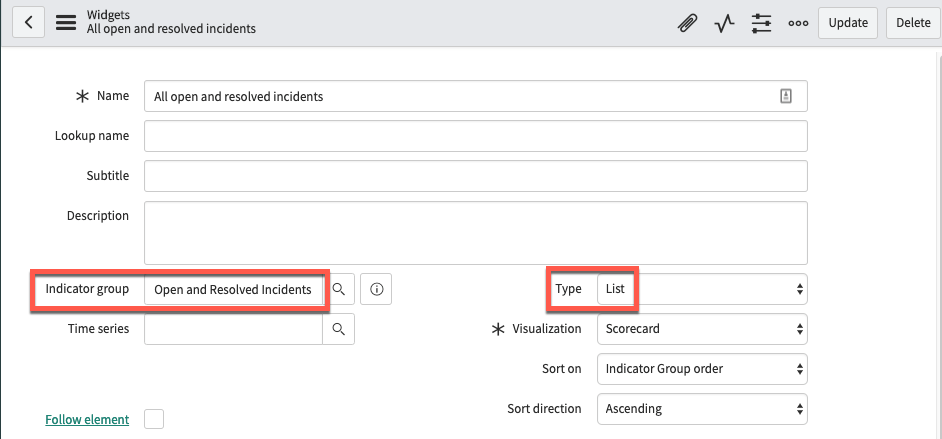

5. Now create a Performance Analytics List widget and specify the Open and Resolved Incidents indicator group.

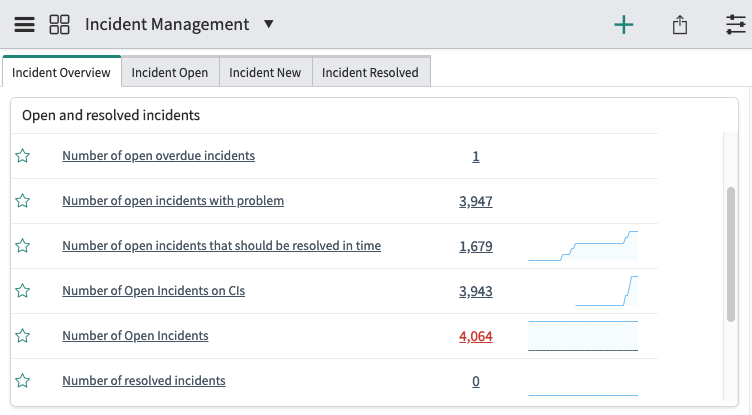

6. To share the widget with other users, add it to the Incident Management dashboard.
