Activity definition form

Use the Activity Definition form to report on steps that occur within your business process.

표 1. Activity Definition form

Field	Specify the field or column from the table whose data you want to view in the process graph.
Type	The type of values you want to mine. You have the following values: Field Values (Default): This is the default selection. This option is available whenever you create an activity definition. Date Time: Uses date time value from the actual record rather than the audit history and is displayed as a grouped node on the process map. Compound: One node or process graph representing change in the multiple field value from the actual record rather than the audit history. Child Attached: This option is available when you have selected two tables for table configuration and have set a child-parent relationship. This option is available only for the parent table configuration. In the visualization, you will see when the child was attached in the process. Parent Attached: This option creates a node on the child process representing when a parent record was attached to a child.
Display Name (Optional)	Name to display for this activity. If no name is entered, the activity name displays the value provided for Field.
Choose activity values	You can choose to mine specific activity values for the selected field.
Activity values	This field is available only if you select the Choose activity values field. This field provides a list of values for the selected field that you want to mine. For example, you have chosen the Incident table. Now, you want to see records that went through Assignment group Service Desk and Assignment group Database. To see this data, you must select Assignment group as the Field and add Service Desk and Database from List of values.

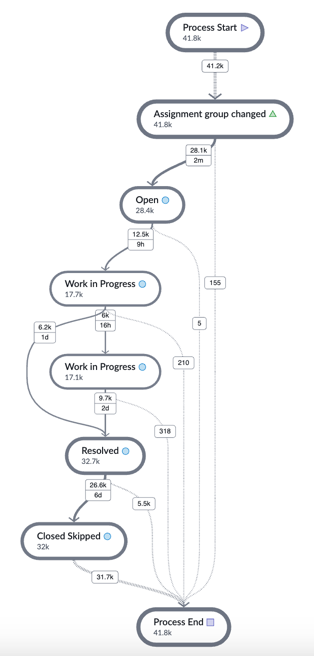

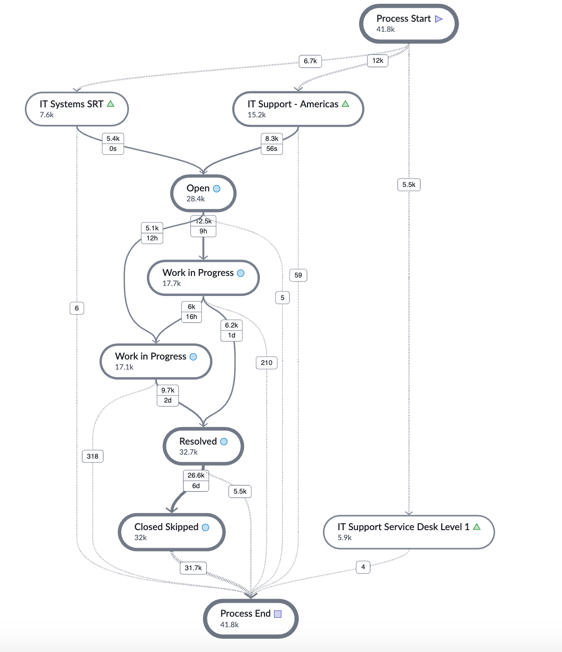

Group activities	If you select to group activities, the process map reflects the group of changes for the activity as one change item. For example, suppose you configure Assignment group to report on and select group activities. Changes to assignment group occur and list in the audit log as: Group A > Group B > Group C. Result: The data in the process map reflects as one change: 'Assignment group changed'. If this option is not checked, the process map reflects records of each instance of change individually. Example: You configure Assignment group to report on, but don't select to group activities. Changes to assignment group occur and list in the audit log as: Group A > Group B > Group C. Result: The process map reflects each individual change made, continuing to reflect the changes as is standard from the audit log: 'Change: Group A > Change: Group B > Change: Group C'. 그림 1. Changes are grouped 그림 2. Changes shown as standard
Grouped Activities name	Auto-generated name for grouped activities, or you can enter a different name for changes to the field that will reflect in the visualization. 주: This field is only available when the Group activities field is selected.
Activity of Interest	Whether field changes appear in the analyst workbench. 주: When this option is selected, field changes don’t appear in the analyst workbench, but can still be used in contextual conditions in transitions or findings.
Include empty start node	Includes an empty node on the process graph when the selected activity definition field is empty at the time of record creation.
