Set activity definitions
Set activity definitions to determine what appears on the process graph, such as State, Assignment group, or Assigned to. This enables you to discover, monitor, and improve processes by visually identifying bottlenecks, deviations, and inefficiencies in workflows.
시작하기 전에
Role required: sn_process_mining_analyst, sn_process_mining_power_user, or sn_process_mining_admin
이 태스크 정보
Setting activity definitions is a mandatory task to create a project.
Process Mining gathers audit log field data for the activities that you define. Configure at least one activity to create a Process Mining project.
프로시저
-
Select New in the Activities area.
-

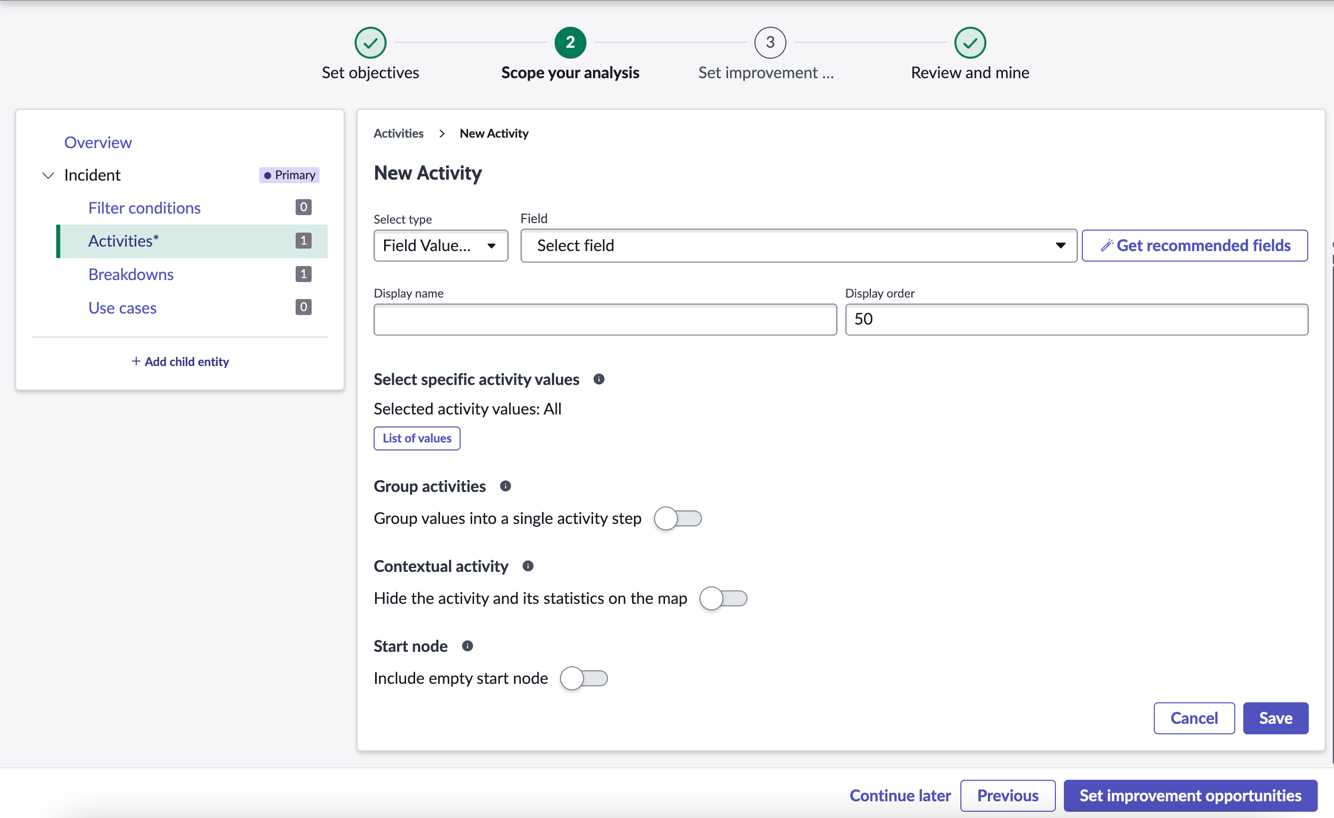

Fill the form.
표 1. New Activity form Select type The type of values you want to mine. You have the following values:
- Field Values (Default): This is the default selection. This option is available whenever you create an activity definition.
Selecting any journal or textual fields for activity definitions, sets the grouped value to “Group values into a single activity step”.
- Child Attached: This option is available when you’ve selected two tables for table configuration and have set a child-parent relationship. This option is available only for the parent table configuration. In the graph, you see when the child was attached in the process.
- Date Time: Uses date time value from the actual record rather than the audit history and is displayed as a grouped node on the process map.
- Compound: Compound events for 2 or more activity definitions that are updated to any value in certain processes, such as sales, finance, or security. A last-moment change could infer another
approval process and potentially impose additional steps and consequently longer resolution time. It could also result in a compliance breach. For example: If you have 4 activity definitions,
but only one is updated, it must be captured in the compound event.
To use a compound activity definition, you must have at least one activity definition of a type other than Compound.
You can create a compound activity for any journal or textual fields, such as work notes or comments.

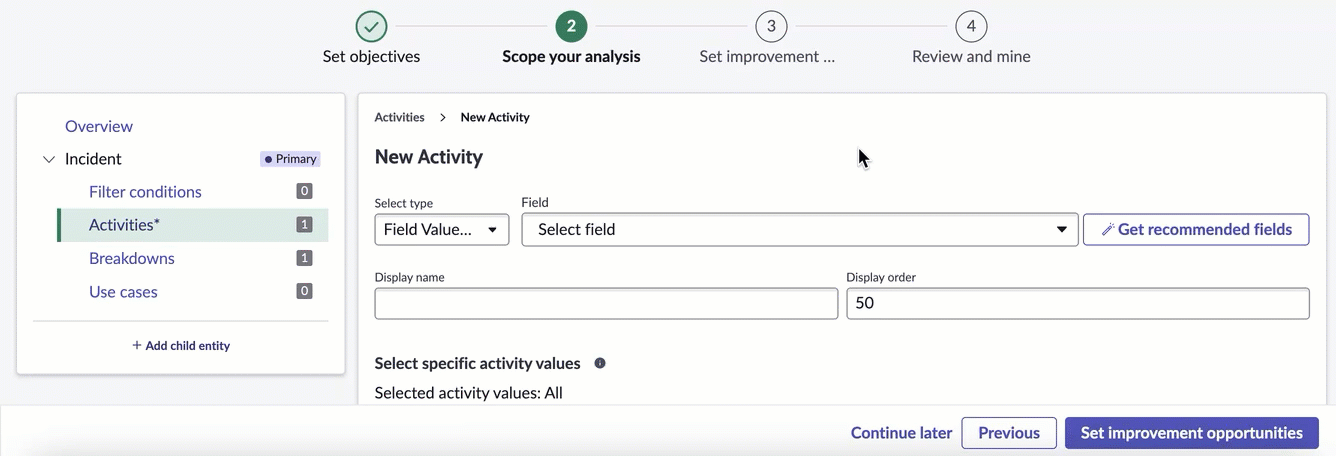

Field Specify the field or column from the table whose data you want to view in the process graph. Get recommended fields This field is available only if you choose Field Values (Default) in the Select type field. This button provides recommendations of fields that are ideal to be set as activity definitions for your project.
These recommendations come from the process configuration set for the table on which the project is based. They’re derived from the Process perspectives section of the Process details page in the Process Configuration Builder.
For more information on Process perspectives, see Configure process details.
The recommendation is provided even if you don’t specify anything in the process configuration for the table. If nothing is configured on the Process details page, we recommend the fields that have high frequency of change.
Select the button, and a dialog box is displayed to select from the list of recommended fields. Select the fields, and select Select.
You can choose to use any other field outside of the recommendation too.
Attached Table Configuration This field is available only if you choose Child Attached in the Select type field. Select the table name from the list. However, it displays only the table that is used for the child entity.
Show Related Fields This field is available only if you choose Field Values (Default) or Date Time in the Select type field. If you want to see the list of related fields, select the Related Fields icon (
), and select a field. This field helps you set dot-walking on records.
Display name Name to display for this activity. If no name is entered, the Display name displays the value provided for Field.
Display order This field isn’t available if you select Contextual activity. The value in this field decides which events must be displayed first on the process graph when multiple activity definitions have the same timestamp.
When multiple activity definitions have the same display order, the alphabetic order is applied.
Provide any value (only integers). The default value is set to 50.

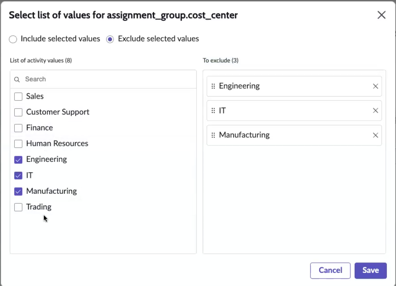

Select specific activity values This field is available only if you choose Field Values (Default) in the Select type field. You can choose to mine specific activity values for the selected field. Select the specific activity values that you want to analyze.
You can select the values and choose to include or exclude.
For example, you have chosen the Incident table. Now, you want to see records that went through Assignment group Service Desk and Assignment group Database. To see this data, you must select Assignment group as the Field and add Service Desk and Database from List of values.
Group activities This field enables you to choose whether you want to view all the changes for an activity definition grouped as one node or view each change for an activity definition as a separate node.
When you select the field as journal or textual fields for Field Values (Default) type or when you select the Compound type, this field is selected and is unavailable for any change.
This field has two options:- Display each unique value as separate activity steps: If you select this option, the process map reflects the group of changes for the activity as separate
item.주:This is by default disabled for Field Values (Default), Child Attached, Date Time, and Compound.
- Group unique values and display as a single activity step: If you select this option, the process map reflects the group of changes for the activity as one change item.
For example, configure Assignment group and State to report on. Select Group unique values and display as a single activity step for Assignment group and Display each unique value as separate activity steps for State.
Changes to assignment group are displayed as one node 'Assignment group changed'. You can view the records or view the details to see which records are affected and how. Every change to State is displayed as an individual node.
그림 1. Changes are grouped In the next scenario, configure Assignment group and State to report on and select Display each unique value as separate activity steps for Assignment group and State.
Every change to Assignment group and State is displayed as individual nodes.
그림 2. Changes aren’t grouped Grouped Activities name Name for the grouped activities. If you select the Group unique values and display as a single activity step option, then the Grouped Activities name field is displayed.
By default, the name that is displayed is <field-name changed>. For example, 'Assignment group changed'.
Contextual activity This field is available only if you have not chosen to group activities.
When this option is selected, activity definitions don’t appear on the process graph, but can be used in the findings and transitions.Start node This field is available only if you choose Field Values (Default) in the Select type field. When this option is selected, an empty node on the process graph is displayed when the selected activity definition field is empty at the time of record creation.
주:To edit an activity definition, select the activity definition from the list and make edits. To delete an activity definition, select the activity definition from the list and select the Delete icon (
). - Field Values (Default): This is the default selection. This option is available whenever you create an activity definition.
