Select a group-by value in a data visualization as a viewer

  • 릴리스 버전: Australia
  • 업데이트 날짜 2026년 03월 12일
  • 소요 시간: 2분

    • A viewer of a data visualization can select the value for grouping the data in the visualization.

    If a data visualization is configured with alternative group-by values, a viewer can pick which value to apply. No editing rights are required. On a visualization that shows Service Catalog data, the options can include Service Catalog variables, as described in Service catalog variables in data visualizations.

    주:
    Instructions for configuring alternative group by are included in the data options topics for the relevant data visualizations.
    Toggle the visibility of the selector for group-by values by selecting Change group by in the data visualization's More actions menu. An editor of the visualization can set whether the selector is visible or hidden by default.
    The toggle for showing or hiding the group-by value selector in the data visualization More options menu.
    All data visualizations that support group by also let viewers select the group-by value, except for pivot tables. For all such data visualizations except bar visualizations, you have only a single group-by value to select.
    Group-by selector for time series visualizations
    If you are viewing a bar visualization, you can choose a stack-by value as well as a group-by value.

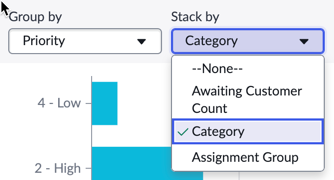

    Bar visualization group by selector for both group by and stack by.
    In a time series visualization that shows more than one metric, you might have the option of selecting a group-by for each metric. You are given only valid choices.

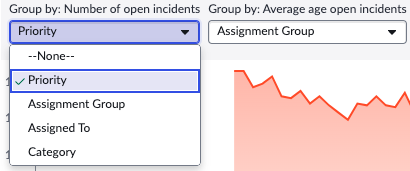

    그림 1. Selecting a group-by value for each metric in a time series

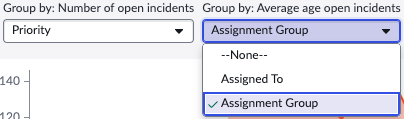

    Selecting a group-by for the first of 2 metrics in a time series visualization. Selecting the second of 2 metrics in a time series visualization.
