Configure Process Mining map in PAR dashboard

Configure a Process Mining map to view the process graph in the PAR dashboard.

시작하기 전에

Role required: sn_process_mining_power_user or sn_process_mining_admin

프로시저

1. Navigate to your PAR dashboard.

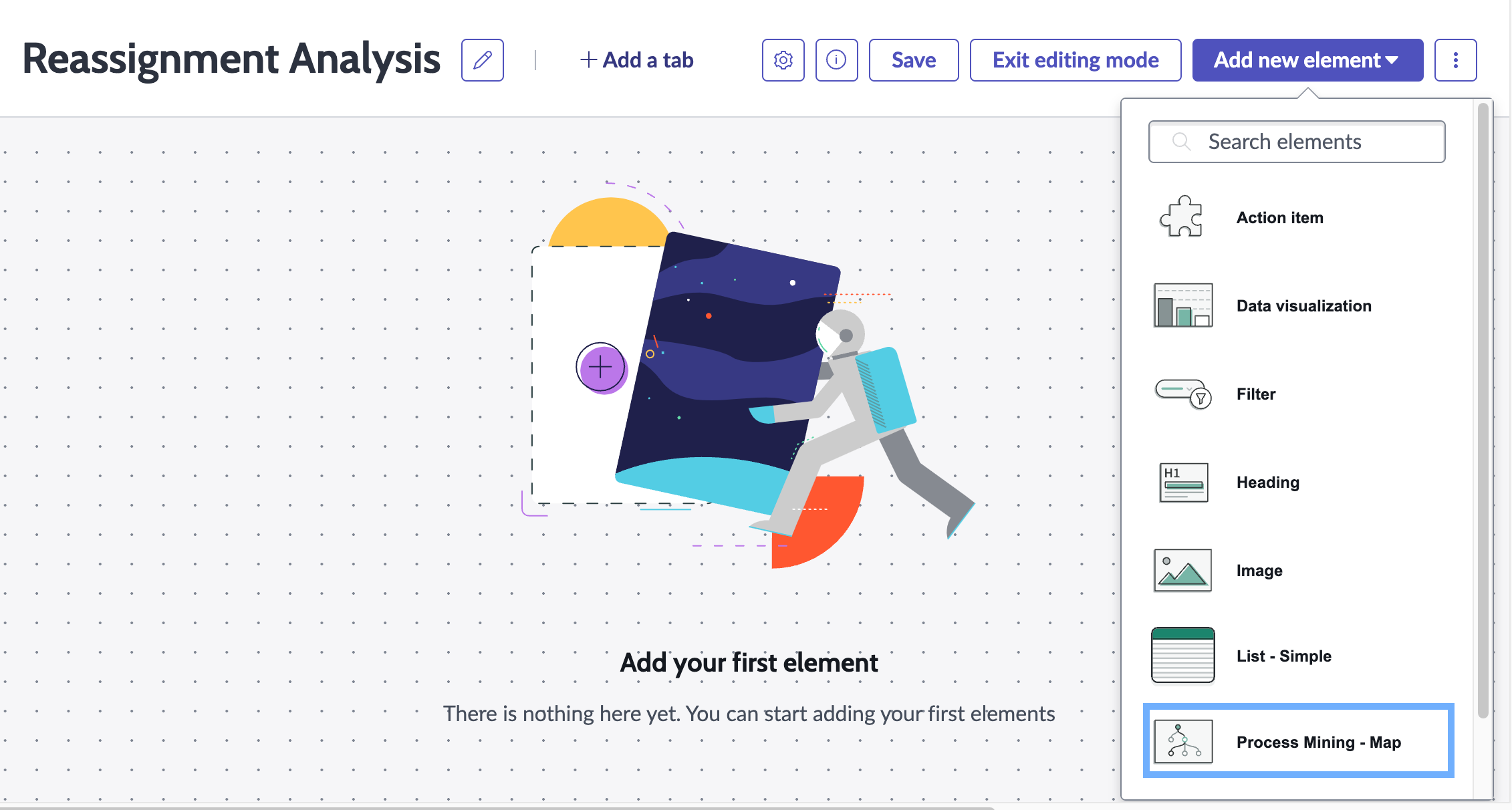

2. Configure a Process Mining map.
   1. Select Add new element.
   2. Select Process Mining - Map from the list.

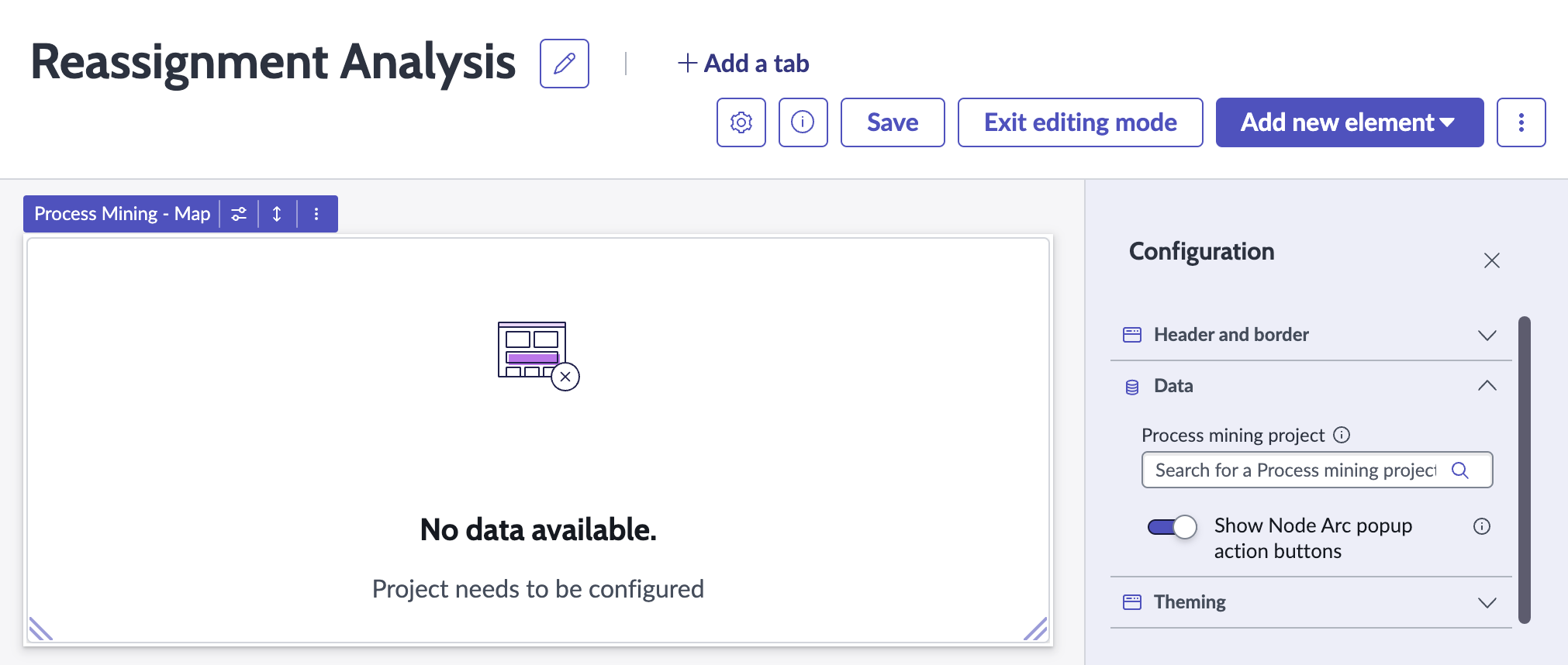

3. Configure a Process Mining project for the map.
   1. Select a Process Mining project from the Process mining project list in the Configuration area.

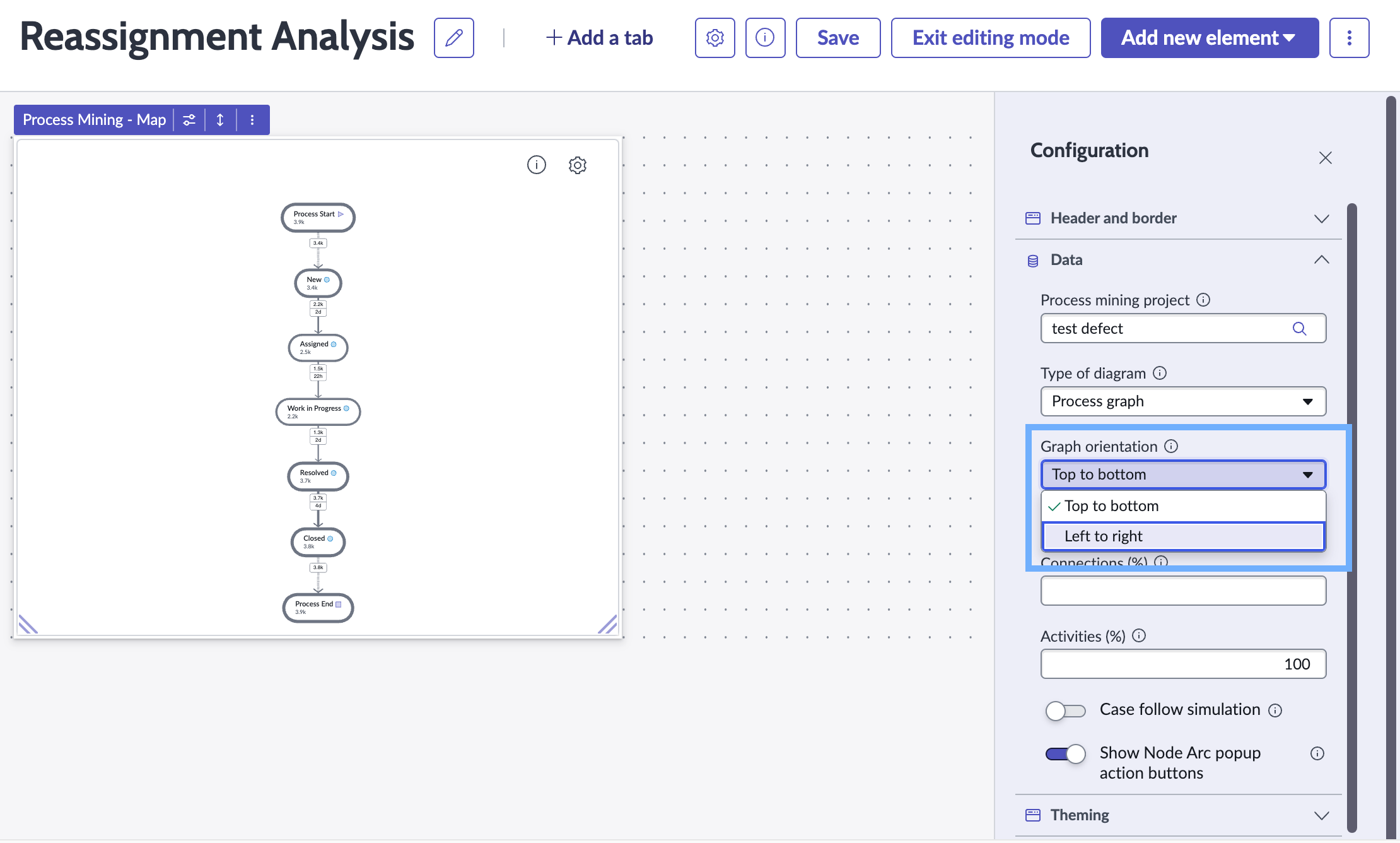

4. Customize the orientation of the outline of the process graph set for the current project workbench for nodes within the graph.
   For example, when using a vertically oriented widget, you might prefer the graph and star diagram to be displayed in a vertical layout rather than a horizontal one.

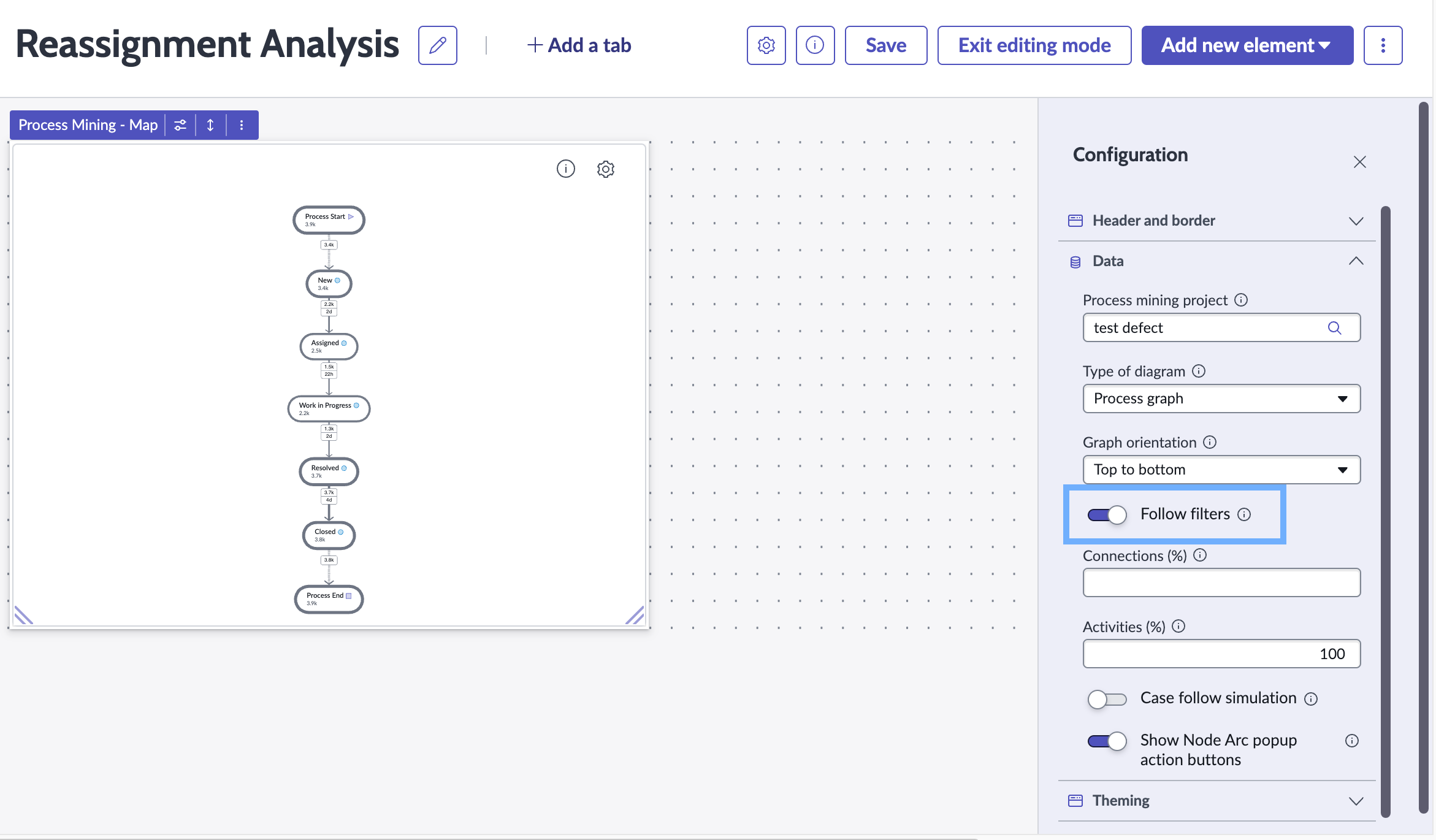

5. If you have configured filters in your dashboard, and you want the Process Mining map to reflect the applied filters, then select the Follow filters button.

6. Select Save and Exit editing mode.
   For more information about Platform Analytics (PAR) dashboards, see Exploring Platform Analytics dashboards.

결과

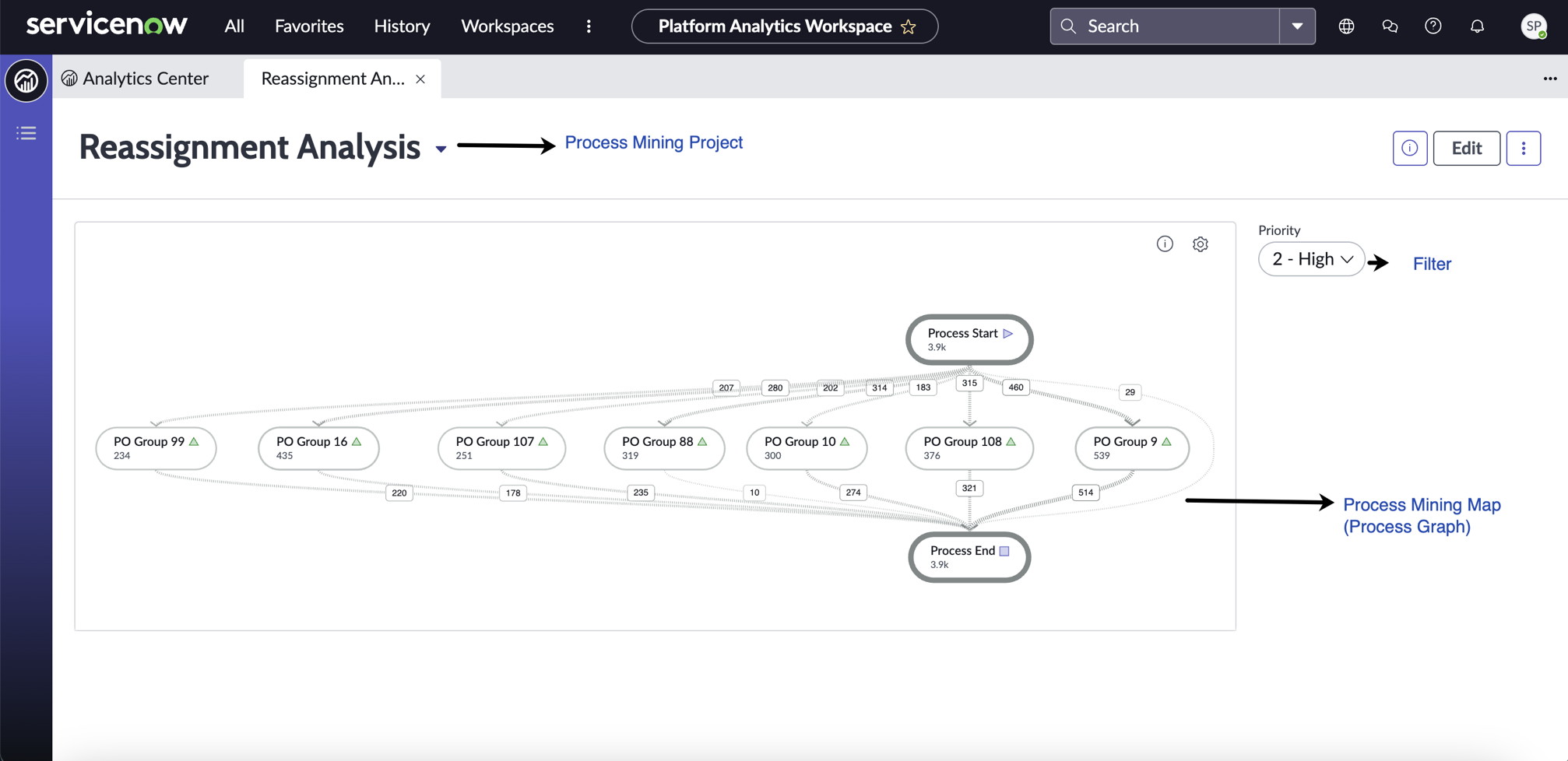

The Process Mining map is available in the PAR dashboard.
