Create a heatmap visualization in a pivot widget

To group the scores of an indicator by two breakdowns, use a heatmap visualization in a pivot widget.

시작하기 전에

Role required: pa_admin or admin

이 태스크 정보

주:

This feature is part of the Core UI front end. It is not supported on Platform Analytics dashboards or UI Builder pages, except to a limited extent when migrated in compatibility mode. To build Platform Analytics components, see Data visualizations in Platform Analytics or Filters in Platform Analytics.

This feature is deprecated, meaning it is in maintenance mode and is no longer being augmented or changed. Only security fixes to this feature will be addressed.

If you want to apply two breakdowns to an indicator, create a pivot widget with the breakdowns as the two axes of the pivot table. Heatmaps, which use a color gradient to highlight when both scores are high, are the only visualization available for pivot widgets.

주:

• Pivot widgets do not support the Follow Element function. Dashboard breakdowns cannot apply to these widgets.
• Heatmaps cannot display more than 1000 cells. If the total number of elements of the two breakdowns is above 1000, the heatmap does not appear.

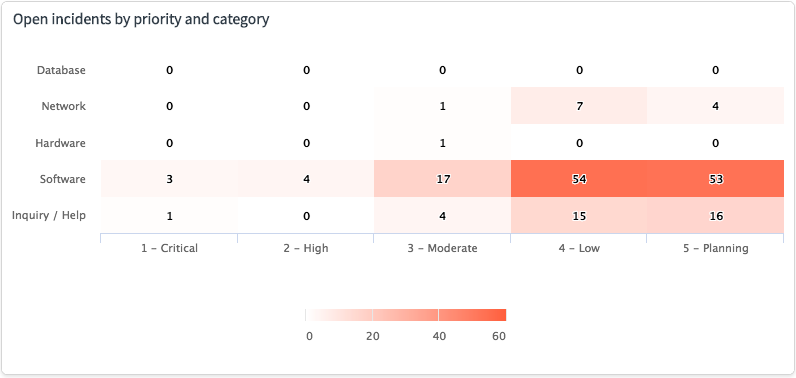

그림 1. Heatmap visualization - pivot widget

프로시저

1. Navigate to All > Performance Analytics > Widgets.
2. Click New.
3. In the Name field, give the widget a name that reflects the information being displayed.
4. In the Type field, select Pivot.
   If you change the value of Type after you fill in other fields, those fields are cleared.
5. In the Visualization field, select Heatmap.
6. In the Indicator field, select the indicator which you want to break down.
7. In the Breakdown field, select the breakdown to be the X-axis.
8. In the 2nd Breakdown field, select the breakdown to be the Y-axis.
9. 옵션: In the Display Settings, set the color scheme and whether to display data labels and the legend.
10. Click Submit.

다음에 수행할 작업

To view the widget, add it to a dashboard or a portal.
