Summary of Web service import sets security requirements
Web service import sets in ServiceNow leverage the same security mechanisms as SOAP Web Services, primarily using basic authentication and contextual security.A Web Service user must provide valid credentials and satisfy access control rules for the targeted table.In instances with high security settings, the user may also require thesoaprole to interact with the web service import set.
Show full answerShow less
Security Mechanisms
Basic Authentication: Requires a valid username and password for the Web Service user.
Contextual Security: Ensures the user meets access control rules of the queried table.
High Security Settings: May require assigning the soap role to the Web Service user.
Related Links and Management
When managing a mapped web service table, you can access related elements such as:
Import Sets: View import sets associated with the web service import set.
Transform Maps: Review transform maps tied to the import set for data transformation.
Transform History: Track the history of transformations applied.
Edit Web Service: Modify web service configurations directly.
Practical Example
The documentation includes an example demonstrating SOAP interaction with a web service import set named Notification. It shows:
Sample WSDL defining the structure and operations of the web service.
SOAP request and response envelopes illustrating the message format.
A Perl script example using the SOAP::Lite package to invoke the insert method, authenticating as the itil user, and creating an incident record.
Console output from the Perl script confirming the inserted incident details.
A resulting row created in the import set table Notification (impnotification) showing the integration outcome.
What This Enables for ServiceNow Customers
ServiceNow customers can securely integrate external systems via SOAP web services to import data into their ServiceNow instance using import sets. By applying proper authentication and access controls, customers ensure secure data ingestion. The provided sample artifacts and script can be adapted to implement and test SOAP-based data imports efficiently, enabling automated incident creation or other record updates based on external inputs.
This capability is essential for customers requiring reliable, secure, and auditable data imports from external SOAP services into ServiceNow tables.
Web Service Import Sets use the same security mechanisms as SOAP Web
Services.
Basic authentication requires a Web Service user provide a valid user name and
password.
Contextual security requires a Web Service user meet the access control rule of the queried
table.
If your instance uses high security settings, the Web Service user may also need the
soap role.
Web service import sets related links
When displaying a mapped web service table, you have the following related links.
Import Sets — The import sets related to this web service import set.
Transform Maps — A list of transform maps related to this web service.
Transform History — The transformation history.
Edit Web Service — Edit the web service.

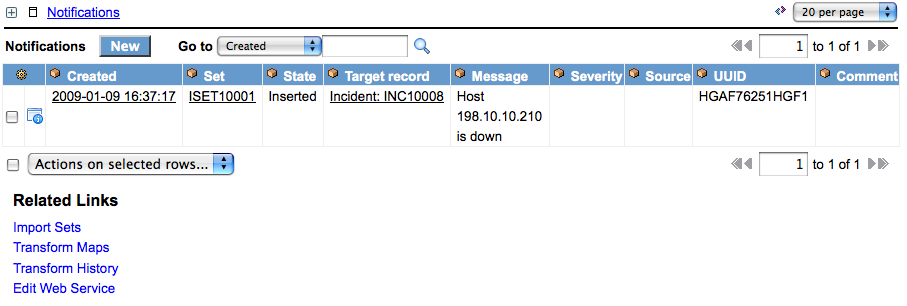

The following image shows a record that was inserted into the web service import set
Notification. The target record is the resulting creation or modification to the Incident table
record as a result of the transform.Figure 1. Soap Notification
Web service import sets example
This example demonstrates the WSDL, SOAP envelope and response, Perl invocation, and result of
a SOAP web service import.
<?xmlversion="1.0"encoding="UTF-8"?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"><SOAP-ENV:Body><insertResponse><sys_id>b54aafbfc0a8006f0058db95daa5b88d</sys_id><table>incident</table><display_name>number</display_name><display_value>INC10008</display_value><status>ignored</status><status_message>No field values changed</status_message></insertResponse></SOAP-ENV:Body></SOAP-ENV:Envelope>
Example Invocation using Perl
The following example script uses the Notification web service to create an
Incident as the itil user. It uses the Perl language
and the SOAP::Lite
package.
#!/usr/bin/perl -w
#use SOAP::Lite ( +trace => all, maptype => {} );use SOAP::Lite;
sub SOAP::Transport::HTTP::Client::get_basic_credentials{return'itil'=>'itil';// set basic auth credentials for the itil user
}
my$soap= SOAP::Lite->proxy('http://localhost:8080/glide/imp_notification.do?SOAP');
my$method= SOAP::Data->name('insert')->;attr({xmlns =>'http://www.service-now.com/'});
# insert into the web servicemy@params=( SOAP::Data->name(message =>'problem detected for database DB12DG'));push(@params, SOAP::Data->name(source =>'DB12DG'));push(@params, SOAP::Data->name(uuid =>'HGAF76251HGF2'));
my$result=$soap->call($method=>@params);
print_fault($result);//print any SOAP faults
print_result($result);//print any results
sub print_result {my($result)=@_;if($result->body&&$result->body->{'insertResponse'}){my%keyHash=%{$result->body->{'insertResponse'}};foreachmy$k(keys%keyHash){print"name=$k value=$keyHash{$k}\n";}}}
sub print_fault {my($result)=@_;if($result->fault){print"faultcode=".$result->fault->{'faultcode'}."\n";print"faultstring=".$result->fault->{'faultstring'}."\n";print"detail=".$result->fault->{'detail'}."\n";}}
The following is the result printed by the Perl script on the
console.
