Integrate with Docusign at Organization level

Integrating your Software Asset Management application with the Docusign service at the organization level enables you to track your software subscriptions and envelope consumption data.

Note:

Integration with Docusign at the organization level is done using the Data feed API, so the user's last activities aren’t tracked as part of this integration.

For more information about the Docusign service, see the DocuSign Developer site.

Important:

Minimize security risks and protect information by granting access only to the necessary user or API permissions.

Table 1. Minimal user permissions

Process	Required user role in the Docusign application	Authentication scopes
Download subscriptions	admin	No scopes
Download consumption	admin	No scopes

This process is applicable for Yokohama patch 10, Software Asset Management - SaaS License Management (sn_sam_saas_int) 15.0.19, and Software Asset Management (sn_itam_samp) 2.1.0 version onwards.

Register a Docusign application

Register a Docusign application through the Docusign admin portal.

Before you begin

Docusign Role required: admin

Procedure

1. Log in to your Docusign demo (non-production) account.
   You can use any subaccount for logging in that is later promoted to the corresponding production account.
2. Go to the Admin tab.
   • If you already have an API integration key from a previous integration ready for use in production, skip to step 15.
   • If you don't have your API integration key saved, you must generate a new one.

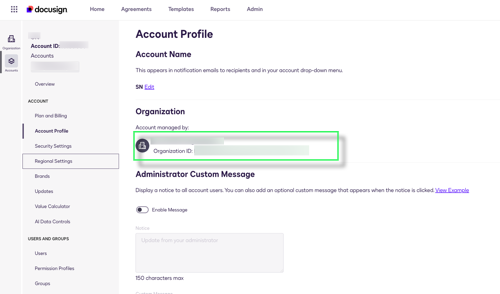

3. On the side navigation pane, select Account Profile and copy the Organization ID to secure it for later use.
4. Navigate to INTEGRATIONS > Apps and Keys.
5. In the Apps and Integration Keys section, select Add App and Integration Key.
6. On the Add Integration Key form, enter a unique name for your application in the App Name field and select CREATE APP.
7. On the profile page of your application, select Third-party integration key in the Integration Type field.
8. Copy the value of the Integration Key and secure it for later use.
   Important:

   You must request the Docusign support team for enabling the Data feed API on the integration key that you’re generating. If you’re using an Enterprise Pro plan, the Data feed API is free for you with organization management. If you’re using a low-tier plan, you can opt for organization management as an add-on. For further information, contact the Docusign support team.
9. Select Save.
10. In the Apps and Integration Keys section, locate the application that you just created in the App Name list.
11. Select Actions > Select Go-Live account.
    A Docusign login window pops up prompting you to enter the credentials for your Docusign account.
12. Enter your Docusign credentials.
13. Select a production account on the window that pops up prompting you to choose a production account to which you want to promote your integration key.
    The Go Live Status field changes to Pending approval. For a successful Go-Live review, your app must meet the requirements for Go-Live for each API that it uses. For more information on the Go-Live review stages, see Docusign documentation.
14. After the integration is approved, the Go Live Status changes to View in production.
15. Log in to your Docusign production account and verify that the same integration key has been promoted to the production account.

Generate RSA keypair for Docusign integration

Generate RSA keys to integrate the Docusign application with your ServiceNow instance.

Before you begin

Docusign requirements:

• Docusign account
• Docusign app configured to integrate with ServiceNow
• Role required: Docusign administrator

About this task

The integration of Docusign at the organization level enables access to all subaccounts using a single integration key generated in any one subaccount.

Procedure

1. Log in to your Docusign production content account.
2. Go to the Admin tab.
3. Navigate to INTEGRATIONS > Apps and Keys.
4. Next to your application, select Actions > Edit.
5. Select Generate RSA and save the Key Pair ID, Public Key, and Private Key for later use.

Generate a Java Key Store certificate

Generate a Java Key Store (JKS) certificate for the JSON Web Token (JWT) authentication of your Docusign integration profile.

Before you begin

Role required: admin

Procedure

1. Open a text editor for code, such as Sublime Text, and create a file.
2. Paste the Private key that you had generated from your Docusign integrator app.

   For more information, see Generate RSA keypair for Docusign integration.

   Note:

   Make sure to include both the beginning and ending of the private key.
3. Save the file with the .key extension.
   For example, privatekey.key.
4. Open the command line interface (CLI) and navigate to the directory where you saved the file with the .key extension.
5. Create a CA signed certificate using your private key by executing the command:

   openssl req -new -x509 -key <file-name>.key -out <certificate-name>.pem -days 1095

   You're prompted to provide details such as country name and province name.
6. Enter the required details.
7. Create a PKCS 12 file using your private key and CA signed certificate by executing the command:

   openssl pkcs12 -export -in <certificate-name>.pem -inkey <file-name>.key -certfile <certificate-name>.pem -out <PKCS-12-file-name>.p12

   You're prompted to provide a password for the file.
8. Enter the export password or the source keystore password.
9. Create the JKS file by executing this command:

   keytool -importkeystore -srckeystore <PKCS-12-file-name>.p12 -srcstoretype pkcs12 -destkeystore <JKS-certificate-filename>.jks -deststoretype JKS

   You're prompted to provide a password for the JKS file.
10. Provide the same password for the destination and source keystore passwords.

Create a Docusign integration profile at Organization level

Create an integration profile to track software subscriptions and optimize licensing for the Docusign service.

Before you begin

To create a Docusign integration profile, request the Software Asset Management - SaaS License Management plugin (sn_sam_saas_int) from the ServiceNow Store.

Role required: sam_integrator

About this task

An organization level integration profile uses the Docusign Data Feed API that retrieves detailed subscription and consumption data across an entire organization. The Data Feed API aggregates data from all subaccounts under an organization, offering a centralized view of envelope activity and usage.

How Data feeds work:

• Data feeds are updated nightly based on the site the accounts are in.
• Data for each account is processed every seven days.
• If an organization has multiple accounts, each account is processed on a different weekday. The system randomly selects a few accounts to process each day, so that data is processed daily but for different accounts. For example, Accounts 1 and 2 on Monday, Accounts 3, 4, and 5 on Tuesday, and so on.

Even if the integration job runs on the same day the envelopes are sent, the data feeds for those envelopes may not be available. After the data feeds are generated, they are included in the API response. The scheduled job then processes those envelopes during its next run.

If you're using Software Asset Workspace, the option to create the Docusign integration profile in Core UI is inactive.

Procedure

1. Navigate to the integration profile.

   Interface	Action
   Core UI	Navigate to All > Software Asset > SaaS License > Direct Integration Profiles. Select New. Select DocuSign Integration Profile.
   Software Asset Workspace	Navigate to License operations > User Subscriptions > Direct integration profiles. Select New. Select DocuSign from the drop-down list. Select Continue.

2. On the form, fill in the fields.

   Table 2. Integration Profile form

   Field	Description
   Display name	Name of the integration profile. For example, DocuSign Integration
   Integration type	The default value is set to Organization Level.
   Contract start date	The date on which the contract agreement became effective. This date isn't the same as the date when your Docusign account was created.
   Profile type	Type of integration profile. This value is automatically set to DocuSign Subscription.
   Organization Id	The organization ID to which this account belongs. You can find this value in your Docusign account on the Admin tab. Navigate to Account Profile and copy the Organization ID.
   Renewal period (months)	The frequency at which envelope consumption gets renewed. For example, if you enter a renewal period of three months, then the consumption data is renewed every three months. The renewal period governs the consumption cycle and is separate from the overall contract term.

3. Review the required user roles or API permissions specified in the Process configuration field for each process to reduce security risks and optimize SaaS licenses.
   Note:

   For more information about the required roles and scopes, see the Minimal user permissions table.

   The Download subscriptions check box is selected by default and you can't clear it.

   The Download Consumption check box is selected by default. You can check the detailed consumption data in the Docusign consumption [samp_docusign_consumption] table. The data in this consumption table is in UTC time zone.

4. Select Submit.
   A draft integration profile is created.

   The Connection & Credential field appears and is automatically set to sn_sam_saas_int.Docusign_OAuth_with_JWT.

5. Open the connection & credential aliases record by selecting the preview icon () next to the Connection & Credential field and then selecting Open Record in the record preview.
6. On the Connection & Credential Aliases form, select the Create New Connection & Credential related link.
7. In the Create Connection and Credential dialog box, fill in the fields.

   Table 3. Create Connection and Credential dialog box

   Field	Description
   Connection Information
   Connection Name	Name of the connection.
   Connection URL	This field is automatically set to https://api.docusign.net.
   Credential Information
   Integration Key	The API integration key that you generated in the Register a Docusign application procedure.
   Key Pair ID	The key pair ID of the private key that you generated in the Generate RSA keypair for Docusign integration procedure.
   Audience URI	Enter account.docusign.com as the URI.
   Keystore Password	Password associated with the uploaded JKS file that you created in the Generate a Java Key Store certificate procedure.

8. Locate the JKS file on your device by selecting Keystore.

   For more information on creating the JKS file, see Generate a Java Key Store certificate.

9. Select Create and Get OAuth Token.
10. On the integration profile form, select Validate Connection to verify the connection and credential details of this integration.
    Validating the connection verifies the Download Subscriptions APIs.

What to do next

After the integration connects, your ServiceNow instance automatically creates software models and software subscriptions that are refreshed daily.

After creating an integration profile, view information about the profile in the Software Asset Workspace by navigating to License operations > User subscription > Direct integration profiles. You can select an integration profile to view the following related lists. If the following related lists aren't visible for an integration profile in the default view, you can select the custom integration view from the Details tab:

• Software Models
• Scheduled Jobs
• Scheduled Job Results
• Unrecognized Subscription Identifiers
• Software Subscriptions

If you want to set up multiple integration profiles with unique connections, create child aliases to manage different configurations and settings for each integration profile. For more information, see Create a child alias to set up multiple integration profiles.

Create software entitlements for the automatically generated software models to track used software against owned software.

• For more information on creating software entitlements in the Software Asset Management Core UI, see Create entitlements in Software Asset Management classic.
• For more information on creating software entitlements in the Software Asset Workspace, see Create entitlements in workspace.
• For more information on creating software entitlements using the Software Asset Management Playbook, see Create entitlements using the guided walk-through.

Reconciliation also runs on your subscriptions as a scheduled job or on-demand. You can view your reconciliation results in the License Workbench (Software Asset Management classic application) or the License usage view (Software Asset Workspace). Use these results to determine your license compliance position and to remediate any non-compliance.

• For more information on running reconciliation in the Software Asset Management classic application, see Run software reconciliation in Software Asset Management classic.
• For more information on running reconciliation in the Software Asset Workspace, see Run software reconciliation in the workspace.
